Air Bag
Air Bag

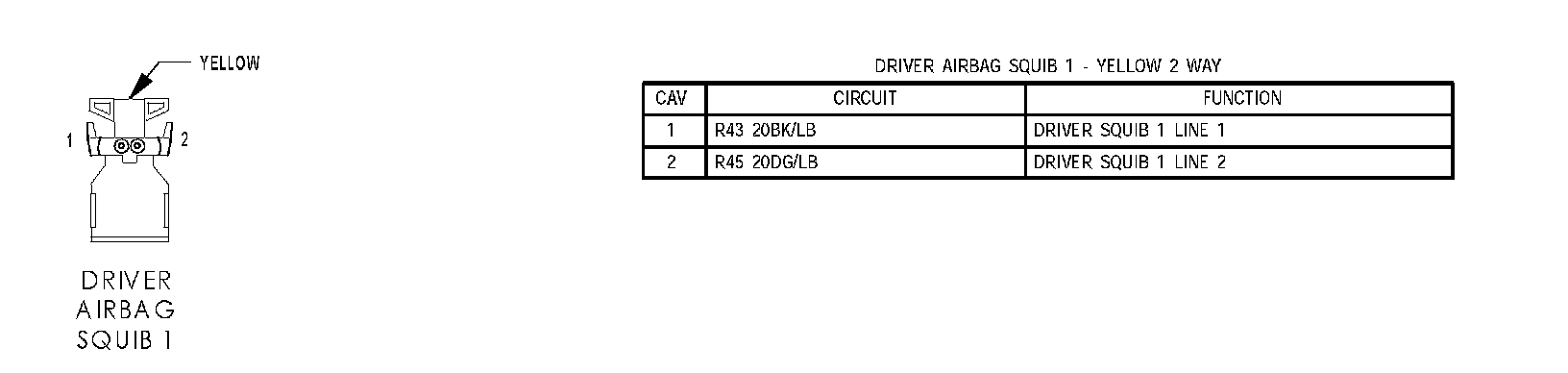

Driver Airbag Squib 1:
Left Seat Airbag Squib (LHD):
Left Seat Airbag Squib (RHD):

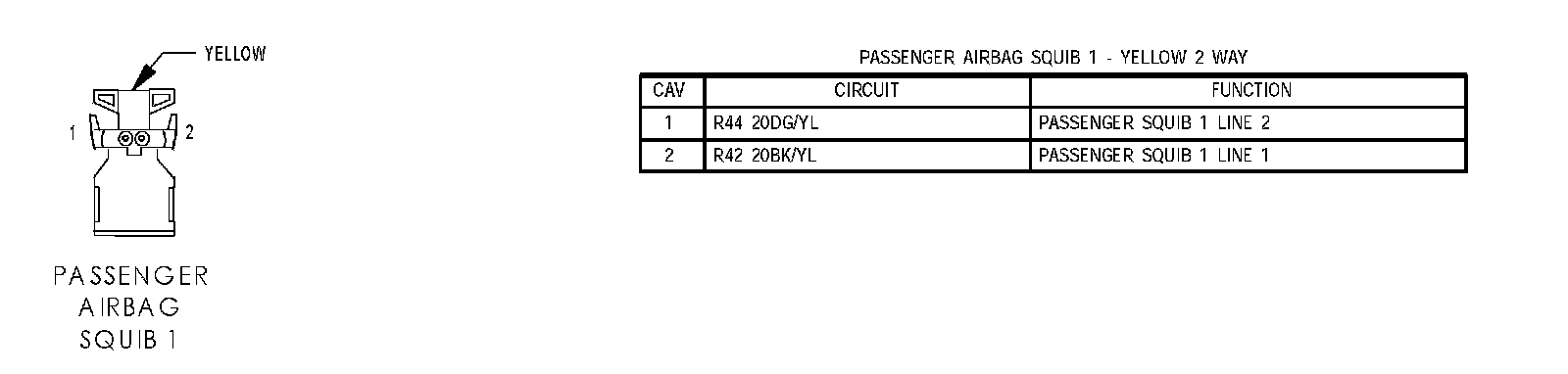

Passenger Airbag Squib 1:

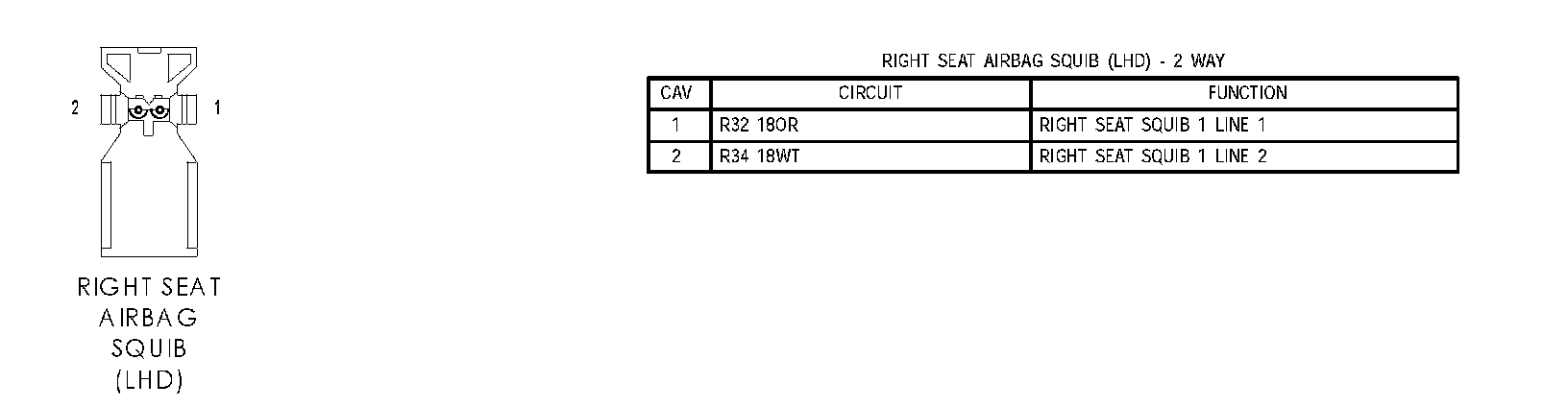

Right Seat Airbag Squib (LHD):

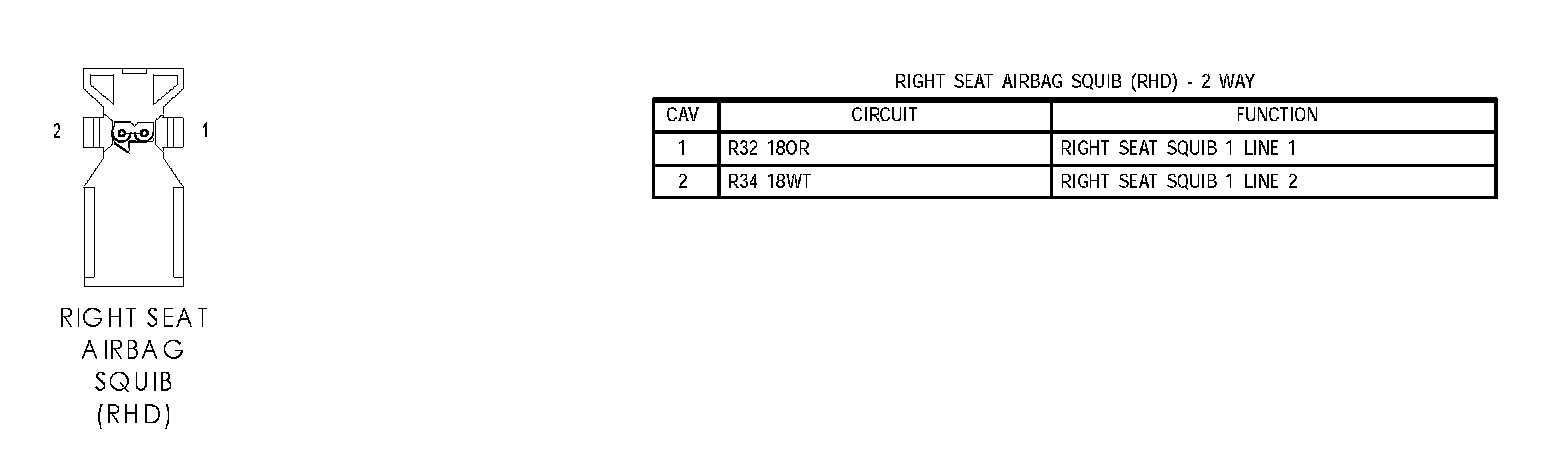

Right Seat Airbag Squib (RHD):
