Ignition Coil

REMOVAL




1. Disconnect negative battery cable.
2. Remove the intake manifold.
3. Prior to removing the ignition coils, spray compressed air around the coil area and spark plug.

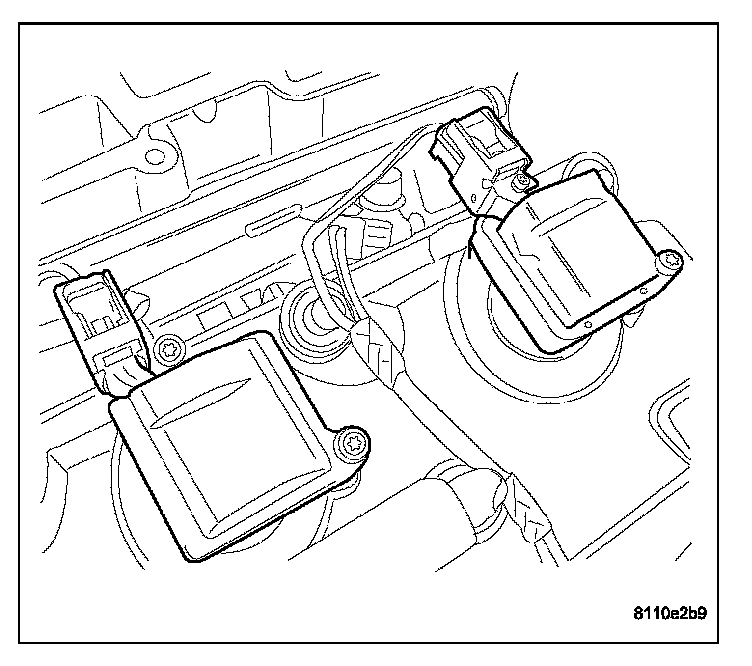

4. Remove electrical connector from ignition coil.
5. Remove 2 fasteners from ignition coil assembly.

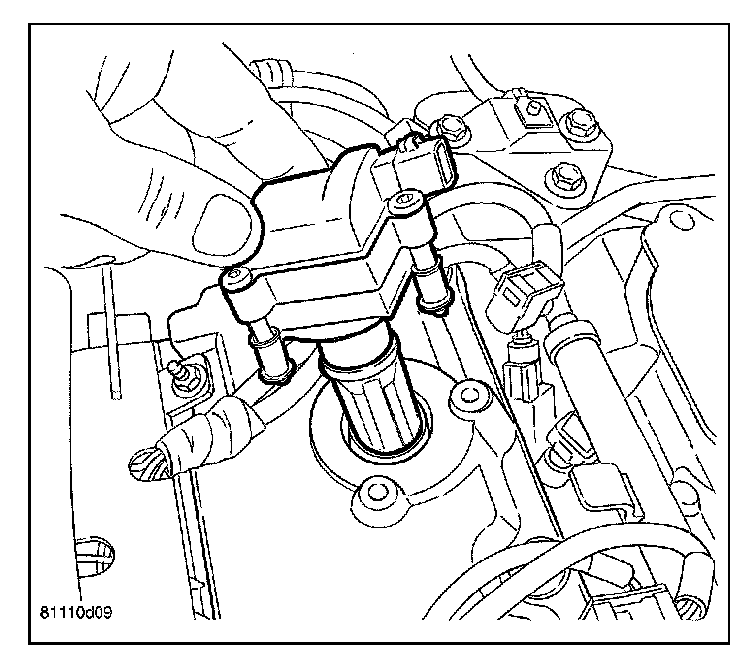

6. Remove ignition coil assembly.

INSTALLATION

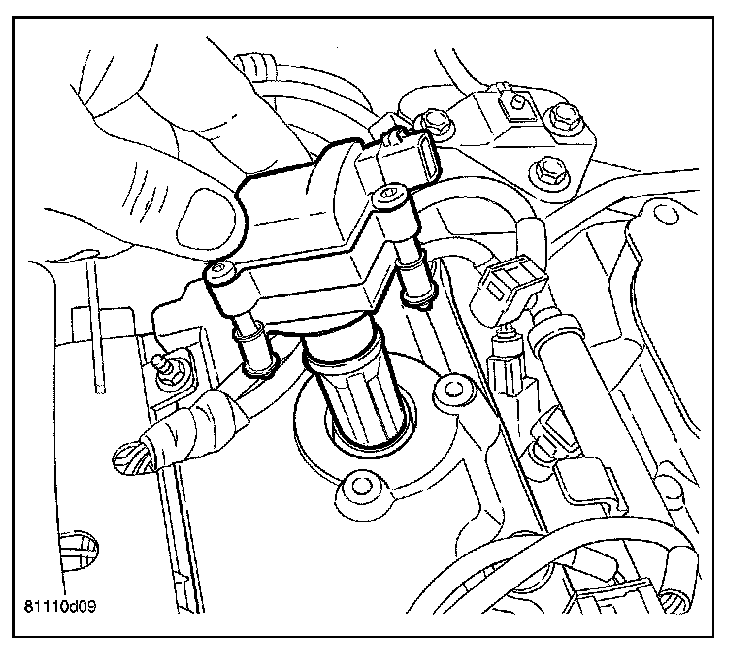

1. Install ignition coil assembly to spark plug.
2. Install coil screws and tighten: 2.7L engine to 6.2 N.m (55 in.lbs.).

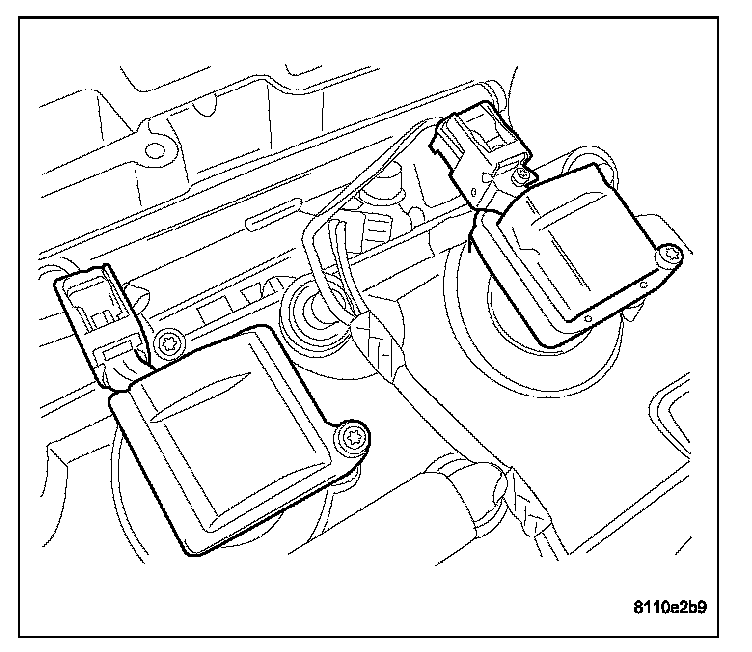

3. Connect the electrical connector and lock.




4. Install the intake manifold.
5. Connect negative battery cable.
