Service Procedure

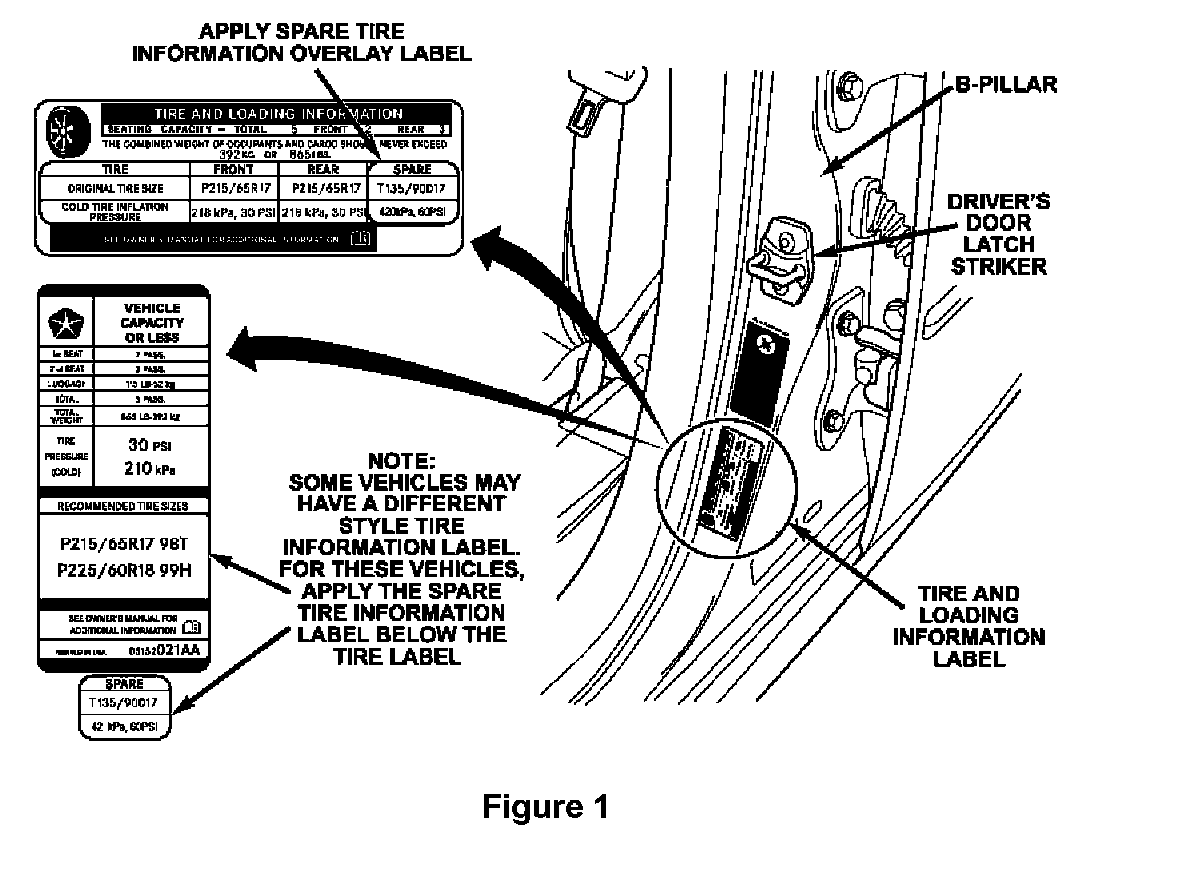

1. Open the driver's door and locate the Tire and Loading Information Label on the driver's door opening B-Pillar (Figure 1).

2. Clean the existing label by wiping it with a household cleaner to remove any dirt, oil residue or grease.

3. Remove the overlay label from its paper backing and carefully install it on the tire and loading information label covering the original spare tire information (Figure 1) Firmly press and smooth the label to the surface of the existing label to ensure good adhesion.
