Using Software Update CD to Retrieve the Flash File

NOTE:
Before flashing this module, make sure the StarSCAN(R) is operating at 5.02 or later. The flash file will be available on the NEXT StarSCAN(R) update CD received AFTER CD 5.04.

NOTE:
If this flash process is interrupted/aborted, the flash should be restarted.

NOTE:
For detailed information on the operation of the StarSCAN(R), refer to the Quick Reference documentation provided in the StarSCAN(R) documentation kit. In addition, more recent information may also be available at the website. Look under "Training Aids" and also under "Download Center > Frequently Asked Questions" for more help.

1. Connect the CH9404 StarSCAN(R) vehicle cable to the StarSCAN(R) and the vehicle.

2. Power ON the StarSCAN(R).

3. Retrieve the old MSMD part number. Using the StarSCAN(R) at the "Home" screen:

a. Select "ECU View"

b. Touch the screen to highlight the MSMD in the list of modules.

c. Record the "Part Number", displayed on the "ECU Overview" screen, for later reference.

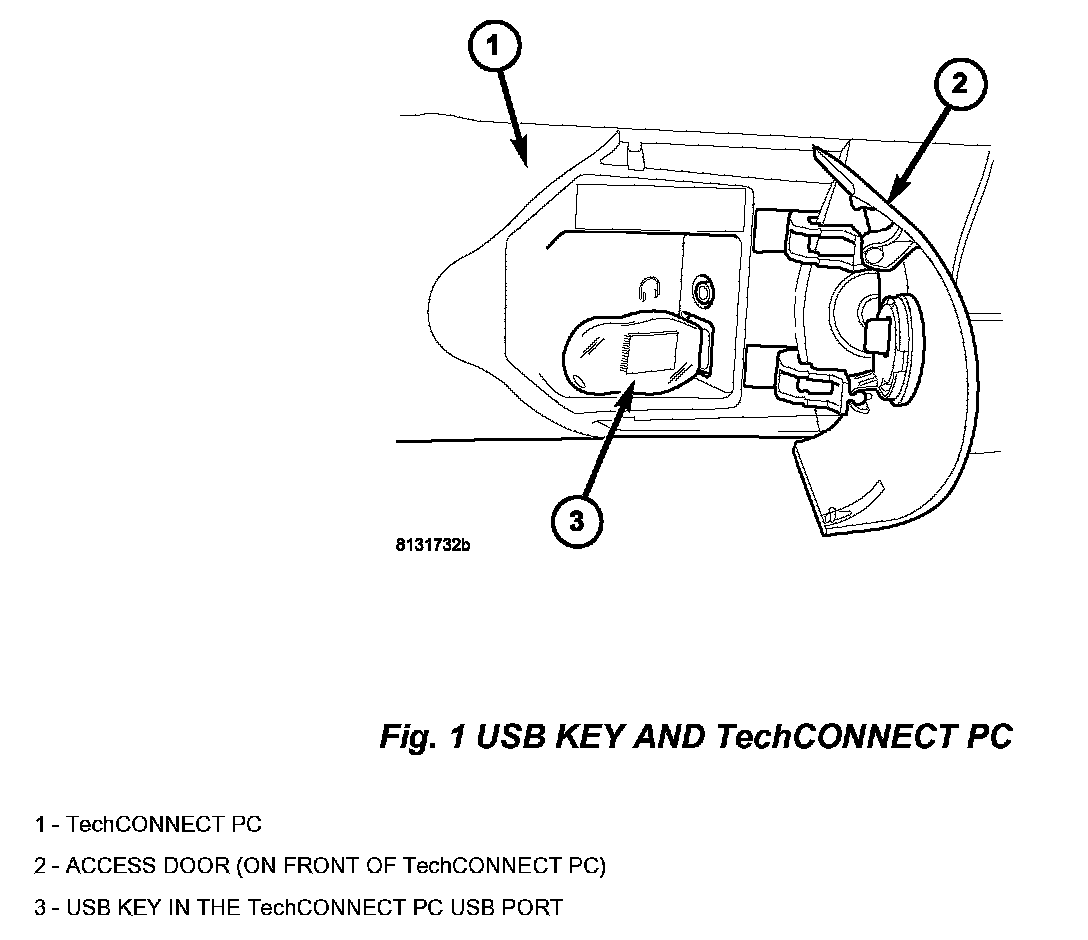

4. Insert the USB Key, into the USB port on the TechCONNECT or equivalent PC, (Fig. 1).

5. Insert the StarSCAN(R) Software Update CD into the TechCONNECT or equivalent PC. The StarSCAN(R) Software Update CD will start automatically.

a. Select "Controller Flash".

b. Follow the on screen instructions.

6. At the "Select the type of information you wish to enter." screen:

a. If the old "Part Number" was recorded in Step # 3, proceed to Step # 7.

b. If the old "Part Number" is not known, proceed to Step # 8.

7. Select "Enter part number".

a. Follow the on screen instructions. Enter the "Part Number" (use capital letters) recorded in Step # 3 when prompted to do so. Follow the on screen instructions. Select "Next" after each step. Select "Finish" after completing the last step.

b. Proceed to Step # 9.

8. Select "Enter YME Information".

a. Follow the on screen instructions. Select "Next" after each step. Select "Finish" after completing the last step.

b. Proceed to Step # 9.

9. Using the mouse highlight the appropriate "Calibration".

a. Select "Save to USB".

b. Follow the on screen instructions. Select "Next" # after each step. Select "Finish" after completing the last step.





10. With the StarSCAN(R) powered OFF, connect the USB Key and Gender Changer to the StarSCAN(R) USB port, (Fig. 2).

11. Open the hood, install a battery charger and verify that the charging rate provides approximately 13.5 volts.

12. Connect the StarSCAN(R) to the vehicle (if not already connected).

13. Power ON the StarSCAN(R).

14. Download the file from the USB key to the StarSCAN(R). Using the StarSCAN(R) at the "Home" screen:

a. Select "Flash Download".

b. Select "Use USB device".

c. Follow the on screen instructions. Select "Next" # after each step. Select "Finish" after completing the last step.

d. At the "Flash File List" screen, highlight the appropriate MSMD "Calibration".

e. Select "Download to Scantool".

f. When the download is complete, select "Close".

15. Download the file from the StarSCAN� to the vehicle. Using the StarSCAN(R) at the "Home" screen:

a. Select "ECU View".

b. Browse the list of ECUs using the scroll arrows. Highlight the MSMD.

c. Select "More Options".

d. Select "ECU Flash".

e. Highlight the appropriate MSMD "Calibration" from the list.

f. Select "Update Controller".

g. When update is completed, select "OK".

NOTE:
Due to the MSMD programming procedure, a DTC may be set in other modules (TCM, BCM, MIC, SKREEM, etc.) within the vehicle, if so equipped. Some DTC's may cause the MIL to illuminate. From the "Home" screen select "System View". Then select "All DTCs". Press "Clear All Stored DTCs" if there are any DTCs shown on the list.

NOTE:
After the MSMD flash is completed, the driver seat standardization routine must be performed. This routine moves driver seat cushion full forward.
