Sunroof Assembly

WARNING: THE EXCESSIVE FORCE LIMITATION (EFL) FEATURE MUST BE CALIBRATED ANY TIME A SUNROOF MOTOR/MODULE IS REPLACED WITH A NEW COMPONENT. FAILURE TO PERFORM THIS PROCEDURE COULD RESULT IN VEHICLE DAMAGE AND/OR PERSONAL INJURY.

REMOVAL






1. Move glass panel to the fully closed position.
2. Disconnect and isolate the battery negative cable.
3. Remove headliner.

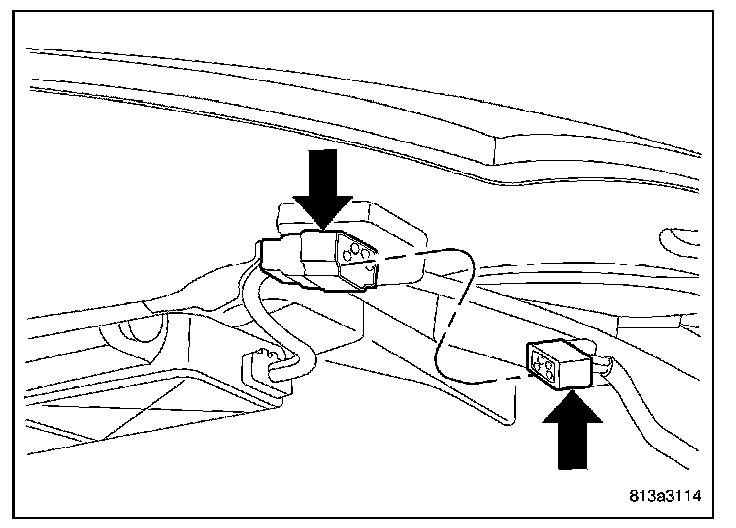

4. Disconnect the sunroof wire harness electrical connector.






5. Disconnect the four drain tubes (1) from the sunroof housing.






6. Remove the eight fasteners (3) attaching sunroof assembly.
7. With the aid of a helper, support the sunroof and remove the fasteners (2) attaching sunroof assembly (1) to roof panel.
8. Remove the sunroof (1) from vehicle.

INSTALLATION

WARNING: The excessive force limitation (EFL) feature must be calibrated any time a sunroof motor/module is replaced with a new component. Failure to perform this procedure could result in vehicle damage and/or personal injury.






1. Verify that glass panel is loose and slightly retracted.
2. Raise sunroof module assembly (1) and guide it carefully into position.





3. While supporting the sunroof assembly start the 12 attaching screws and tighten the attaching screws to 6 N-m (53 in. lbs.) using the sequence shown.






4. Connect the electrical connector.






5. Connect the drain tubes to the sunroof (1).
6. Adjust the sunroof glass.
7. Connect battery negative cable.
8. Install the vehicle headliner.
9. Perform the sunroof position calibration.
10. Perform the Excessive Force Limitation (EFL) calibration.
11. Verify proper operation of the power sunroof system.
