Home >> Chrysler >> 2005 >> 300 V6-3.5L VIN G >> Repair and Diagnosis >> Diagrams >> Grounds >> Figure 30

Figure 30

Instrument Panel Left:

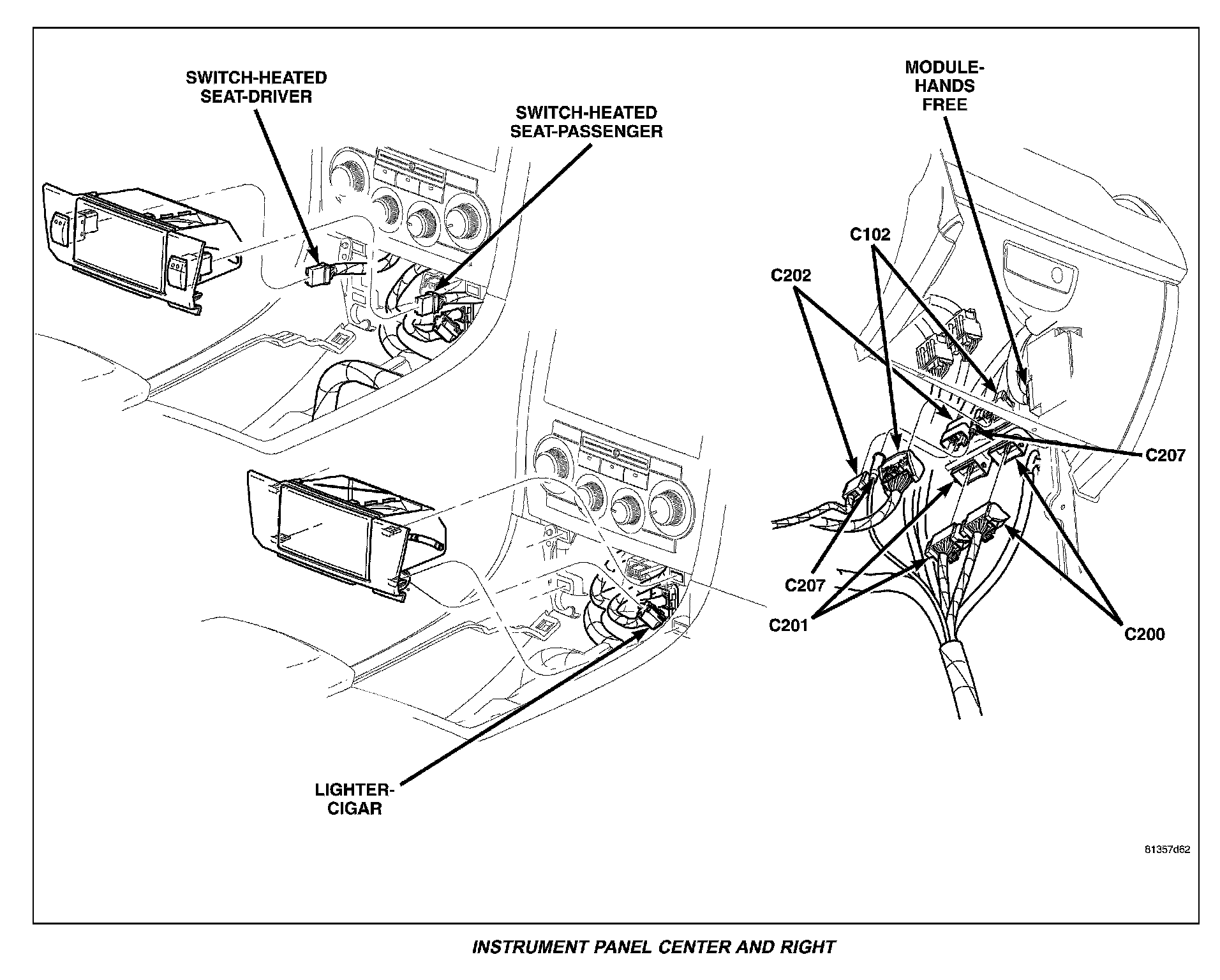

Instrument Panel Center And Right:
