Home >> Chrysler >> 2005 >> 300 V6-3.5L VIN G >> Repair and Diagnosis >> Locations >> Connector Locations >> Figure 33

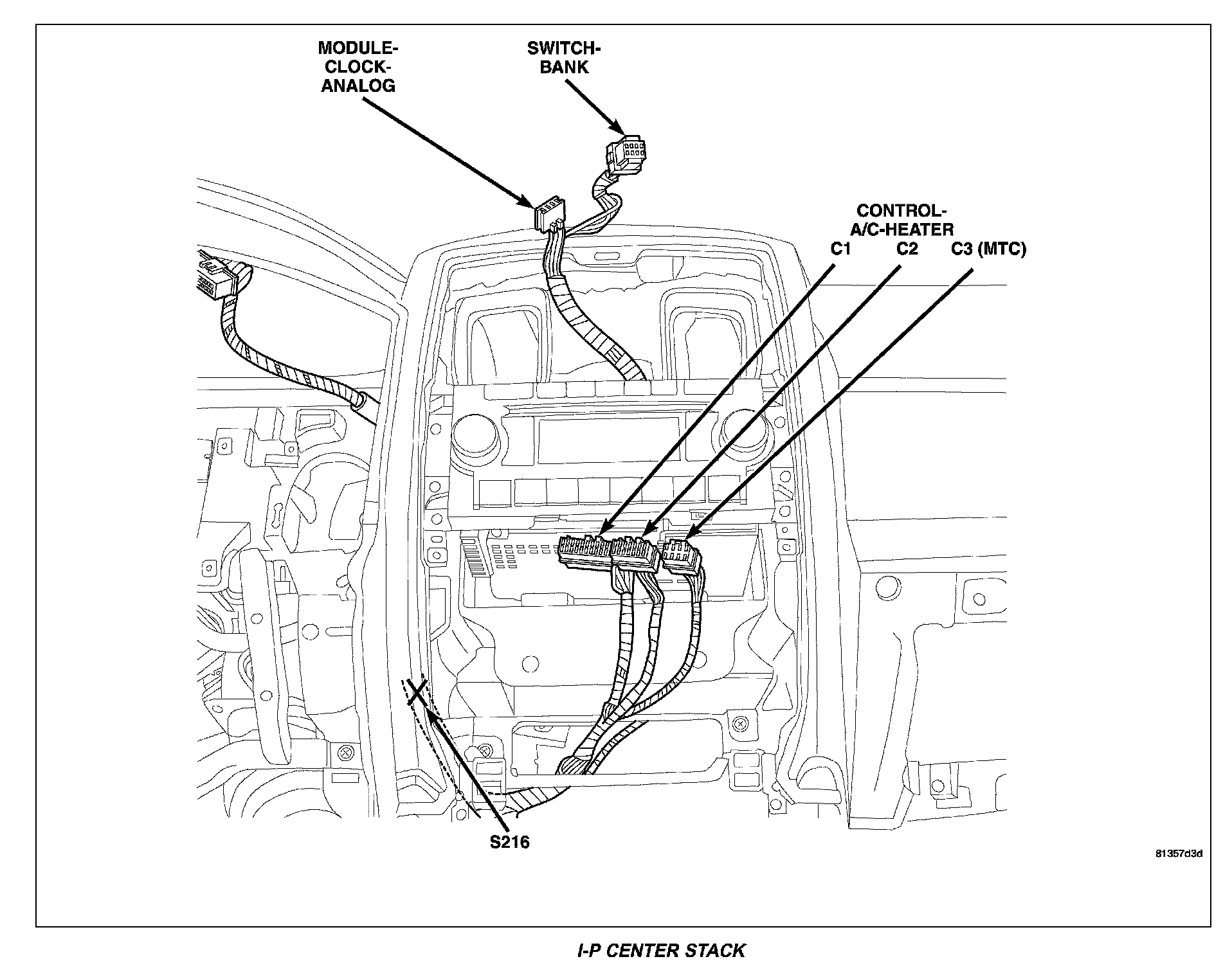

Figure 33

I-P Center Stack:
