Specifications
>>
Mechanical Specifications
>>
Engine
>>
Intake Manifold
Intake Manifold
Intake Manifold
- Lower
28 Nm (250 inch lbs.)
Intake Manifold
- Upper
12 Nm (105 inch lbs.)

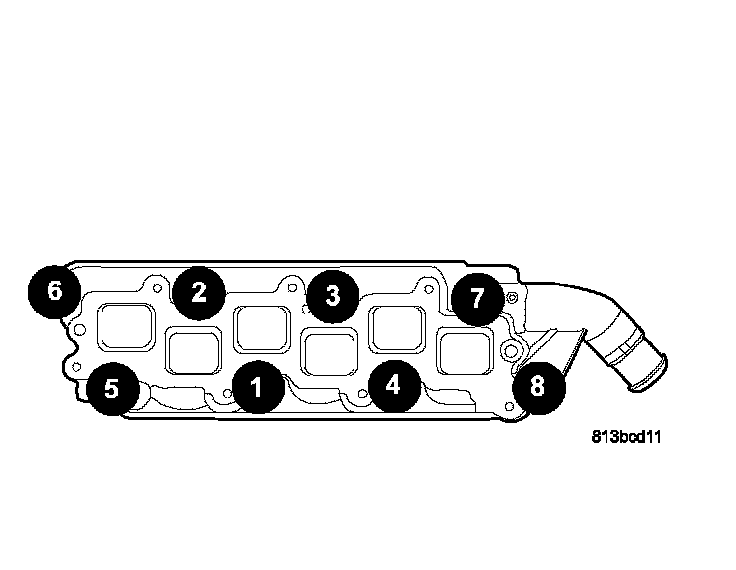

Starting in the center working outward in a cross sequence pattern
