Keyless Entry Module: Service and Repair

REMOVAL




1. Disconnect the negative battery cable.
2. Remove the Instrument Cluster.

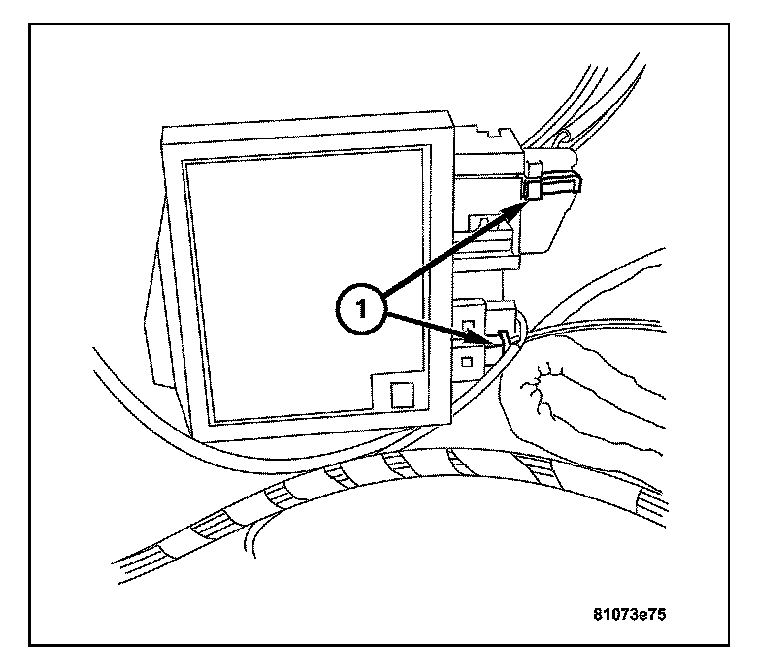

3. Disconnect the 2-pin CAN BUS harness connector (1) from the SKREEM module.
4. Disconnect the 2-pin harness connector for the sentry key antenna ring.
5. Disconnect the 18-pin harness connector (1) from the SKREEM module.
6. Press the retaining tabs apart.
7. Remove the SKREEM module from the base plate.

INSTALLATION




1. Install the SKREEM module to the base plate.
2. Connect the 18-pin harness connector and the 2-pin CAN BUS harness connector (1) to the SKREEM module.
3. Connect the 2-pin harness connector for the sentry key antenna ring.
4. Install the Instrument Cluster.
5. Connect the negative battery cable.
