Right Power Mirror Inoperative

RIGHT POWER MIRROR INOPERATIVE

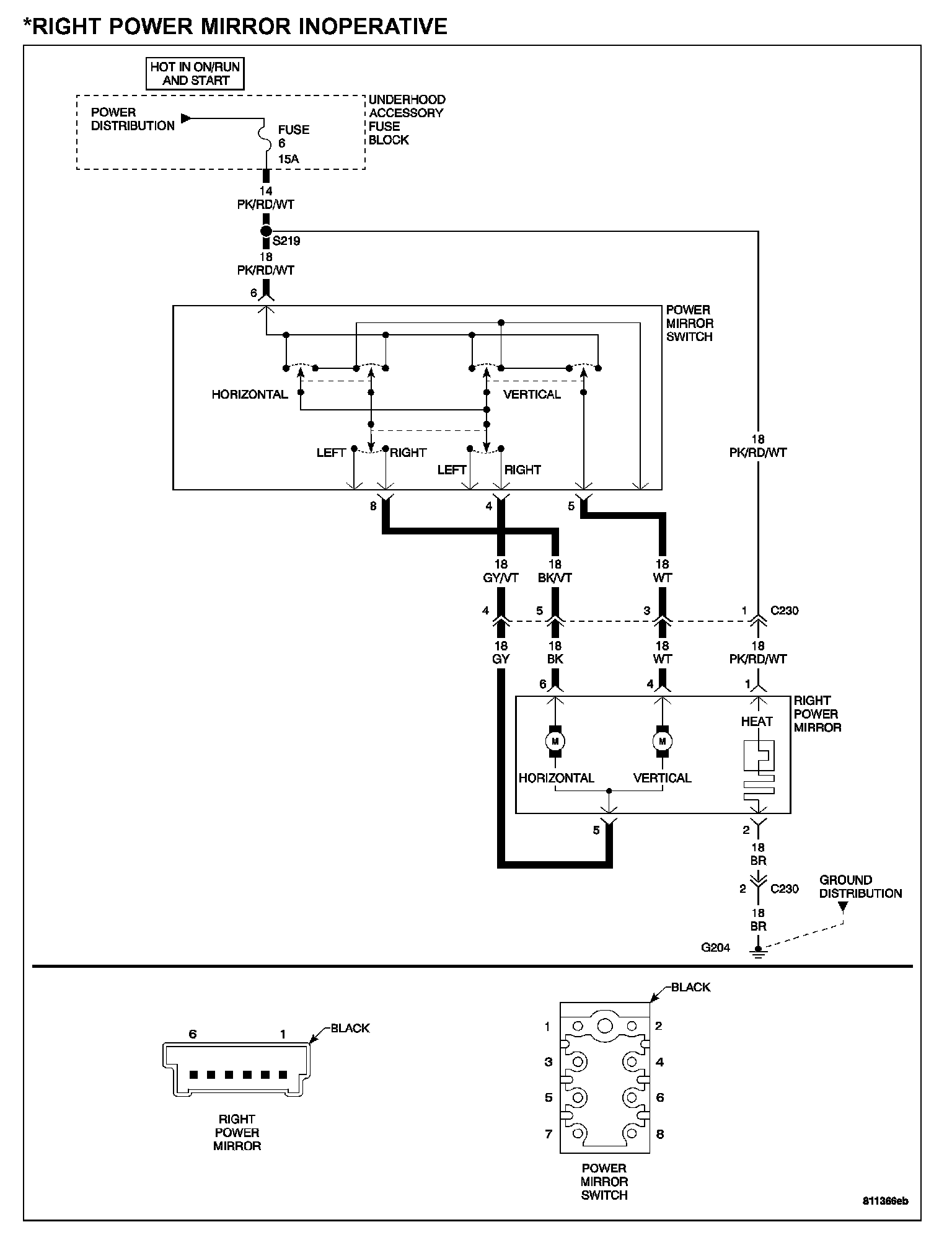

Right Power Mirror Inoperative:

POSSIBLE CAUSES
- Open right power mirror horizontal motor circuit
- Open right power mirror vertical motor circuit
- Right power mirror
- Power mirror switch

DIAGNOSTIC TEST

1. TEST THE RIGHT POWER MIRROR HORIZONTAL MOTOR




Turn the ignition off.
Disconnect the Power Mirror Switch harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Connect a jumper wire between cavity 4 and ground of the Power Mirror Switch harness connector.
Turn the ignition on.
Connect a jumper wire between cavity 6 and cavity 8 of the Power Mirror Switch harness connector.

Q: With the jumper wires connected, does the Right Power Mirror Horizontal Motor Run?

YES: Go To 2. Perform BODY VERIFICATION TEST. Body Verification Test
NO: Go to 3

2. TEST THE RIGHT POWER MIRROR VERTICAL MOTOR




With the ignition on.
With the jumper wire between cavity 4 and ground of the Power Mirror Switch harness connector still connected.
Disconnect jumper wire from cavity 8 and connect it to cavity 5 of the Power Mirror Switch harness connector.

Q: With the jumper wires connected, does the Right Power Mirror Vertical Motor Run?

YES: Replace the Power Mirror Switch. Perform BODY VERIFICATION TEST. Body Verification Test
NO: Go to 4

3. MEASURE RIGHT POWER MIRROR HORIZONTAL MOTOR CIRCUIT RESISTANCE




Turn the ignition off.
Disconnect all jumper wires.
Disconnect the Right Power Mirror pigtail harness connector.

NOTE:
- The Power Mirror pigtail harness connector can be accessed by removing the small square access panel located at the top front corner of the door panel.
- Check connectors - Clean/repair as necessary.

Connect a jumper wire between cavity 5 and cavity 6 of the Right Power Mirror pigtail harness connector.
Measure the resistance between cavity 4 and cavity 8 of the Power Mirror Switch harness connector.

Q: Is the resistance below 5.0 ohms?

YES: Replace the Right Power Mirror. Perform BODY VERIFICATION TEST. Body Verification Test
NO: Repair the Right Power Mirror Horizontal Motor circuit for an open. Perform BODY VERIFICATION TEST. Body Verification Test

4. MEASURE RIGHT POWER MIRROR VERTICAL MOTOR CIRCUIT RESISTANCE




Turn the ignition off.
Disconnect all jumper wires.
Disconnect the Right Power Mirror pigtail harness connector.

NOTE:
- The Power Mirror pigtail harness connector can be accessed by removing the small square access panel located at the top front corner of the door panel.
- Check connectors - Clean/repair as necessary.

Connect a jumper wire between cavity 5 and cavity 4 of the Right Power Mirror pigtail harness connector.
Measure the resistance between cavity 4 and cavity 5 of the Power Mirror Switch harness connector.

Q: Is the resistance below 5.0 ohms?

YES: Replace the Right Power Mirror. Perform BODY VERIFICATION TEST. Body Verification Test
NO: Repair the Right Power Mirror Vertical Motor circuit for an open. Perform BODY VERIFICATION TEST. Body Verification Test
