Rotation Relay (ZH27)
Rotation Relay (ZH27)

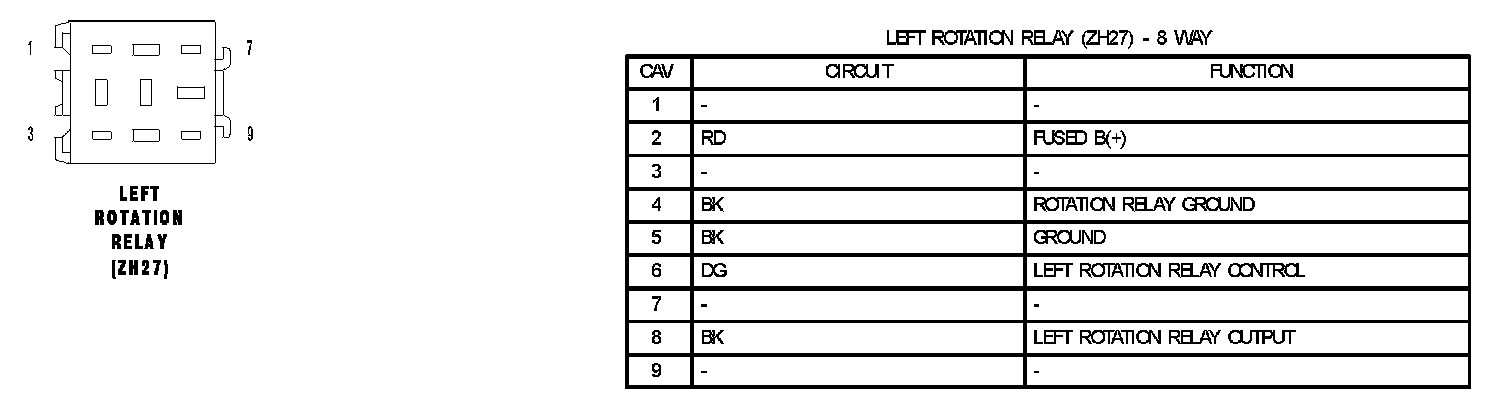

Left Rotation Relay (ZH27):

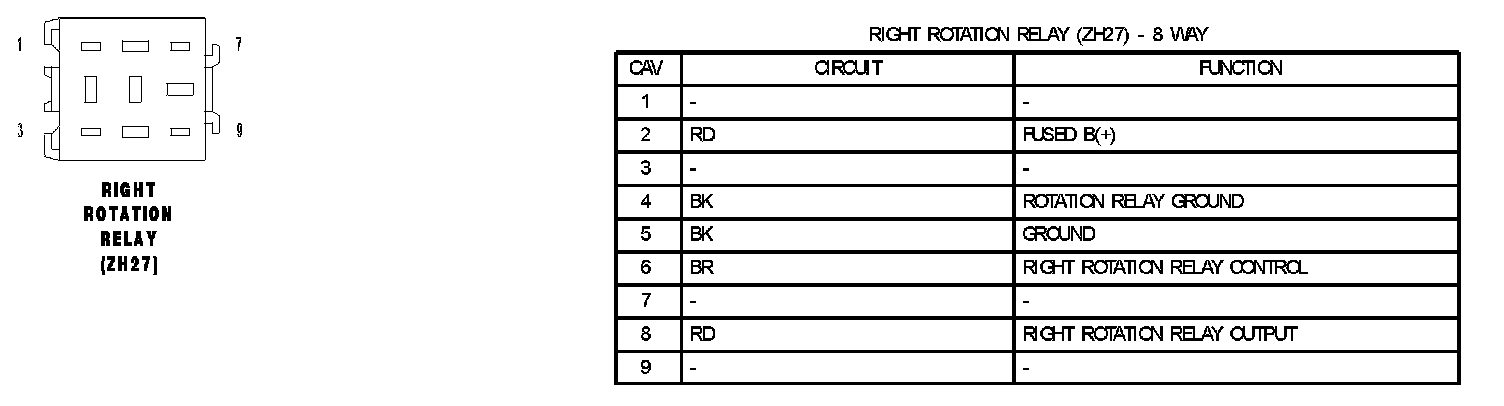

Right Rotation Relay (ZH27):
