Seat Back Cover

SEAT BACK COVER

REMOVAL

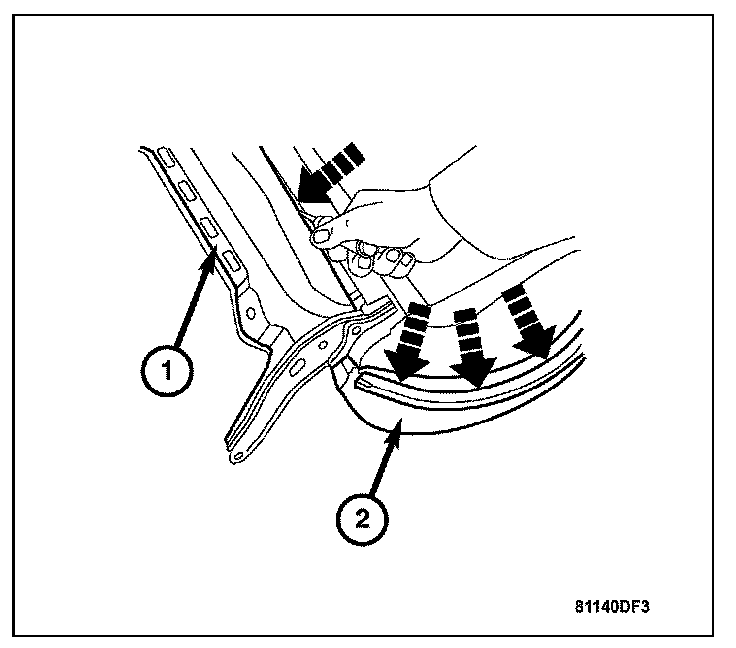

1. Remove the front seat back.




2. Lay the seat back (1) down on a suitable surface with the cover (2) down.

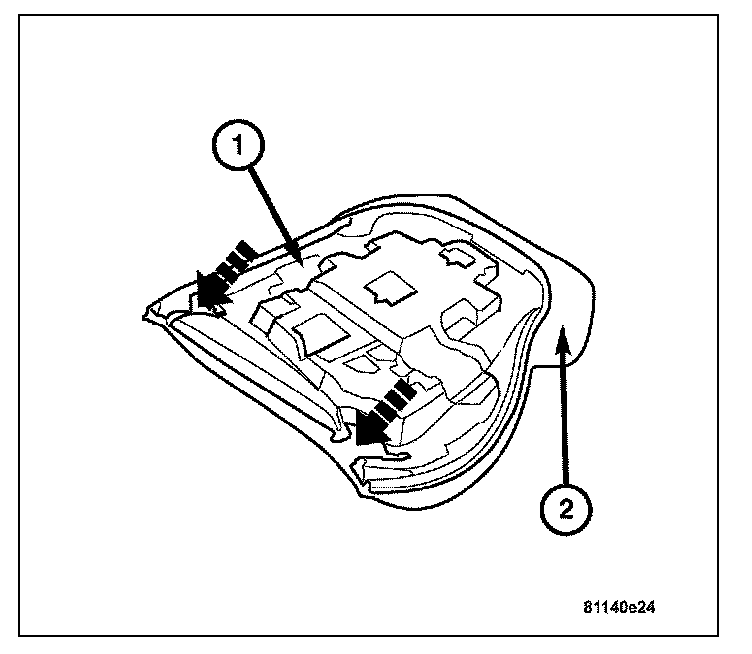

3. Unhook the cover (2) all the way around on the clip groove in the rear shell.

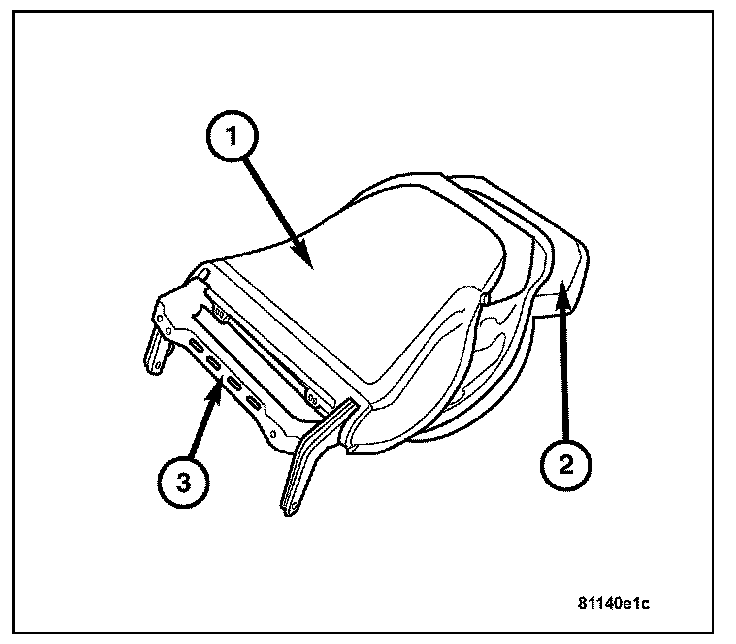

4. Remove seat back frame (3) from the foam rubber pad (2).




5. Remove the cover (2) from the Velcro(R) strip in area of seat back (1) hinge area.

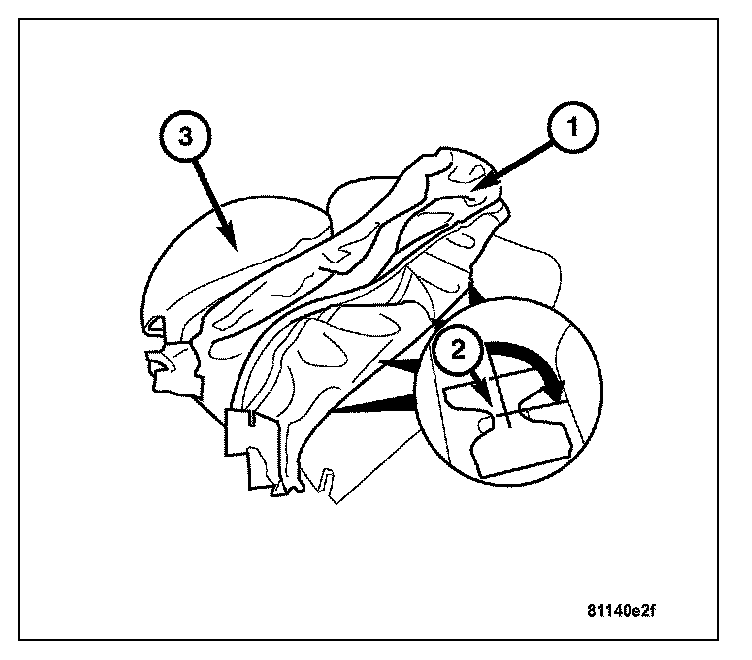

6. Pull the cover (1) over the foam rubber pad (3) in the upper area.

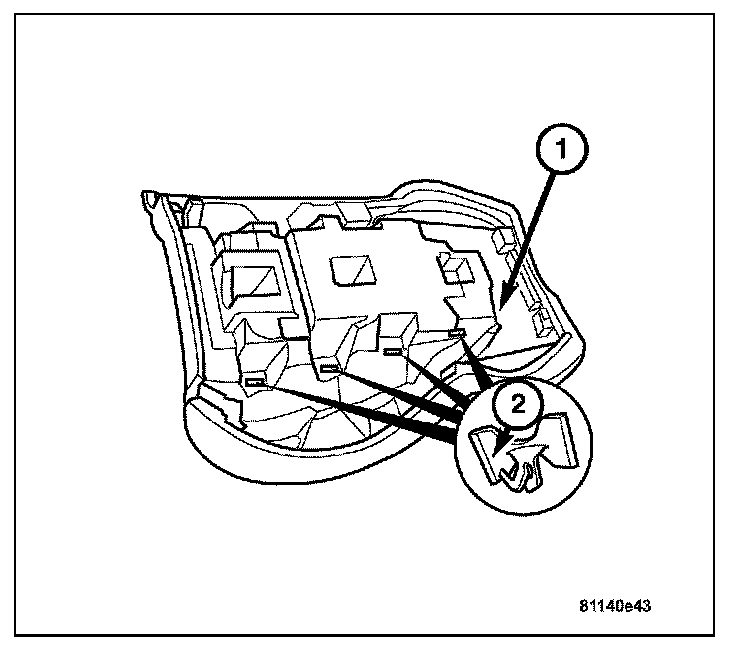

7. Remove the longitudinal retainers by turning the upholstery clips (2) 90 degrees.
8. Remove the cover (1) from the foam rubber pad (3).

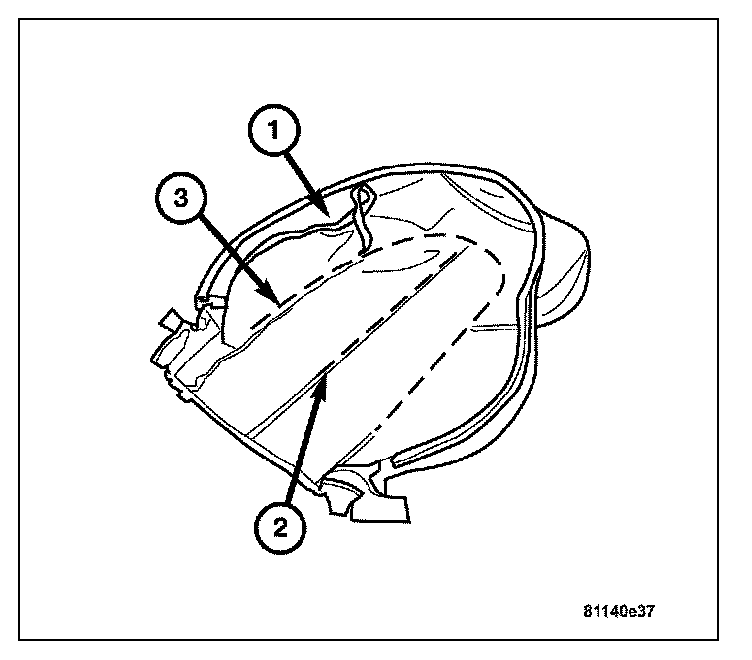

9. Pull the upholstery wires (2) out of the fabric sleeves (3) in the cover (1).




10. Remove the upholstery clips (2) on the rear of the foam rubber pad (1).

INSTALLATION




1. Insert the upholstery wires (2) into the fabric sleeves (3) in the cover (1).

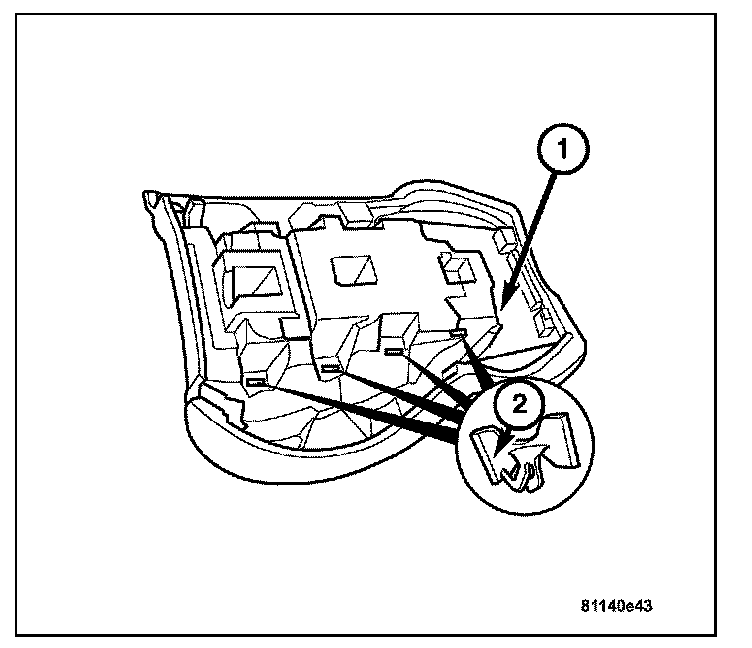

2. Attach the upholstery clips (2) to the rear of the foam rubber pad (1).




3. Fold over the cover (1) and position it on the front of the foam rubber pad (4).
4. Connect the upholstery clips (2) with the upholstery wires starting with the center upholstery wire (3).




5. Draw the cover (2) over the foam rubber pad (1).
6. Attach the cover to the Velcro(R) strip in the area of the seat back hinge area.




7. Position the seat back frame (3) on the foam rubber pad (2).

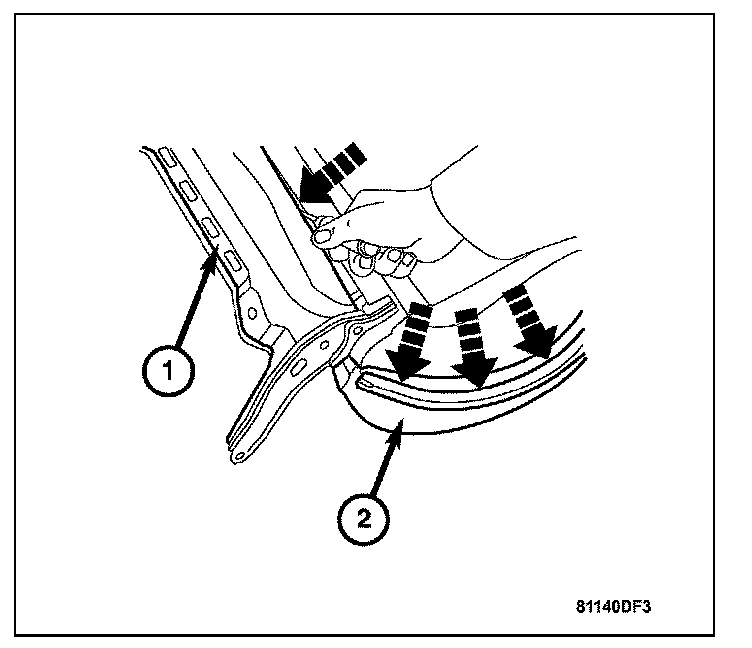

8. Hook in the cover (2) all the way around in the clip groove in the seat back shell and align.
9. Install the front seat back (1).
