Crossfire SRT-6 V6-3.2L SC VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antenna
Antenna

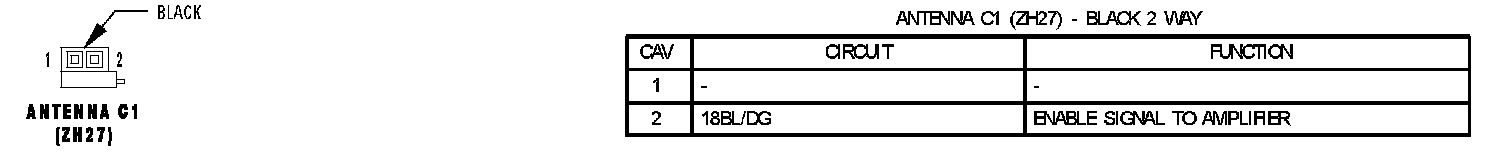

Antenna C1 [ZH27]:

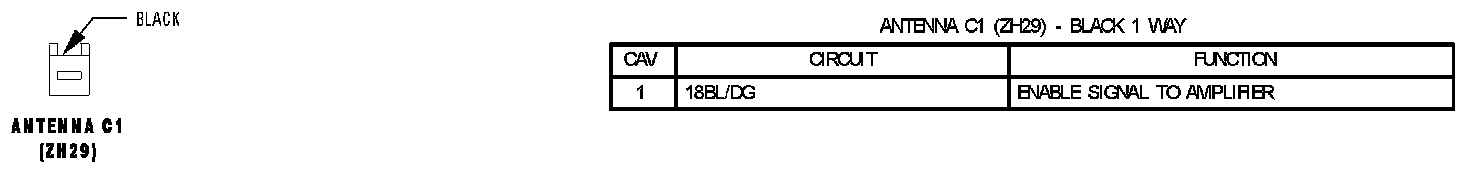

Antenna C1 [ZH29]:

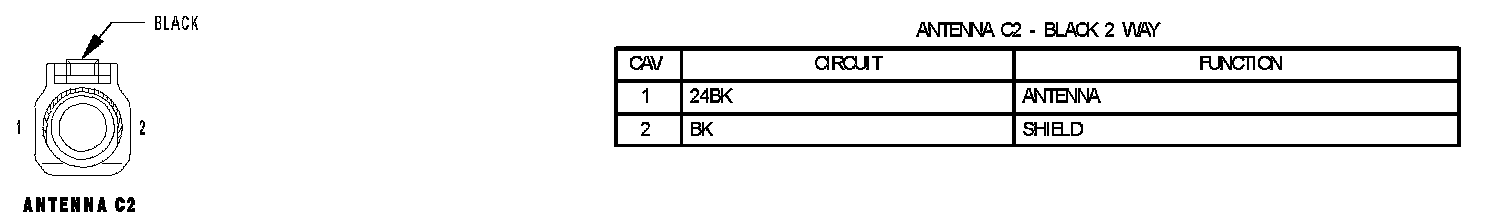

Antenna C2:
