Body Control Module
Body Control Module

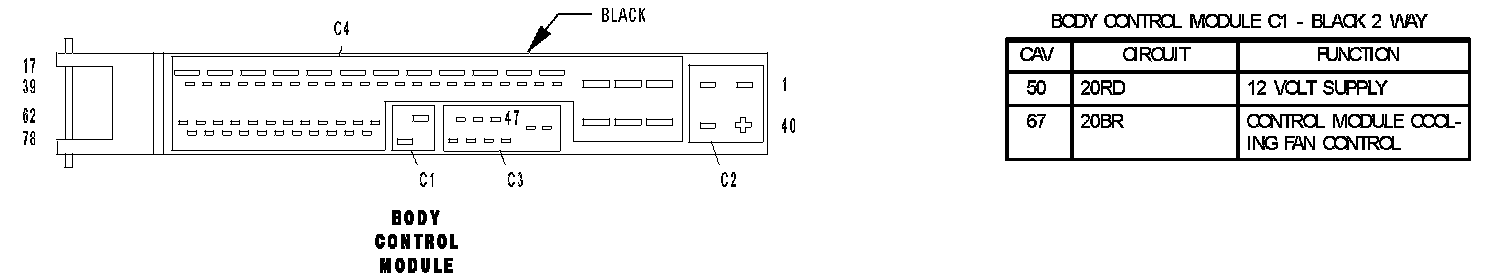

Body Control Module C1:

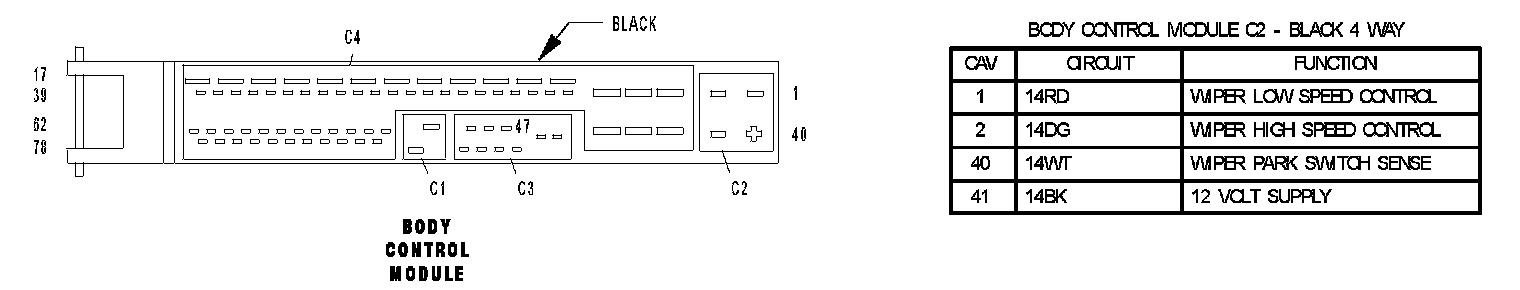

Body Control Module C2:

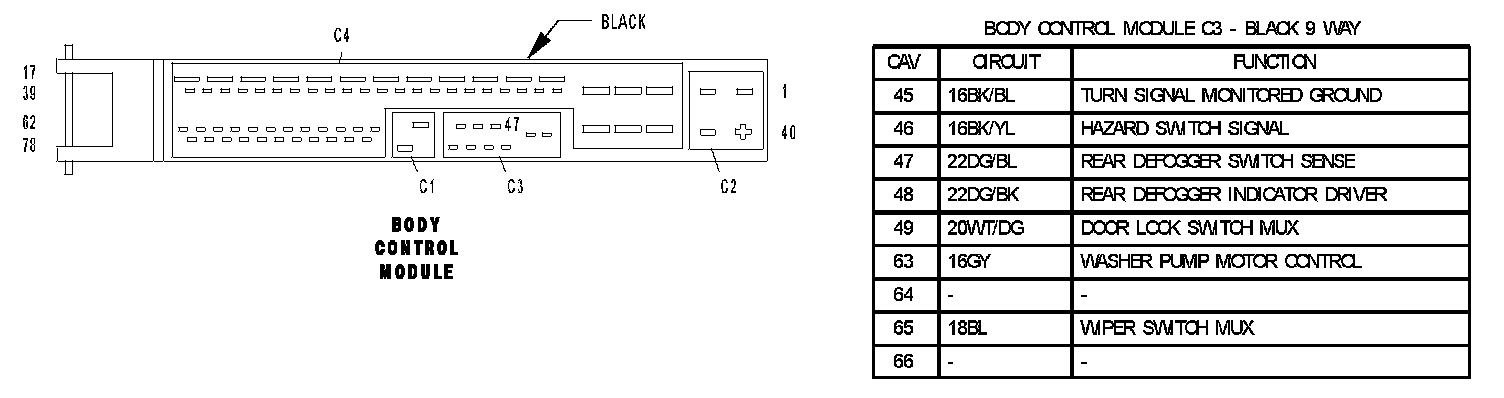

Body Control Module C3:

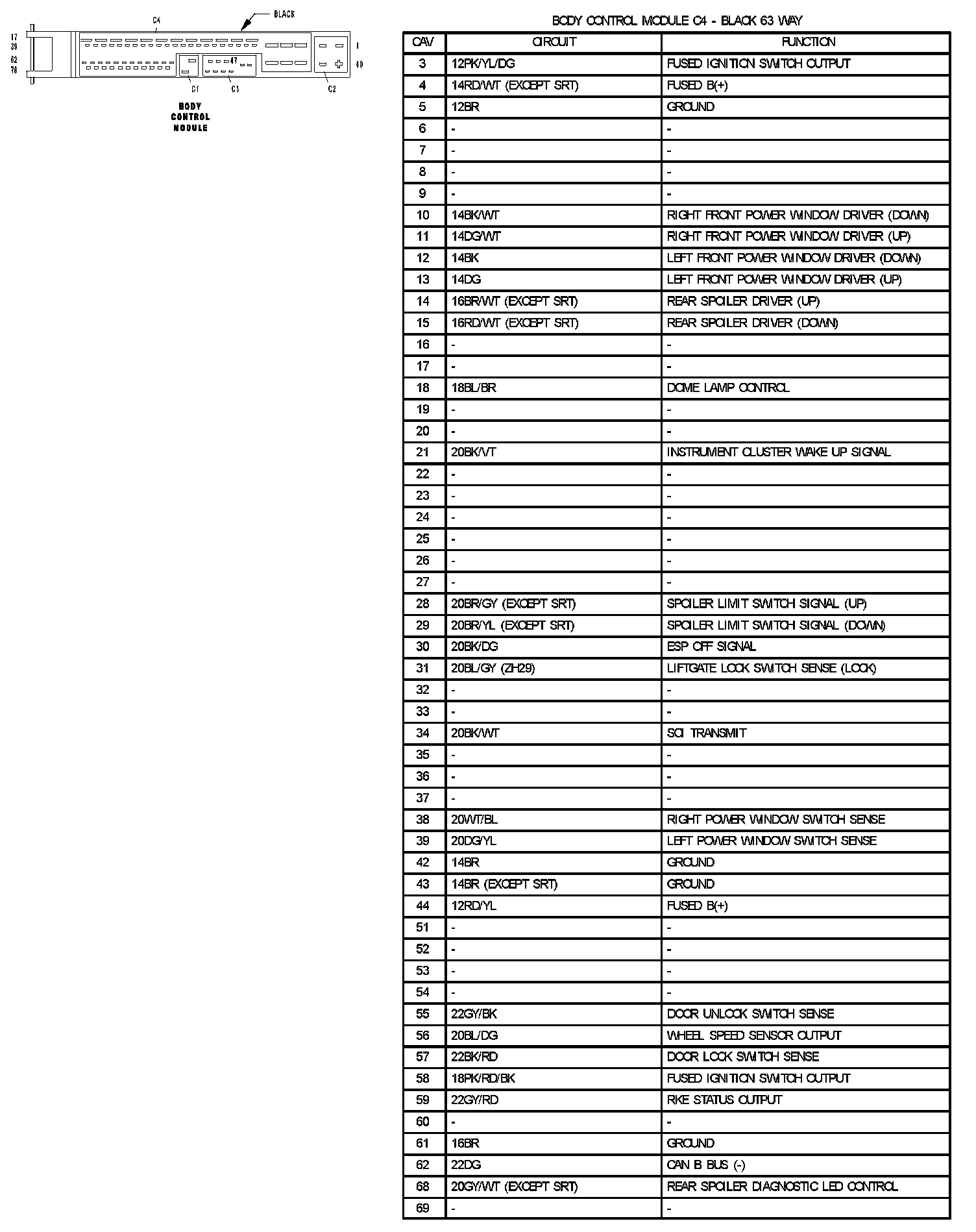

Body Control Module C4 Part 1:

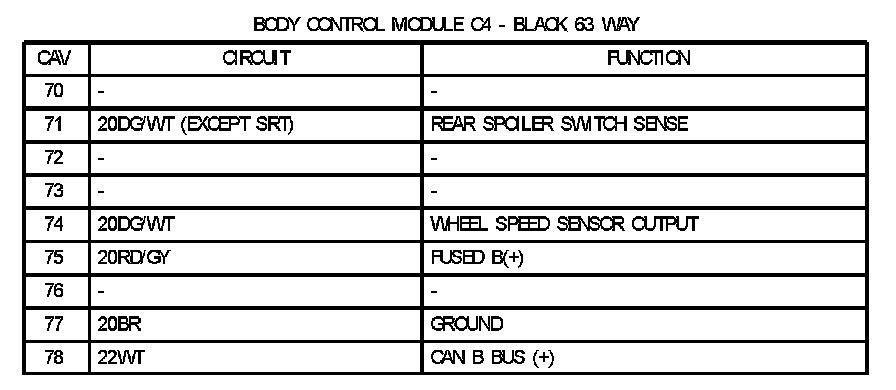

Body Control Module C4 Part 2:
