Control Assembly: Service and Repair




REMOVAL
1. Disconnect the negative battery cable.




2. Remove the engine compartment lower panel.

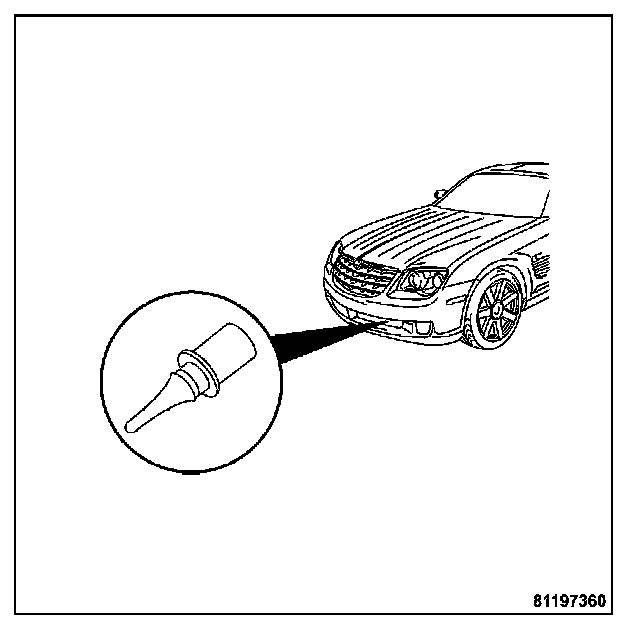

3. Open the installation flap for left fog lamp located in the left inner fenderwell towards the front.

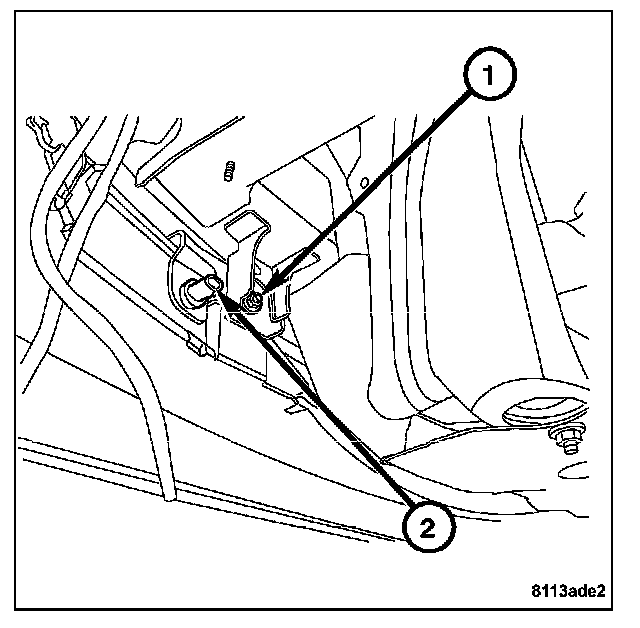

4. Disconnect the ambient air temperature harness connector (2) located next to the front fascia mount (1).




5. Unclip the ambient air temperature from the front bumper support.

INSTALLATION
1. Clip the ambient air temperature to the front bumper support.

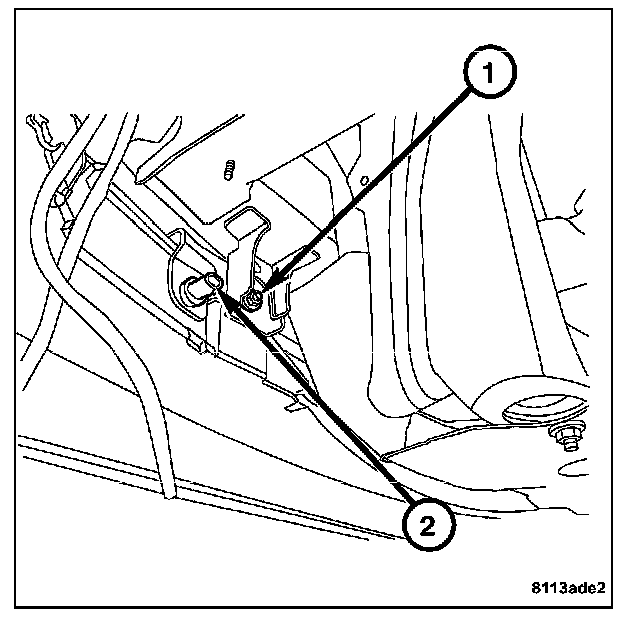

2. Connect the ambient air temperature harness connector (2).
3. Close the installation flap for left fog lamp located in the left inner fenderwell.
4. Install the engine compartment lower panel.
5. Connect the negative battery cable.
