Refrigerant Pressure Sensor / Switch: Service and Repair
REMOVAL 1.
Evacuate the A/C system.
2.

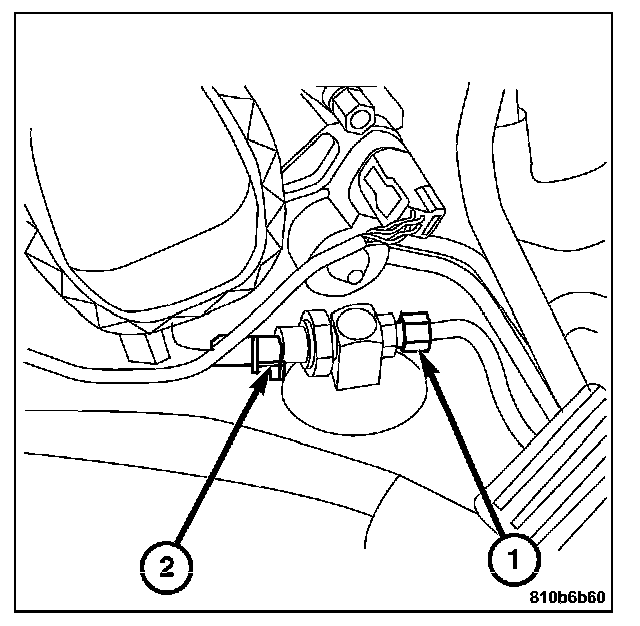

Disconnect the A/C pressure transducer harness connector (2).
3.
Remove the A/C pressure transducer from the receiver/dryer (1).
INSTALLATION 1.
Install the A/C pressure transducer to the receiver/dryer (1).
2.
Connect the A/C pressure transducer harness connector (2).
3.
Charge the A/C system.
