Instrument Panel (Top Section) - RHD

REMOVAL




1. Remove both right and left A-pillar trim (1) panels.

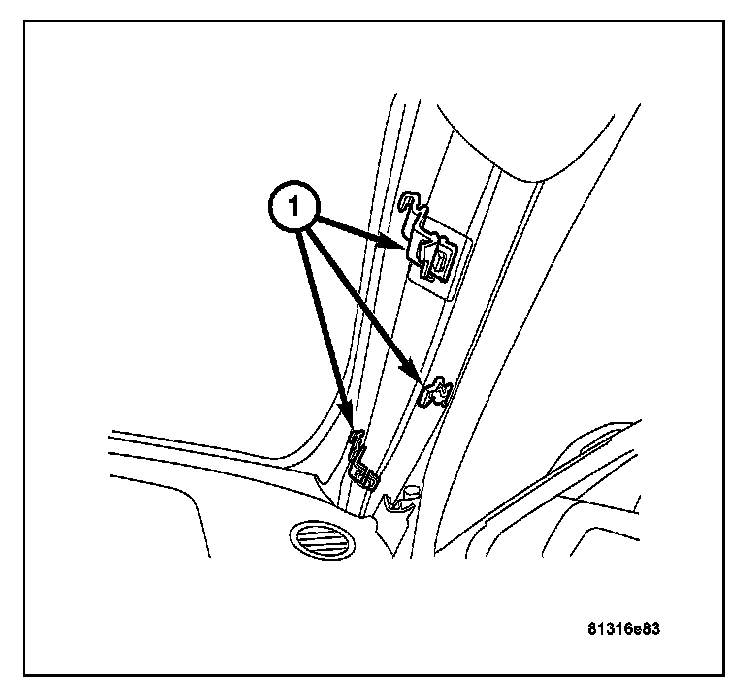

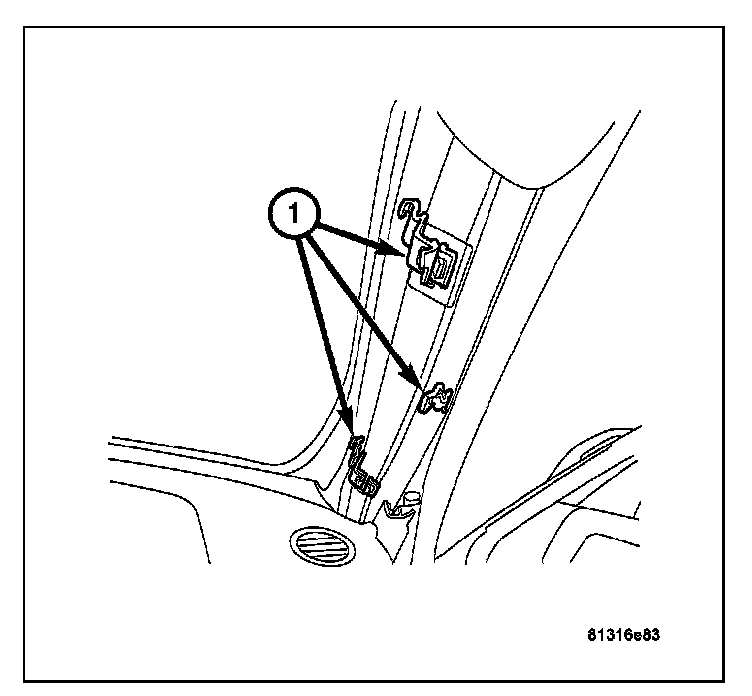

2. Remove the sheet metal clips (1) on left and right A-pillars.




3. Remove the fuse cover on the right side of the I/P.

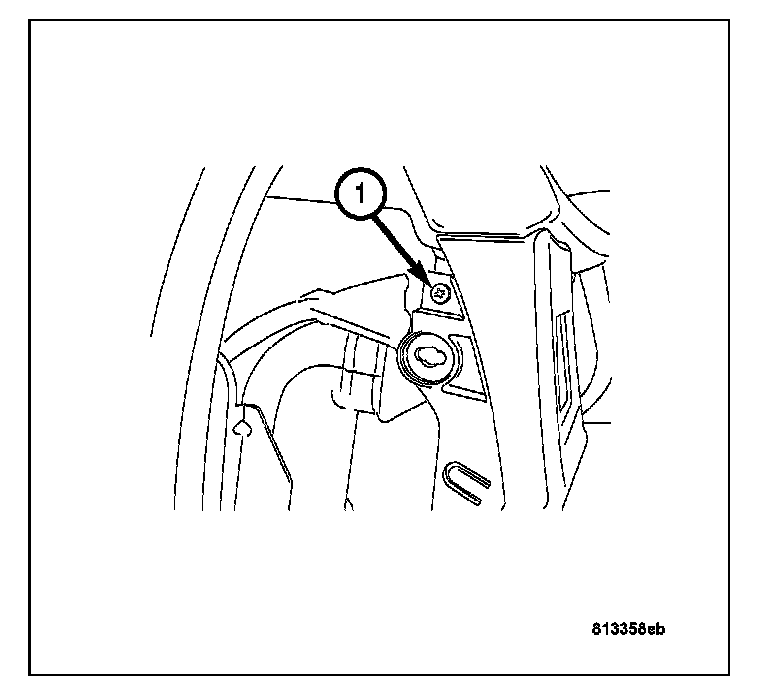

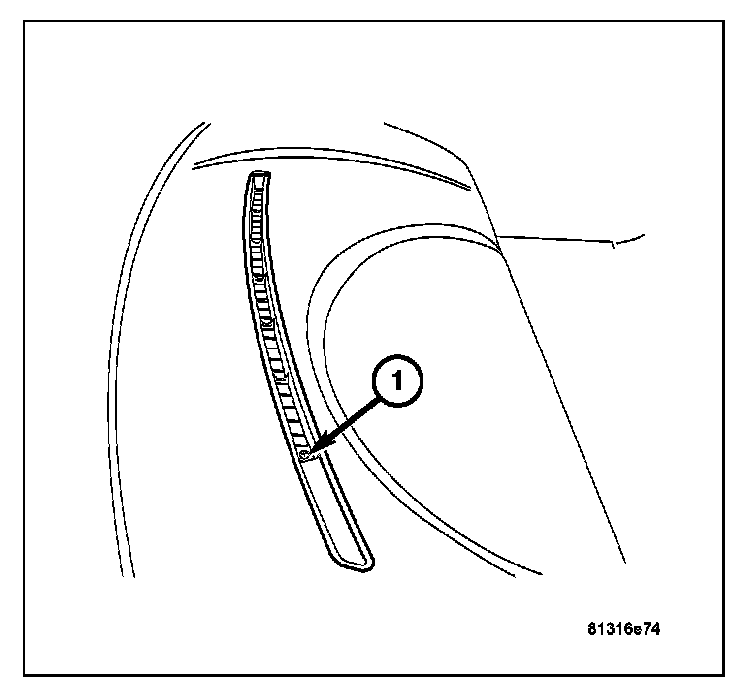

4. Remove the screw (1) located behind the right air outlet deflector by removing the deflector to reveal the screw.
5. Remove the screw (2) on right of the I/P located on the inside of the fuse cover.

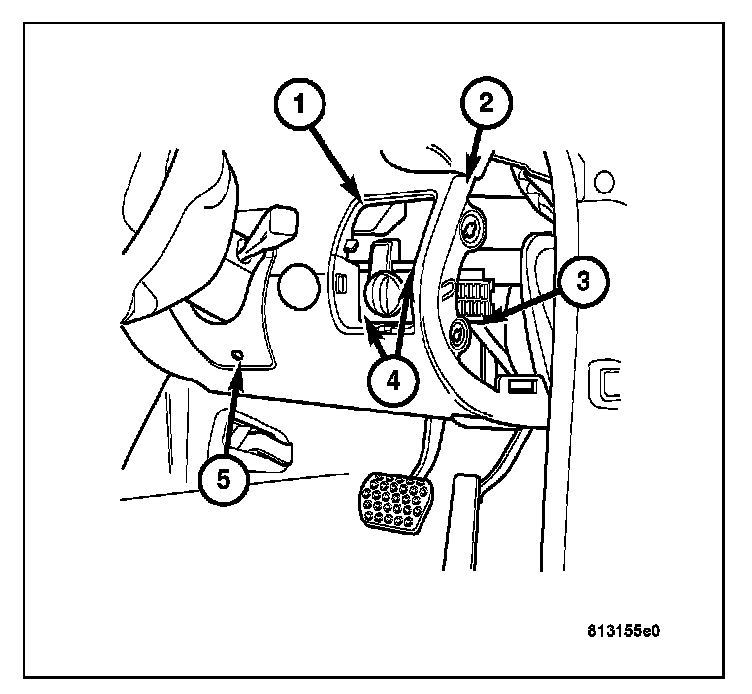

6. Remove the I/P panel on the left side of the I/P.

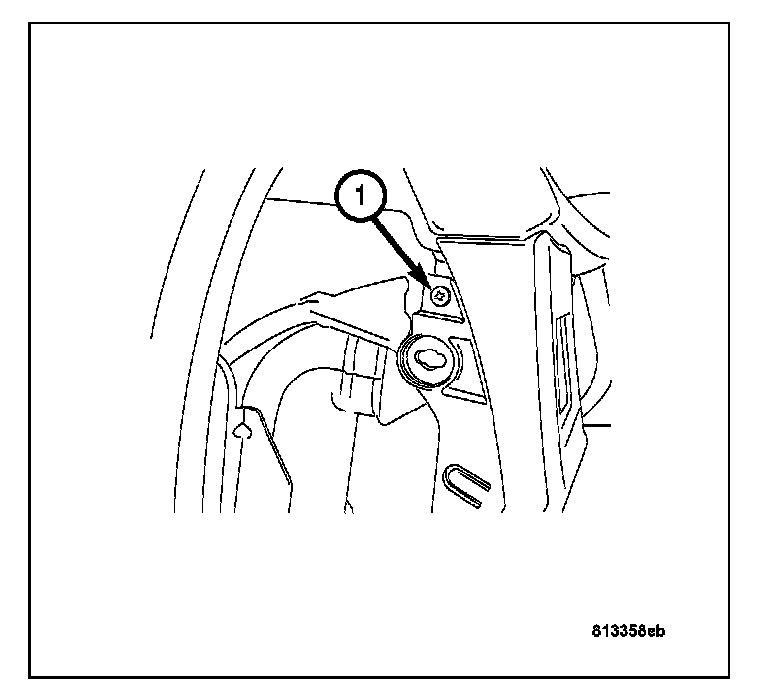

7. Remove the screw (1) attaching the top section to the side panel.




8. Remove the screw (4) located behind the left air outlet deflector by removing the deflector to reveal the screw.

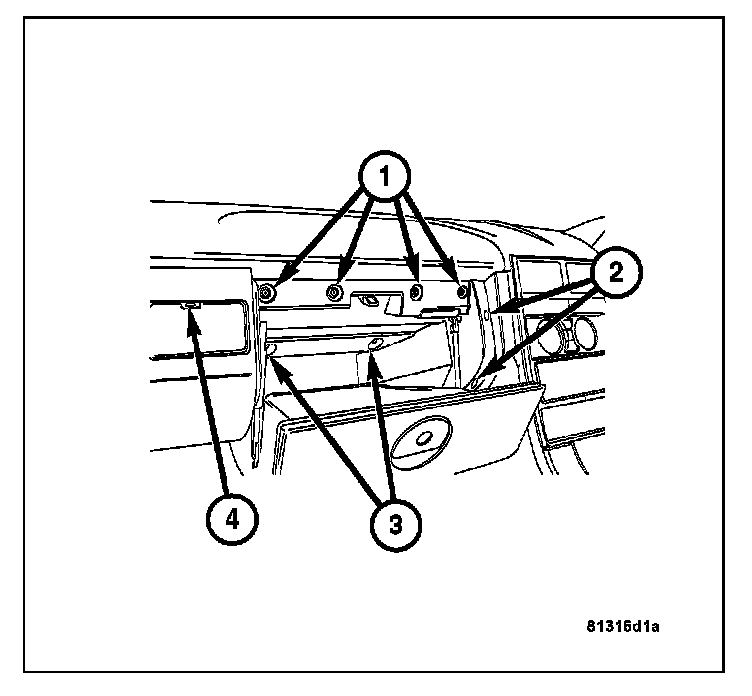

9. Open the glove compartment and remove the screws (1) attaching it the top section of the I/P.

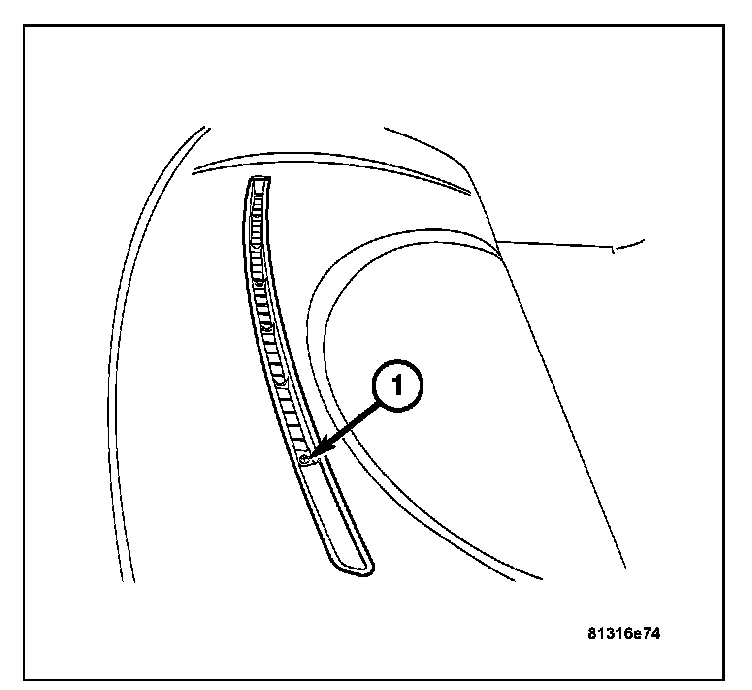

10. Remove the defroster grille screws (1) and the defroster grille pulling it outwards.
11. Remove the bolts on left and right under the defroster grille.

CAUTION: Damage to the top section of I/P can occur if the A-pillar sheet metal clips were not removed.

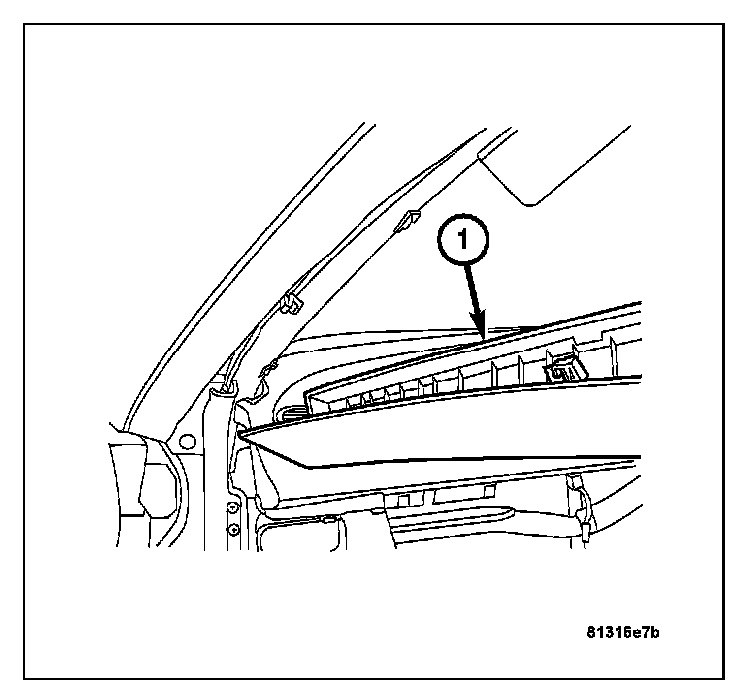

12. Lift the top section of the I/P and remove toward rear.
13. Lay the top section of I/P down on a suitable surface.

INSTALLATION

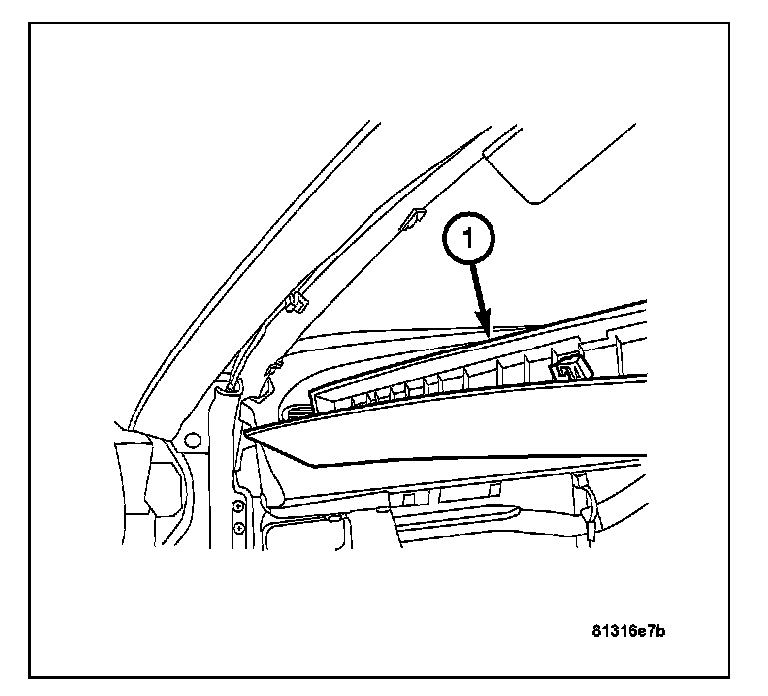

1. Install the top section of I/P.
2. Install the sheet metal clips (1) on left and right A-pillars.




3. Install the bolts on left and right under the defroster grille.
4. Position the defroster grille and install the screws (1).




5. Install the screws (1) to the glove compartment attaching it to the top section of the I/P.
6. Install the screw (4) located in the air outlet deflector.




7. Install the screw (1) located in the air outlet deflector.
8. Install the screw (2) on right of the I/P panel located on the inside of the fuse cover.




9. Install the screw (1) on left of the I/P panel located on the inside of the I/P cover.
10. Install the fuse cover on the right and the I/P cover on the left.




11. Install the A-pillar trim (1).
