Lower I/P Panel Right - RHD

REMOVAL

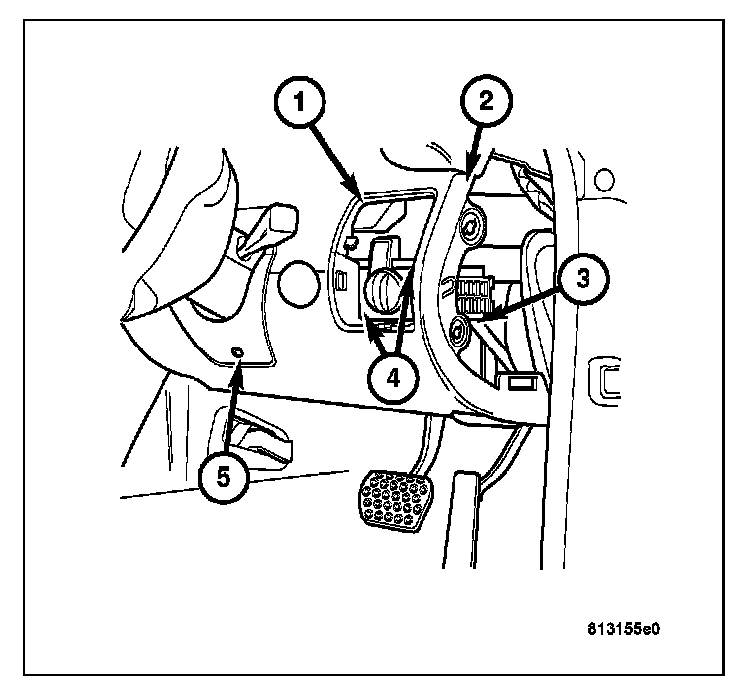

1. Remove the right side I/P air outlet deflector (1) by pulling it out of the I/P.
2. Remove the screw (5) attaching the steering column panel under the steering column, then remove the steering column panel.
3. Remove the fuse panel side cover.

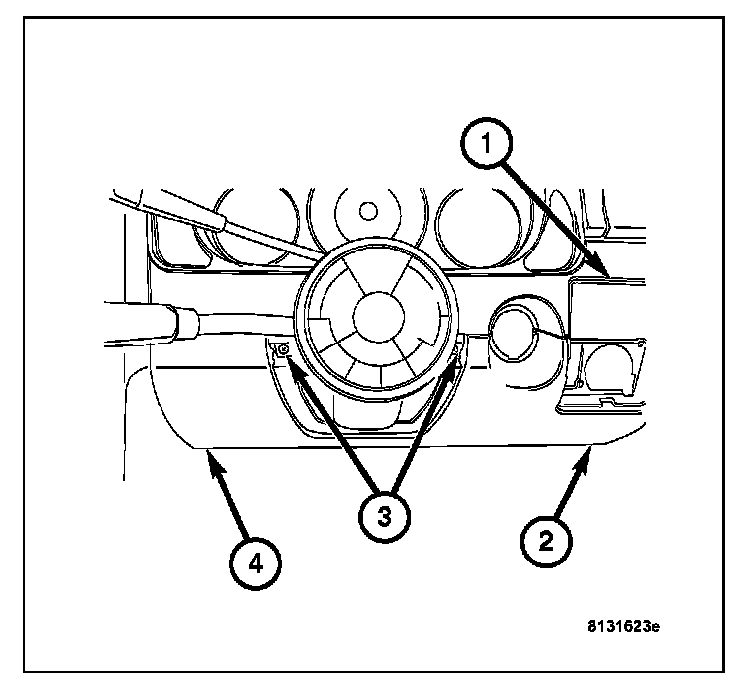

4. Remove the two screws (4) attaching the lower I/P to the illumination control module and the screw (3) on the side of the I/P to the illumination control module support bar.
5. Disconnect the illumination control module harness connector, then remove the illumination control module from the I/P.

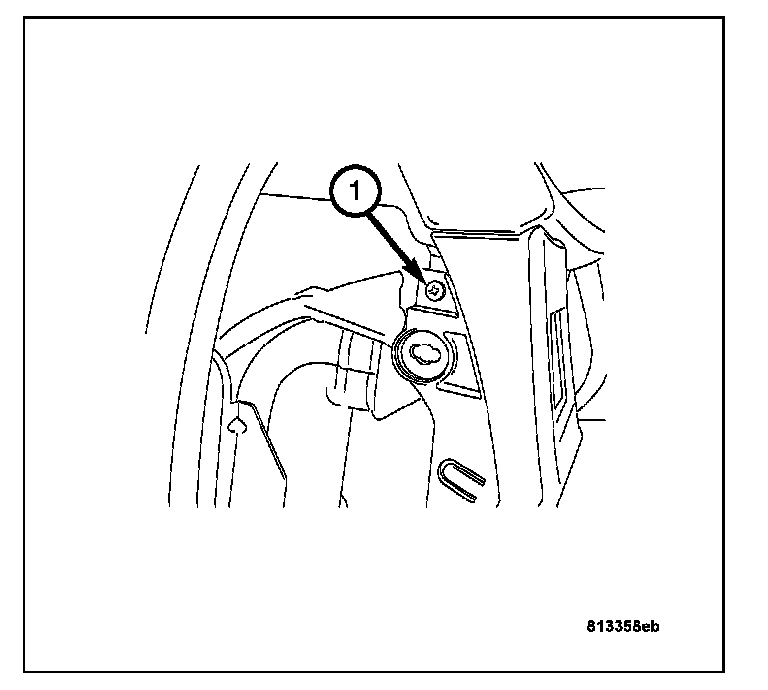

6. Remove the screw (2) attaching the lower I/P panel to the cluster cover.

NOTE: The steering wheel has been omitted so that the I/P screws can be clearly seen.




7. Remove the screws (1 - 4) in the lower I/P.

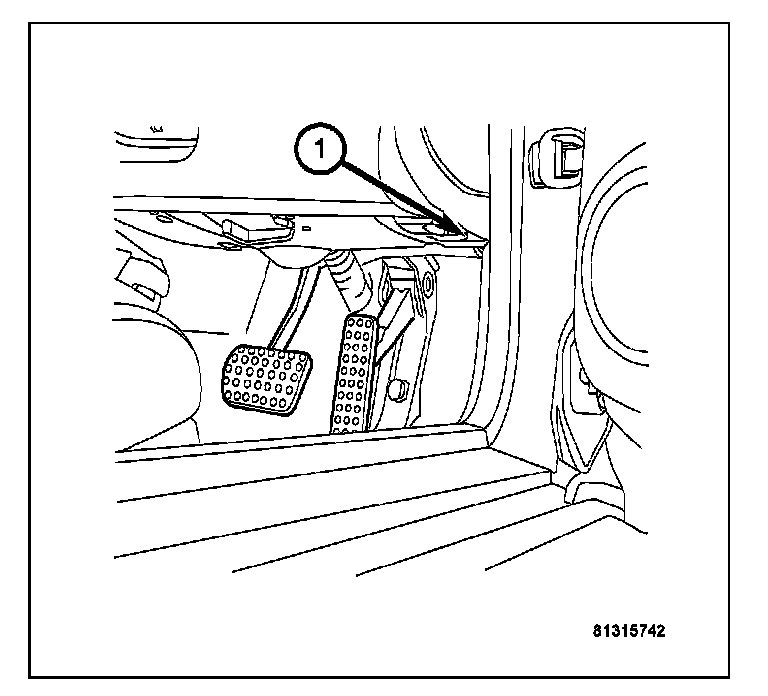

8. Remove the screw (1) attaching the hood latch release handle to the lower I/P.

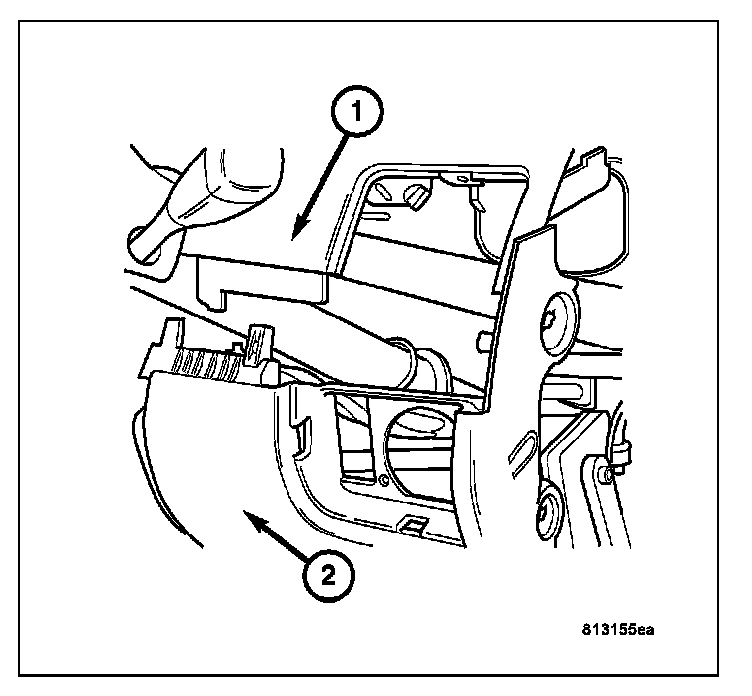

9. Guide the handle through the lower panel as you separate the lower I/P (2) from the cluster cover (1), removing the lower I/P from the vehicle.

INSTALLATION

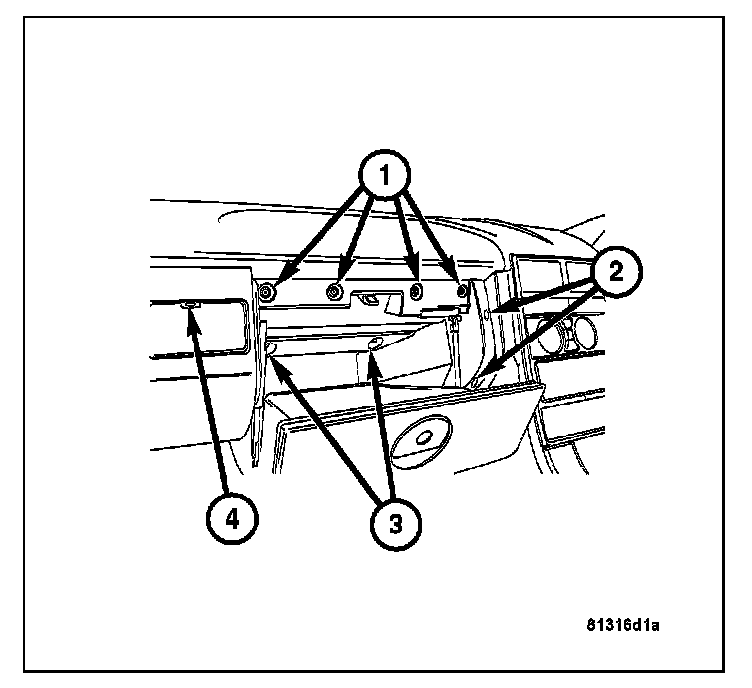

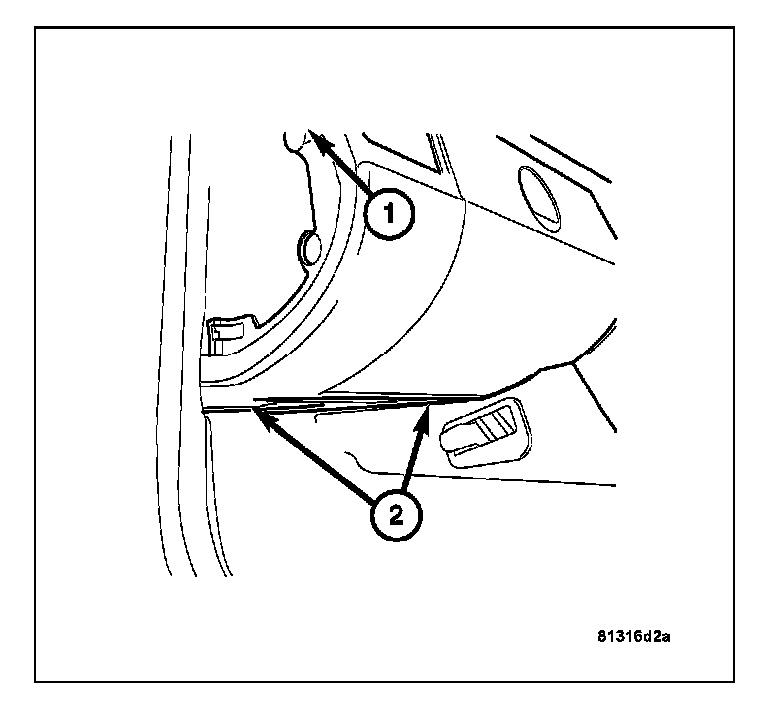

1. Install the two screws (2) to the lower I/P.




2. Install the screw (1) attaching the lower I/P to the upper panel.
3. Install the I/P side cover.




4. Install the screws (1, 2 and 3).
5. Install the screws to the hinge of the glove compartment door.
6. Connect the shock and the limiter strap to the door of the glove compartment.
7. Install the screw (4) behind the air outlet deflector then install the air outlet deflector.
