Instrument Cluster Bulb

If the individual indicator lamps/malfunction indicator lamps do not illuminate or extinguish during operation, the systems concerned are to be checked or the fluid levels corrected.

1. Move the ignition switch to the "RUN" position, all of the indicator lamps and malfunction indicator lamps illuminate.
2. Start the engine, all of the indicator lamps and malfunction indicator lamps extinguish at an engine speed of > 480 rpm if the systems are functioning correctly.
3. The following indicator lamps and malfunction indicator lamps extinguish independently of the engine running: SRS malfunction indicator lamp after approximately 4 seconds and the seat belt indicator lamp after approximately 6 seconds.

DISPLAY INSTRUMENTS

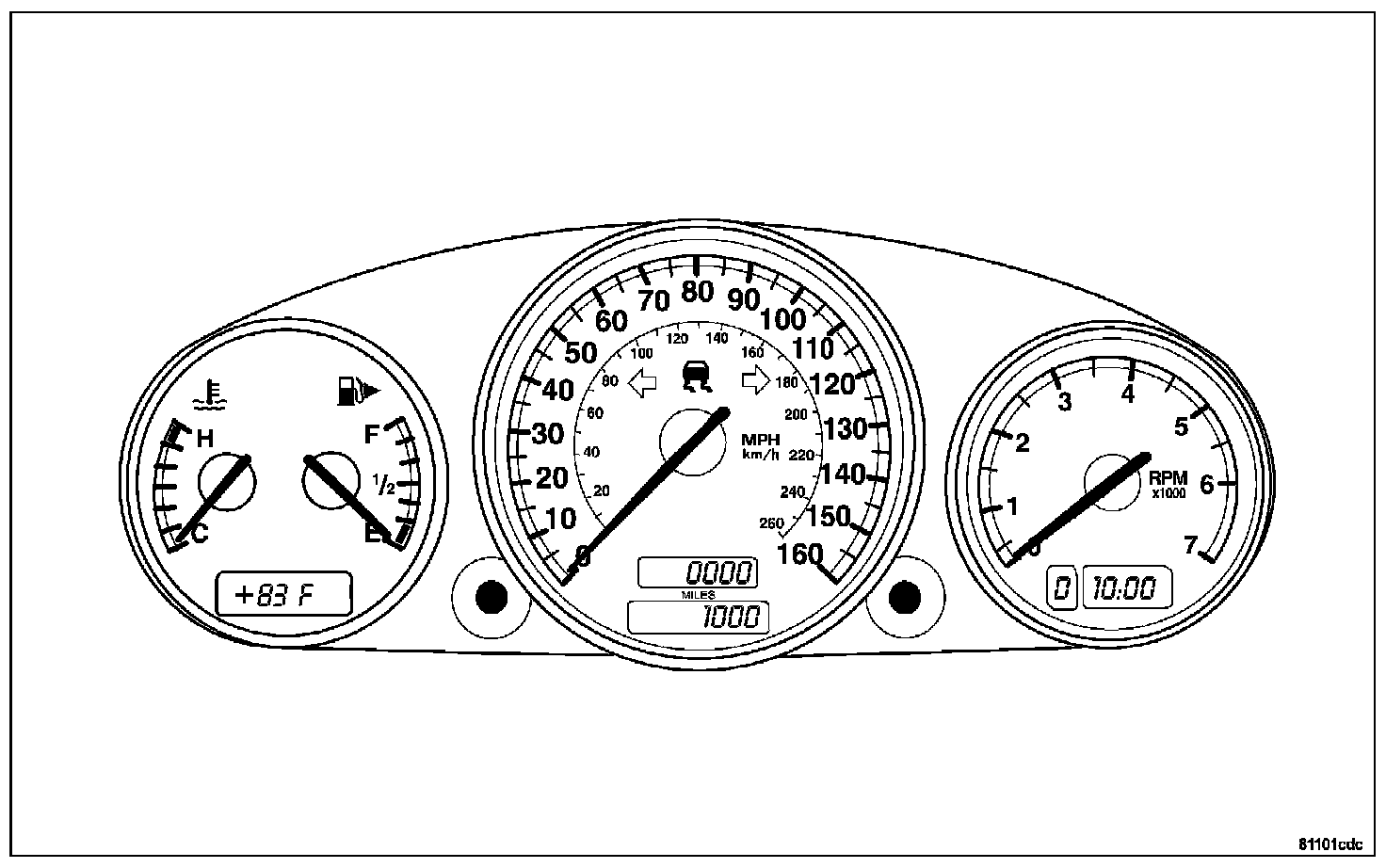

The display instruments must indicate according to operating conditions seen with the DRBIII(R).




The speedometer display must coincide with the DRBIII(R) readout.

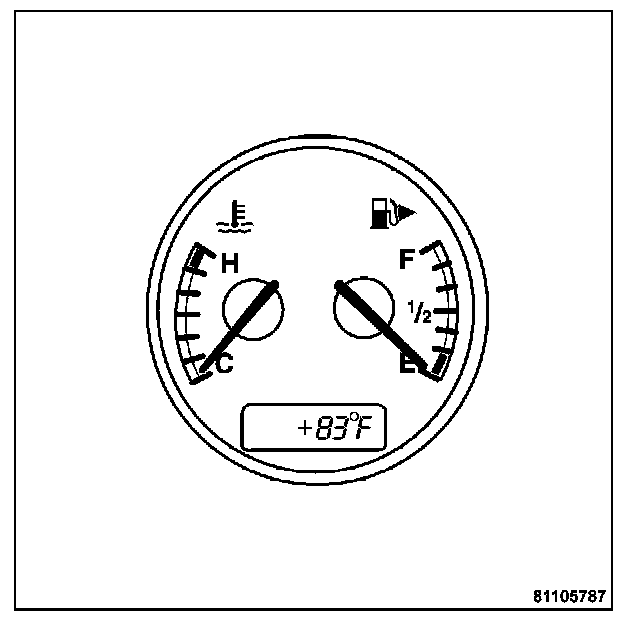

The coolant temperature gauge and the fuel level gauge must indicate according to operating conditions seen with the DRBIII(R).

WARNING BUZZER OPERATIONAL CHECK
The light outage indicator lamp, parking brake warning, key-in-ignition warning and the seat belt reminder warning buzzer stays on for approximately 6 seconds. The warning tone seat belt warning buzzer will be interrupted as soon as the driver's seat belt is inserted into the seat belt buckle.

MAINTENANCE DISPLAY

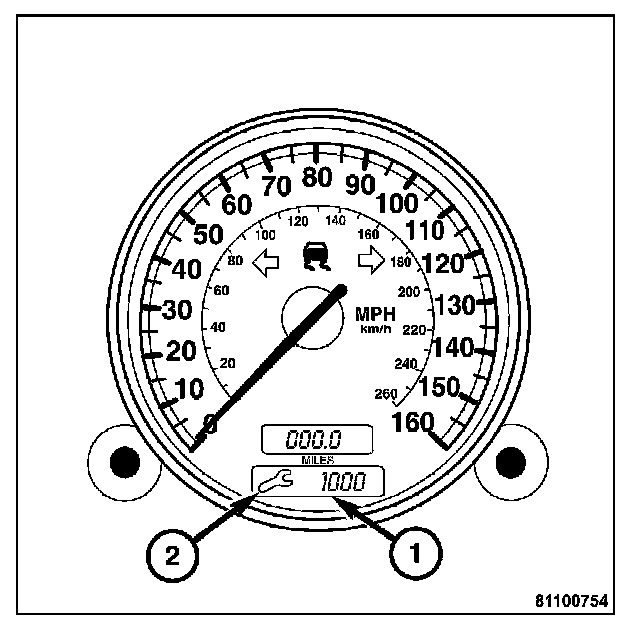

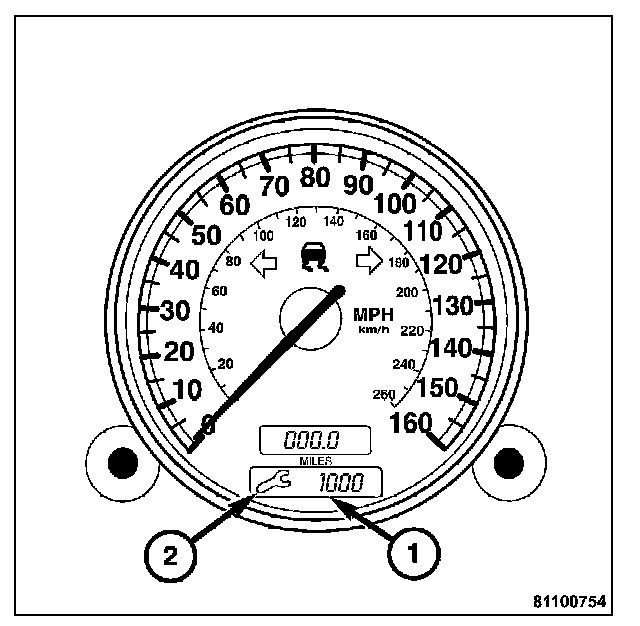

Move the ignition switch to the "RUN" position and press the left instrument cluster button twice within 1 second. The tool symbol (2) will appear and the current remaining distance appear for 10 seconds.

STANDARD PROCEDURE

DISPLAY OF REMAINING FSS MILEAGE AT DRIVER'S REQUEST




The remaining FSS mileage (1) can be displayed at the request of the driver.

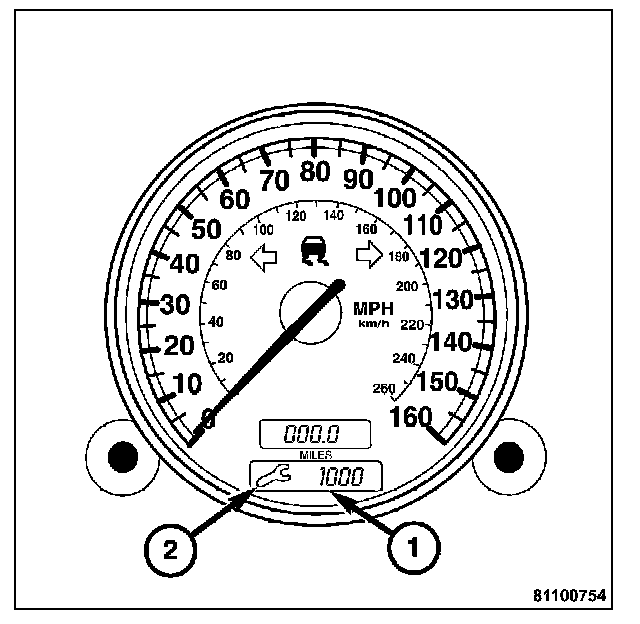

NOTE: The tool symbol appears for 10 seconds together with the current remaining mileage.

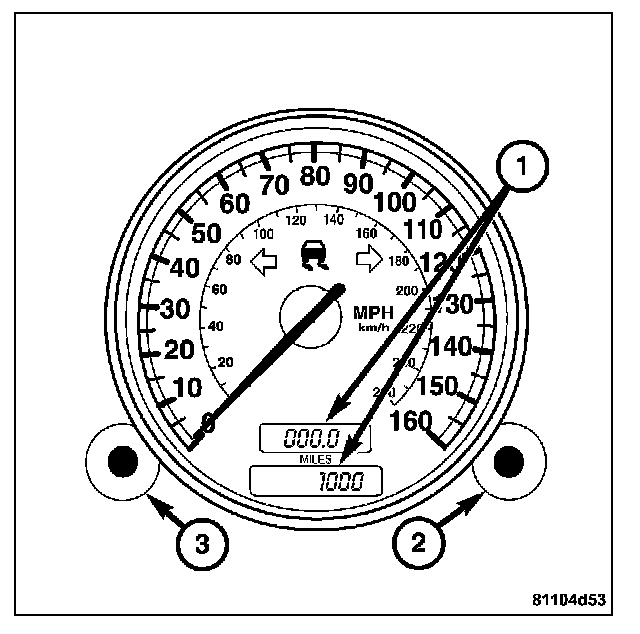

1. Press the left rotary dial (3) on the Instrument Cluster (IC) twice within one second.

RESETTING THE FSS MAINTENANCE INDICATOR

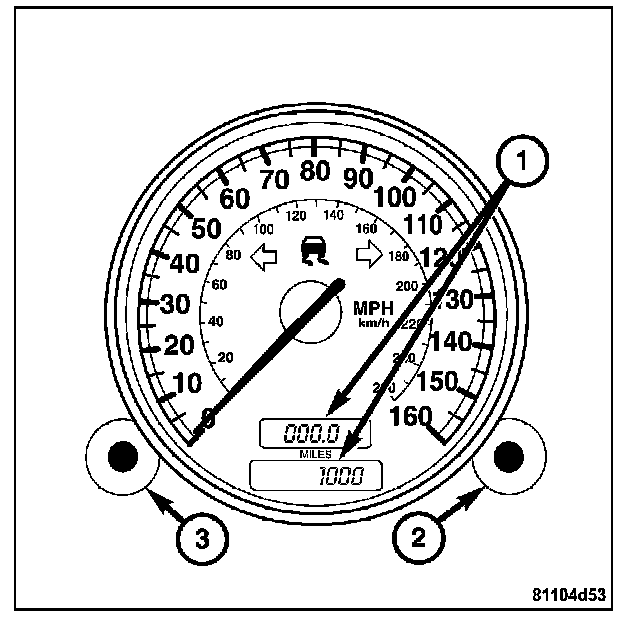

The FSS maintenance indicator can be reset to the total mileage (1) or total time in two ways:




Automatically when the odometer (1) is reset to 0 within the first 155 miles. (The FSS maintenance indicator is reset to the values set at the factory).

Manually by driver by:

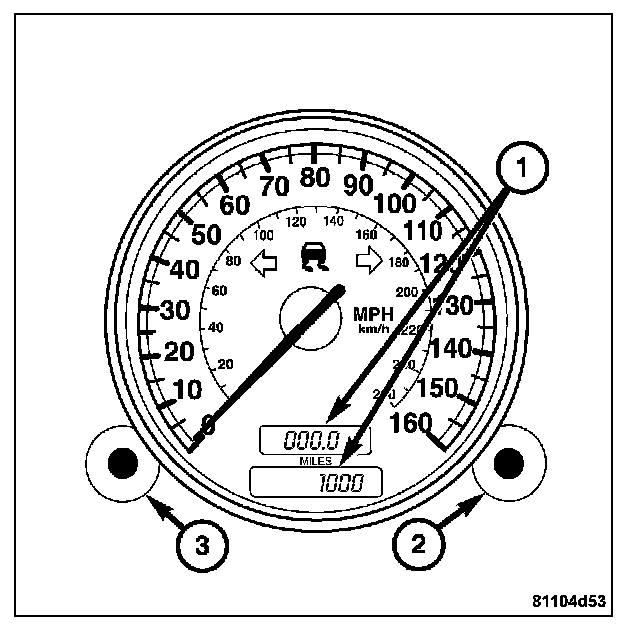

1. Hold the left rotary dial (3) depressed.




2. Simultaneously move the ignition switch to the "RUN" position (3).




3. Continue to hold the rotary dial (3) down for 10 seconds. After the audible tone 15,000 km (7,500 miles) appears on the display. The remaining mileage (1) is displayed again.

RESETTING THE FSS MAINTENANCE INDICATOR AFTER AN OIL CHANGE

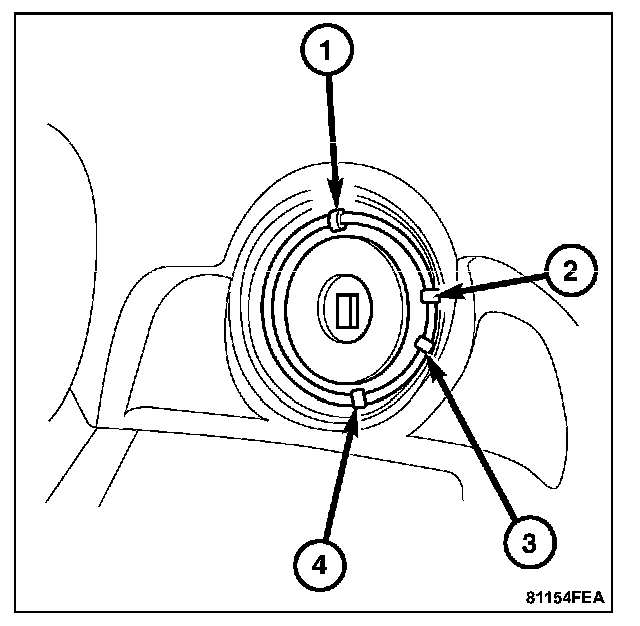

1. Move the ignition switch to the "RUN" position (3).

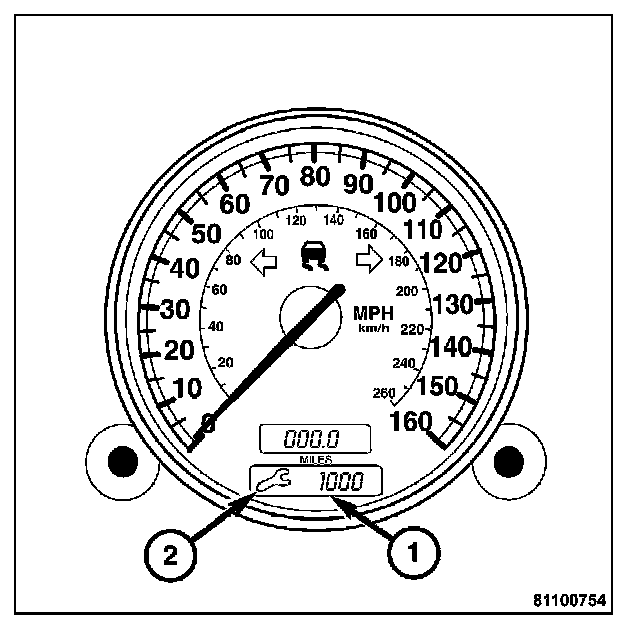

2. Within 4 seconds of moving the ignition switch into the "RUN" position, press the reset button for the trip odometer (3) twice within one second. The display for the FSS service request (1) is activated for 10 seconds.




3. During the 10 seconds the FSS service request is displayed, move the ignition switch to the "OFF" position (1). The FSS service request will continue to be displayed.




4. Press the reset button (3) for the trip odometer (1) and hold.




5. Move the ignition switch to the "RUN" position (3).




6. Continue to press and hold the reset button for the trip odometer (about 10 seconds) until the audible signal sounds and the new start distance appears (1) in the display. The tool symbol (2) should disappear at this time.
