Fog/Driving Lamp: Service and Repair

REMOVAL




1. Disconnect the negative battery cable.
2. Raise and support the vehicle.
3. Remove the lower engine splash shield retaining nuts (1), and remove the splash shield.

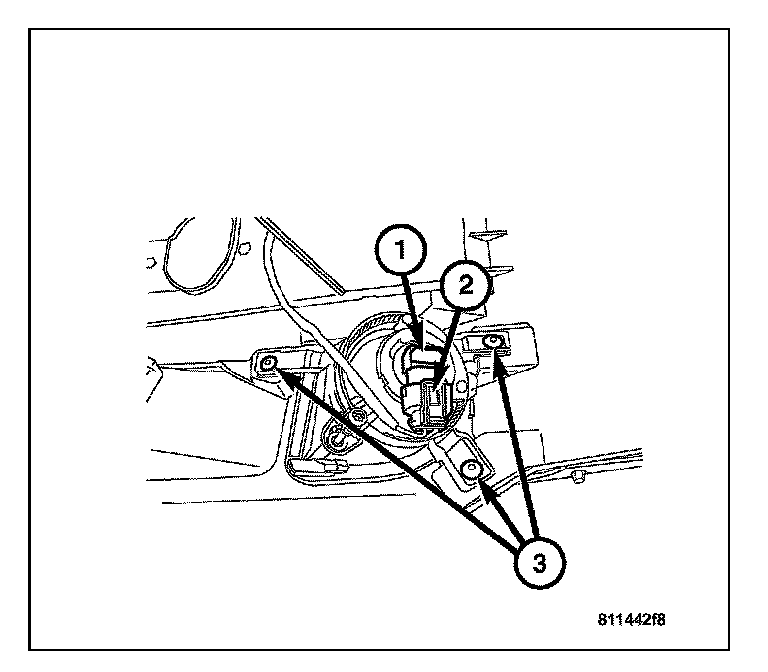

4. Disconnect the fog lamp harness connector (2) from the fog lamp bulb (1).
5. Remove the fog lamp unit attachment bolts (3) and remove the fog lamp unit from the front fascia panel.

INSTALLATION




1. Position the fog lamp unit into the front fascia panel.

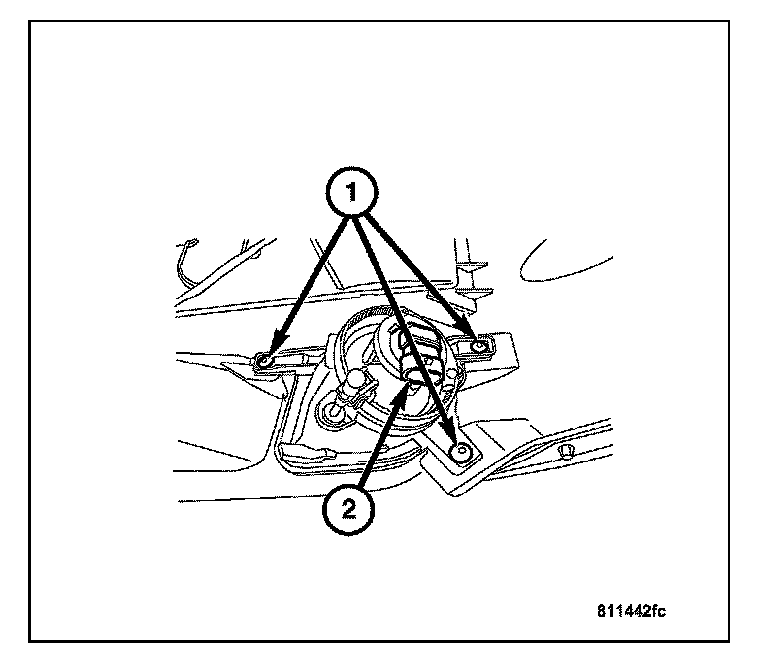

2. Insert the fog lamp unit attachment bolts (1) and secure.
3. Connect the fog lamp harness connector to the fog lamp bulb (2).
4. Install the lower engine splash shield.
5. Connect the negative battery cable.
