Connector Views

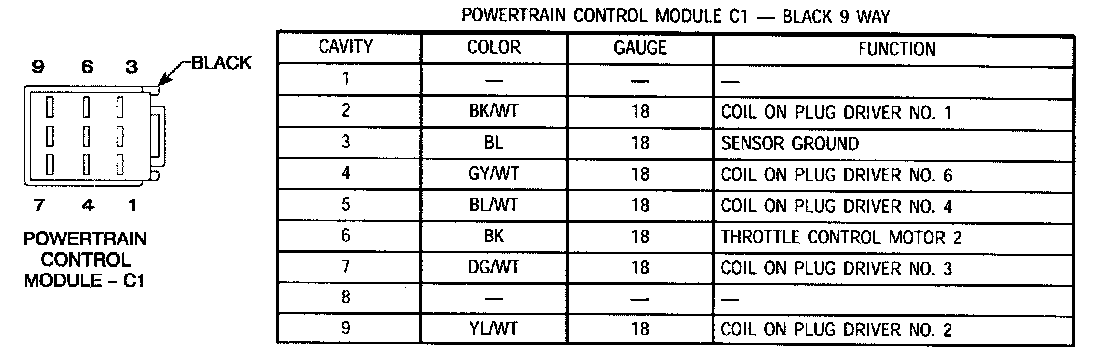

Powertrain Control Module C1:



Powertrain Control Module C2:



Powertrain Control Module C3:



Powertrain Control Module C3:

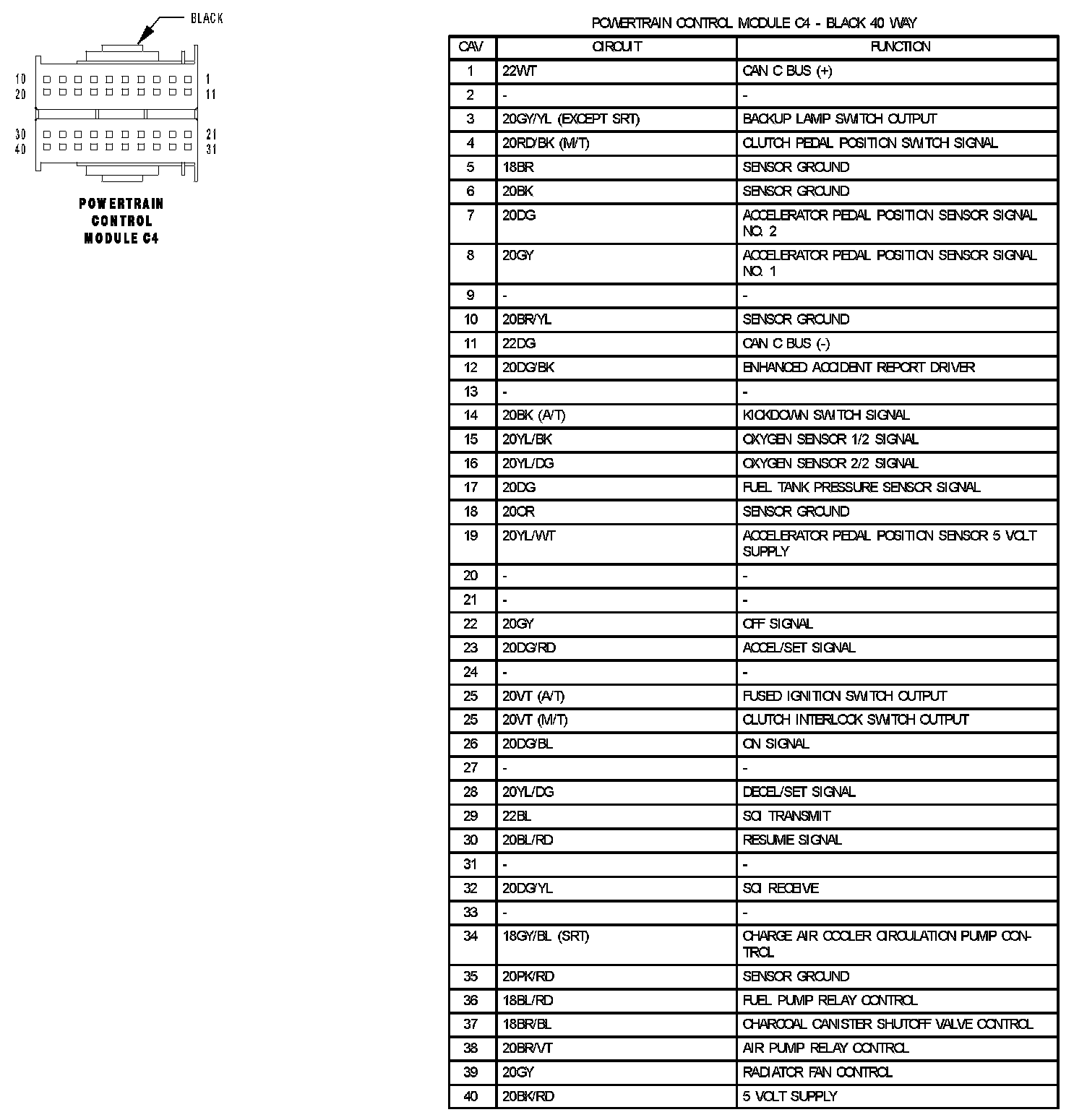

Powertrain Control Module C4:



Powertrain Control Module C5:
