Transmission Temperature Sensor/Switch, A/T

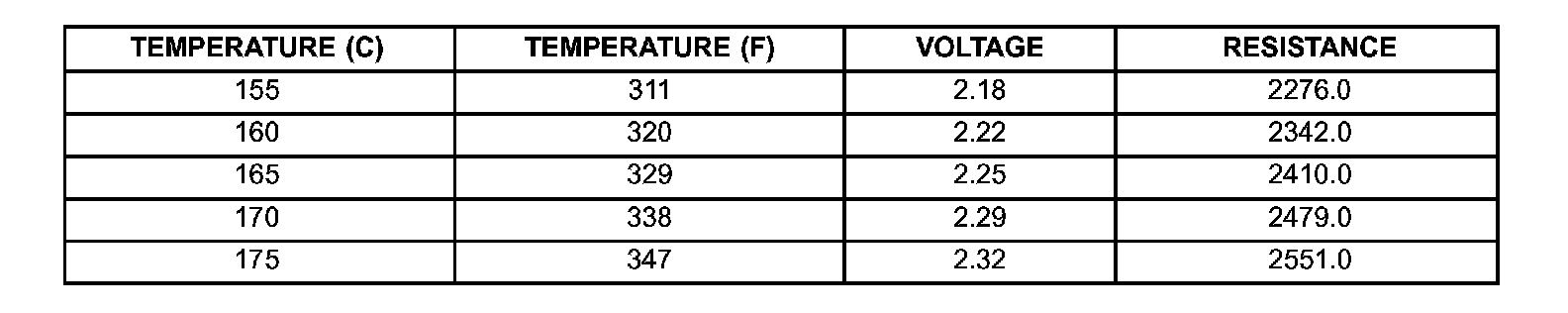

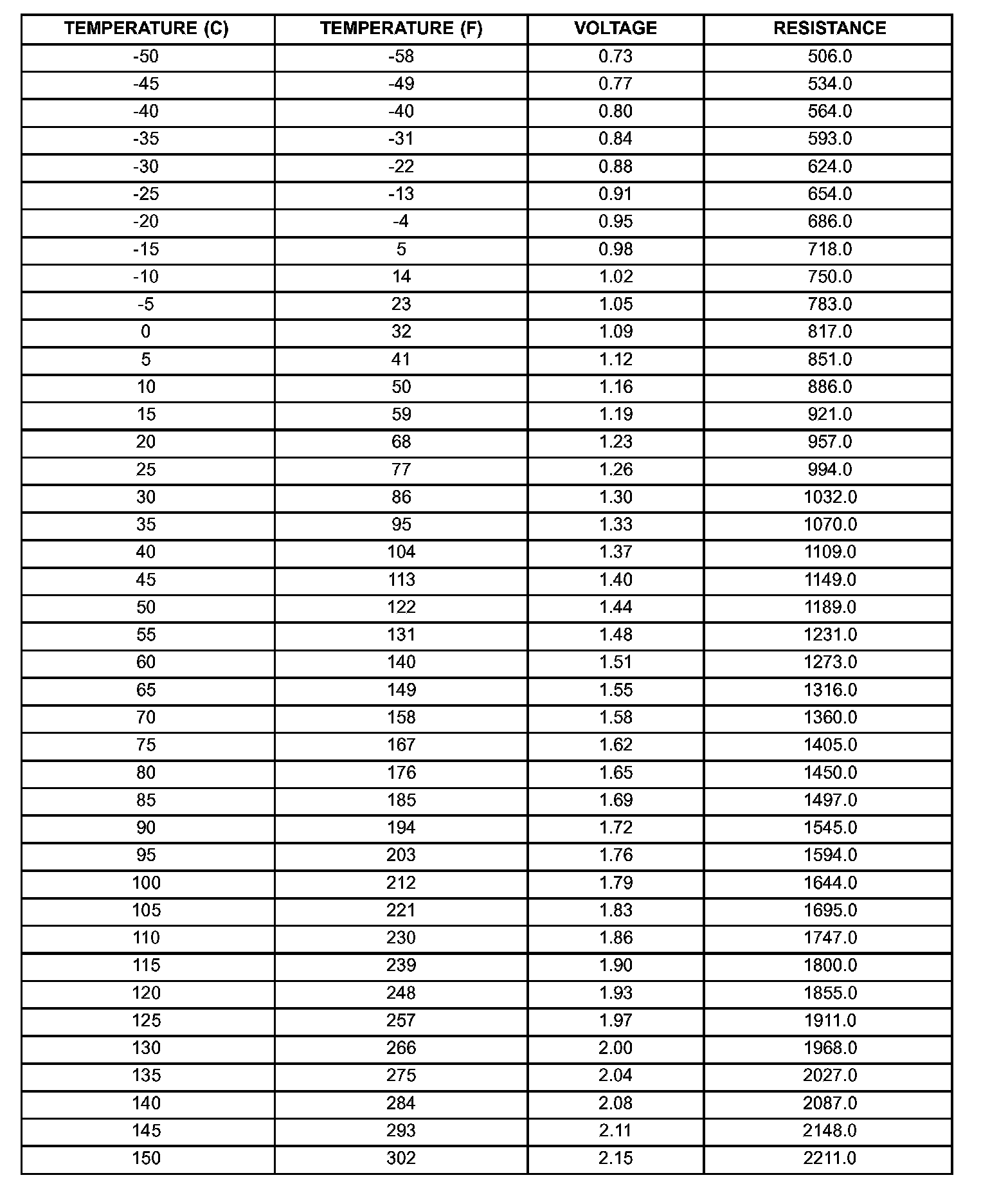

TRANSMISSION TEMP SENSOR SPECIFICATIONS




Part 2 Of 2:
