Oil Pan, Engine

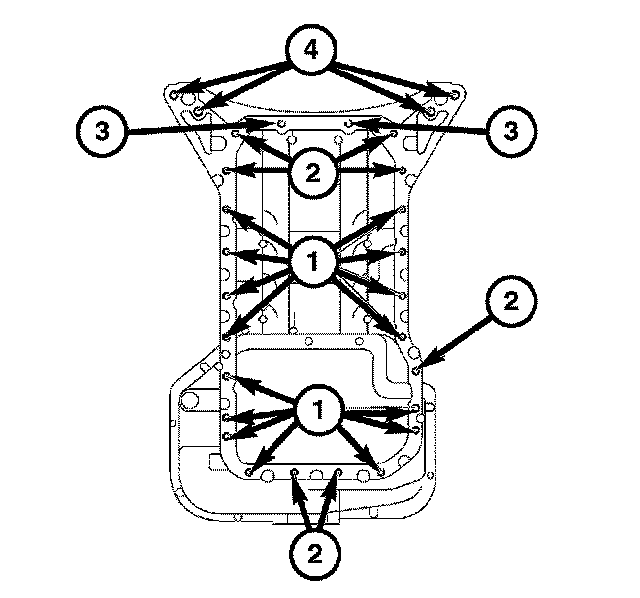

Oil Pan Bolts





Upper
^ (1) M6 X 20
^ (2) M6 X 40
^ (3) M6 X 90
M6 10 Nm (89 inch lbs.)
^ (4) M8 X 30
M8 20 Nm (15 ft. lbs.)
Follow the tightening sequence diagram.

Lower 14 Nm (10 ft. lbs.)
