Front

FRONT SHOCK

REMOVAL

Note: The vehicle must be standing on its wheels when removing the upper shock absorber mounting.

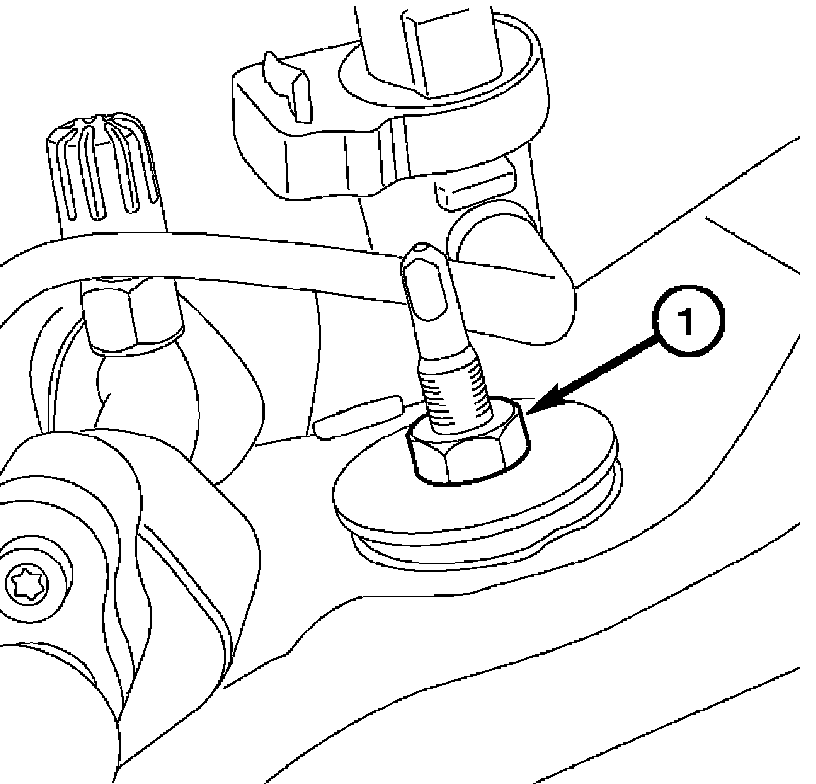

1. Remove the shock absorber upper mounting nut (1).
2. Remove the washer and rubber mounts.
3. Raise and support the vehicle.

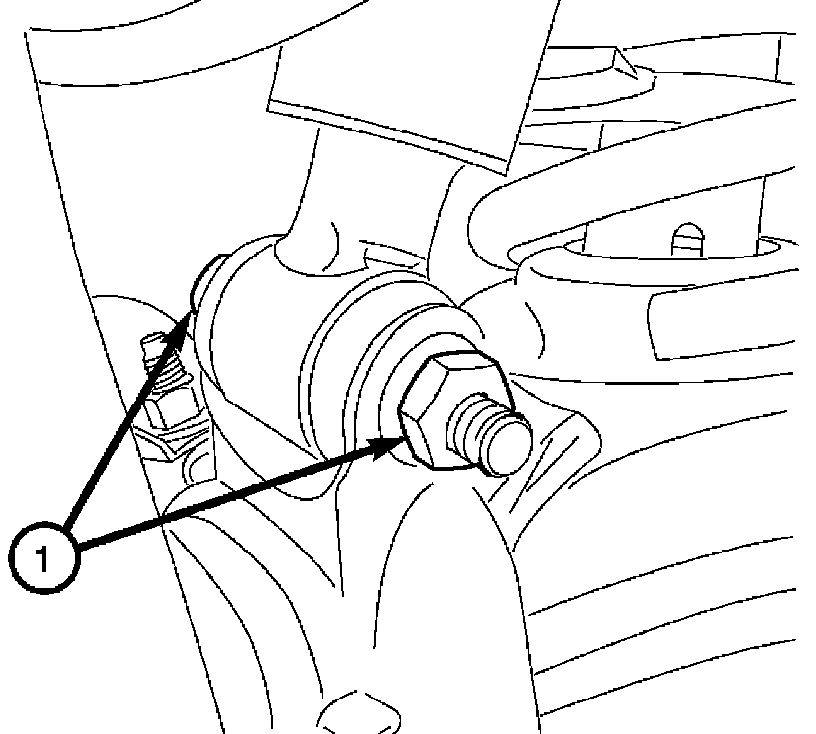

4. Remove the shock absorber nut and bolt (1) from the lower control arm. Then remove the shock from the vehicle by pulling it down and out of the vehicle.
5. Remove any mounting parts from the shock absorber.
6. Inspect all mounting parts for any damage or cracks.

INSTALLATION
1. Install the mounting hardware and bushings to the lower mount and the shock absorber upper mounting stud.
2. Install the shock absorber to the vehicle by inserting the top first and then aligning the lower control arm mounting bracket to the shock absorber.

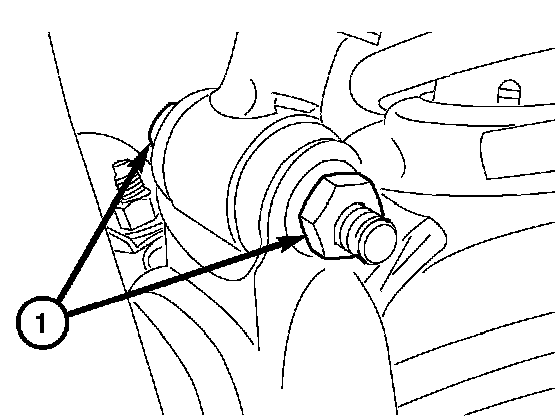

3. Install the shock absorber lower bolt and nut (1) to the lower control arm shock. Tighten to 55 Nm (41 ft. lbs.).
4. Slowly lower the vehicle making sure to guide the upper shock stud through the mounting hole.
5. Install the rubber mount and washer over the shock absorber stud.





6. Install the shock absorber upper mounting nut (1). Tighten to 18 Nm (13 ft. lbs.).
7. Lower the vehicle and check vehicle alignment.
