Planetary Geartrain
PLANETARY GEARTRAINDISASSEMBLY

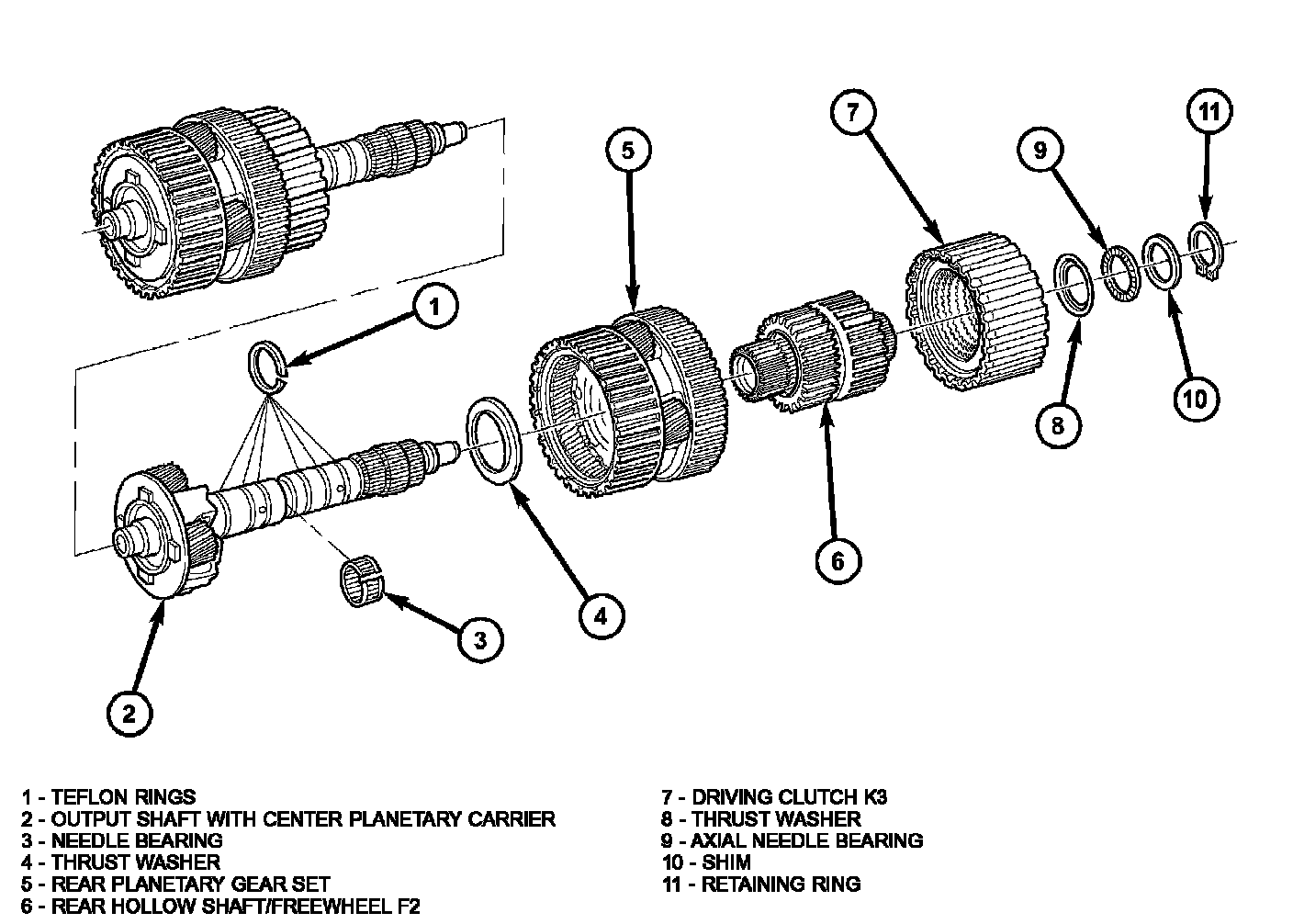

1. Remove the upper two visible teflon rings (1) from the output shaft with center planetary carrier (2).
2. Remove the retaining ring (11), shim (10), axial needle bearing (9) and thrust washer (8) from the output shaft with center planetary carrier (2).
3. Remove the driving clutch K3 (7).
4. Remove the rear hollow shaft/freewheel F2 (6) from the output shaft with center planetary carrier (2).
5. Remove the rear planetary gear set (5) with integrated tubular shaft of center gear set from the output shaft with center planetary carrier (2).
6. Remove the thrust washer (4).
