INOP No Fault Codes - SDARS
INOP No Fault Codes - SDARS

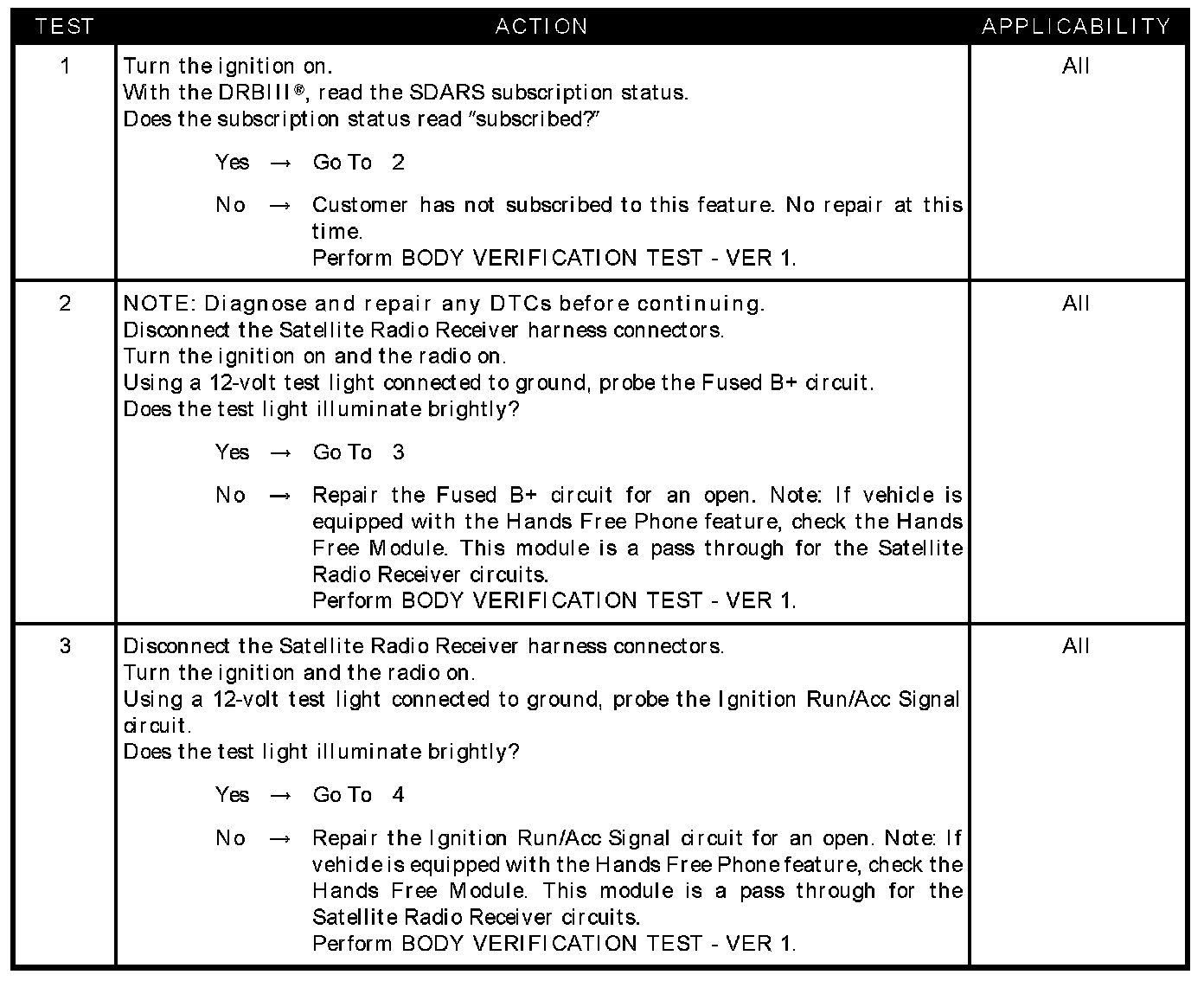

Test 1 - 3:
Test 4 - 5:
SYMPTOM
INOP NO FAULT CODES - SDARS
POSSIBLE CAUSES
-
SDARS subscription
-
Fused B+ circuit
-
Ignition RUN/ACC signal circuit
-
Ground circuit open
-
Satellite radio receiver
