G288

SPECIFICATIONS





GENERAL SPECIFICATIONS





GEAR RATIOS





INPUT SHAFT





OUTPUT SHAFT





REVERSE SHAFT

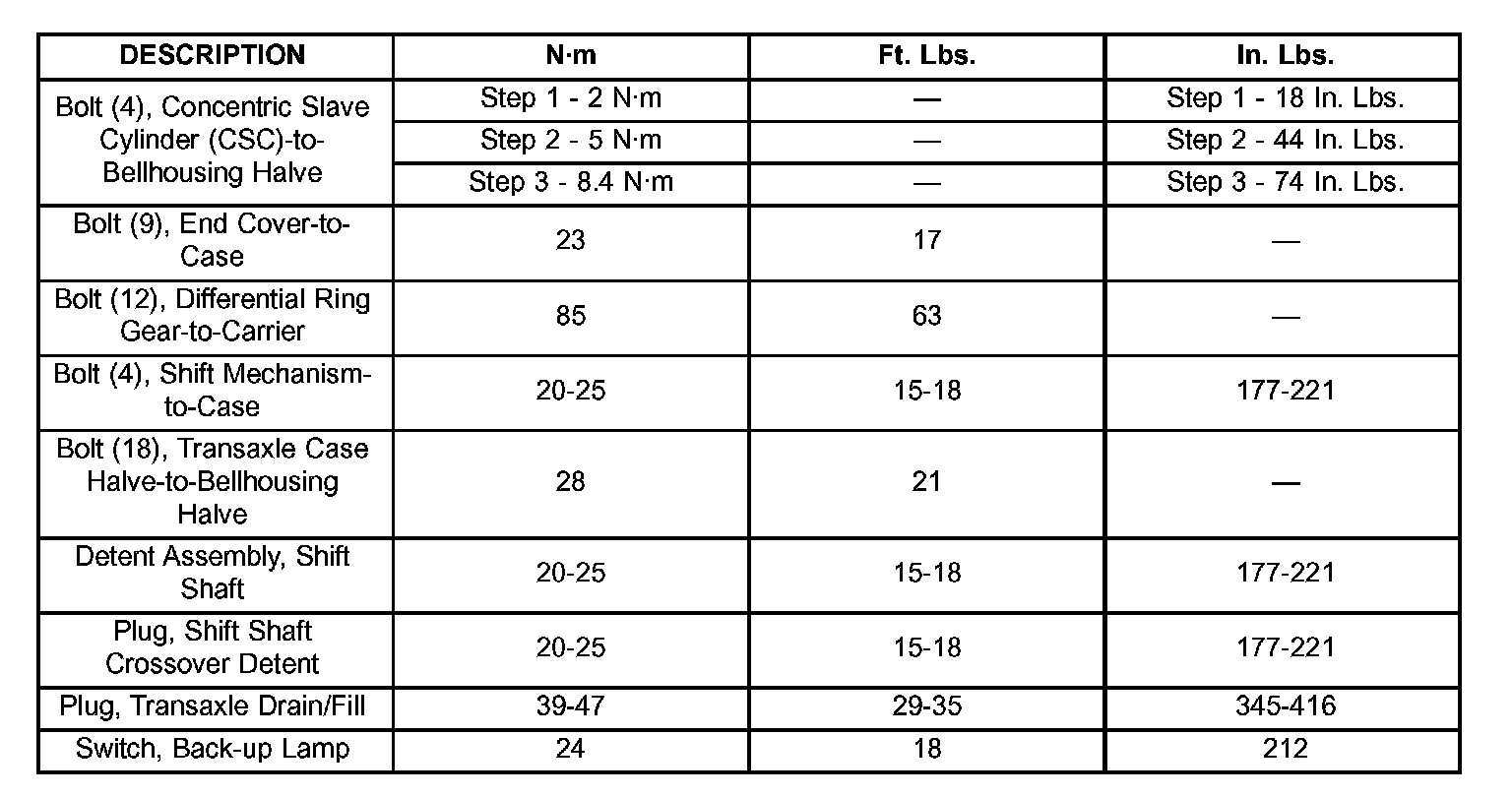

TORQUE SPECIFICATIONS
