Radio Receiver

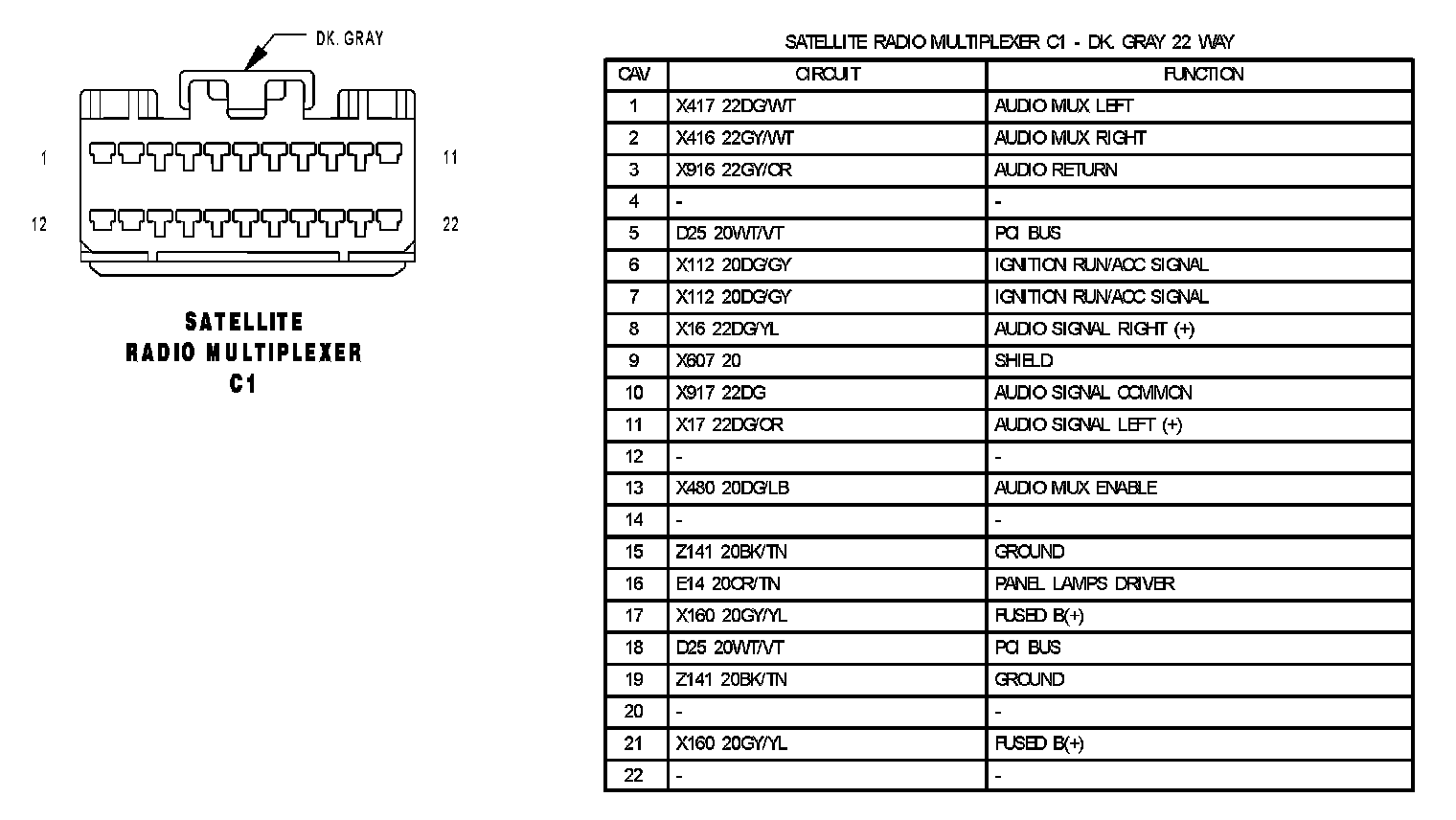

Satellite Radio Muliplexer C1:

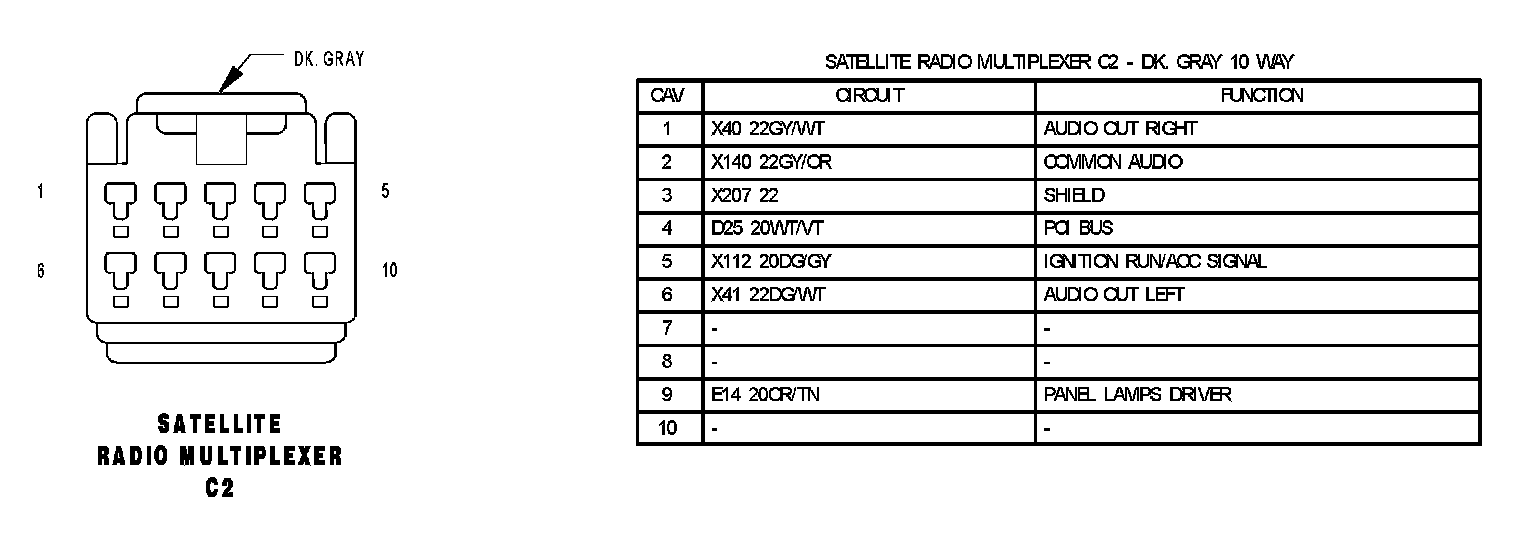

Satellite Radio Muliplexer C2:



Satellite Radio Receiver:
