Internal DDM Failure

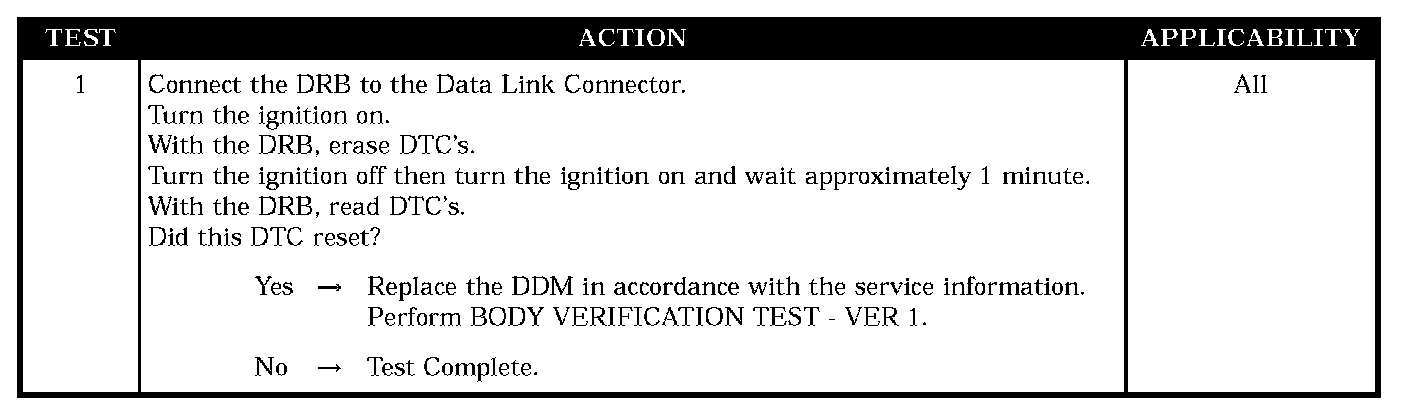

Test 1:






SYMPTOM
INTERNAL DDM FAILURE

WHEN MONITORED
Continuously.

SET CONDITION
Time to mature is 125 ms.

POSSIBLE CAUSES
- Internal DDM failure
