EVIC Switch Input Circuit Open

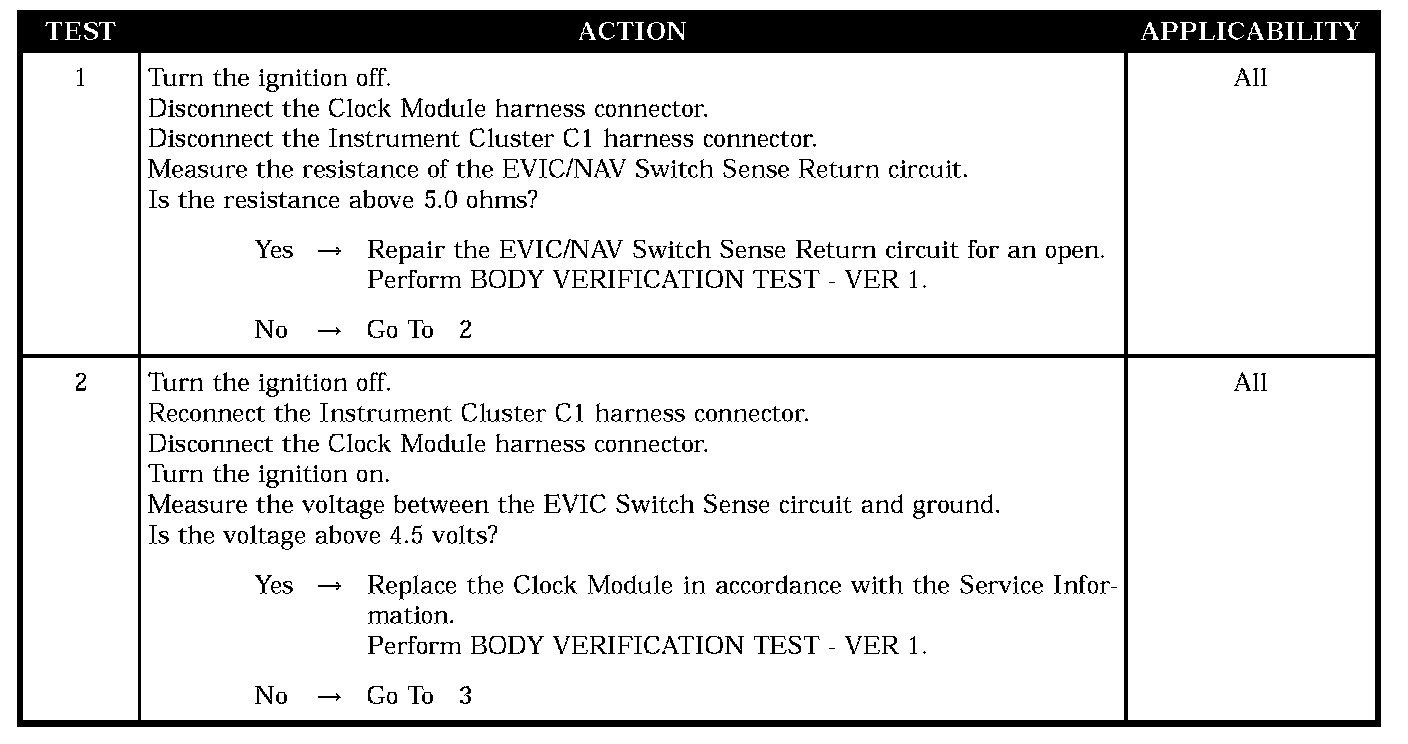

Test 1 - 2:

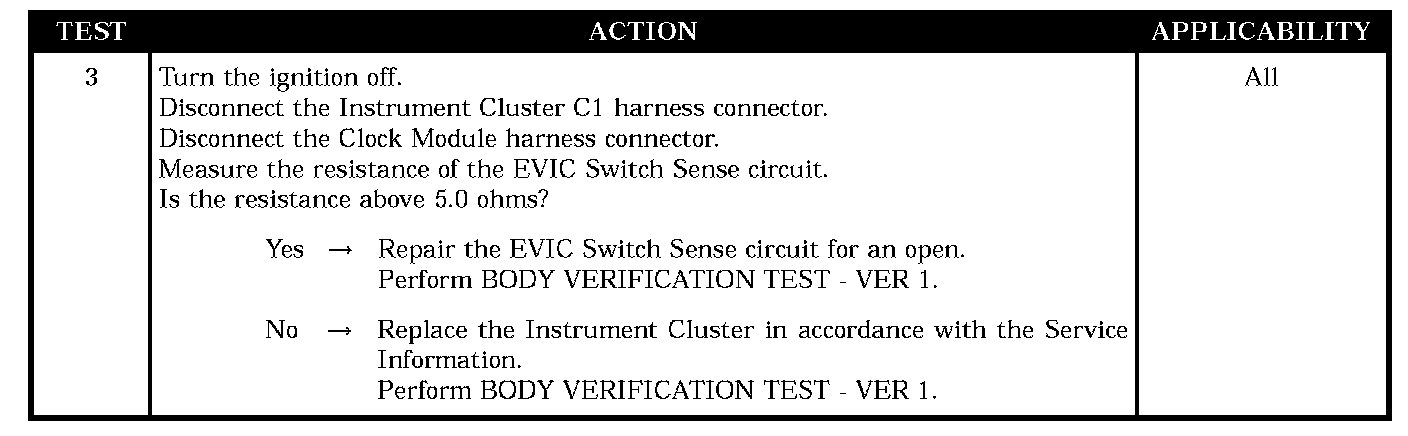

Test 3:

SYMPTOM
EVIC SWITCH INPUT CIRCUIT OPEN

WHEN MONITORED
The MIC power-up diagnostics will test the EVIC Button A/D port for either an open circuit, short to power or ground, or a stuck button exists.

SET CONDITION
The Instrument Cluster detects no feedback on the EVIC Switch Sense circuit for 2 seconds.

POSSIBLE CAUSES
- EVIC switch sense circuit open
- EVIC/NAV switch sense return circuit open
- Clock module
- Instrument cluster
