Driver Horizontal Sensor Out of Range High - MHSAPM

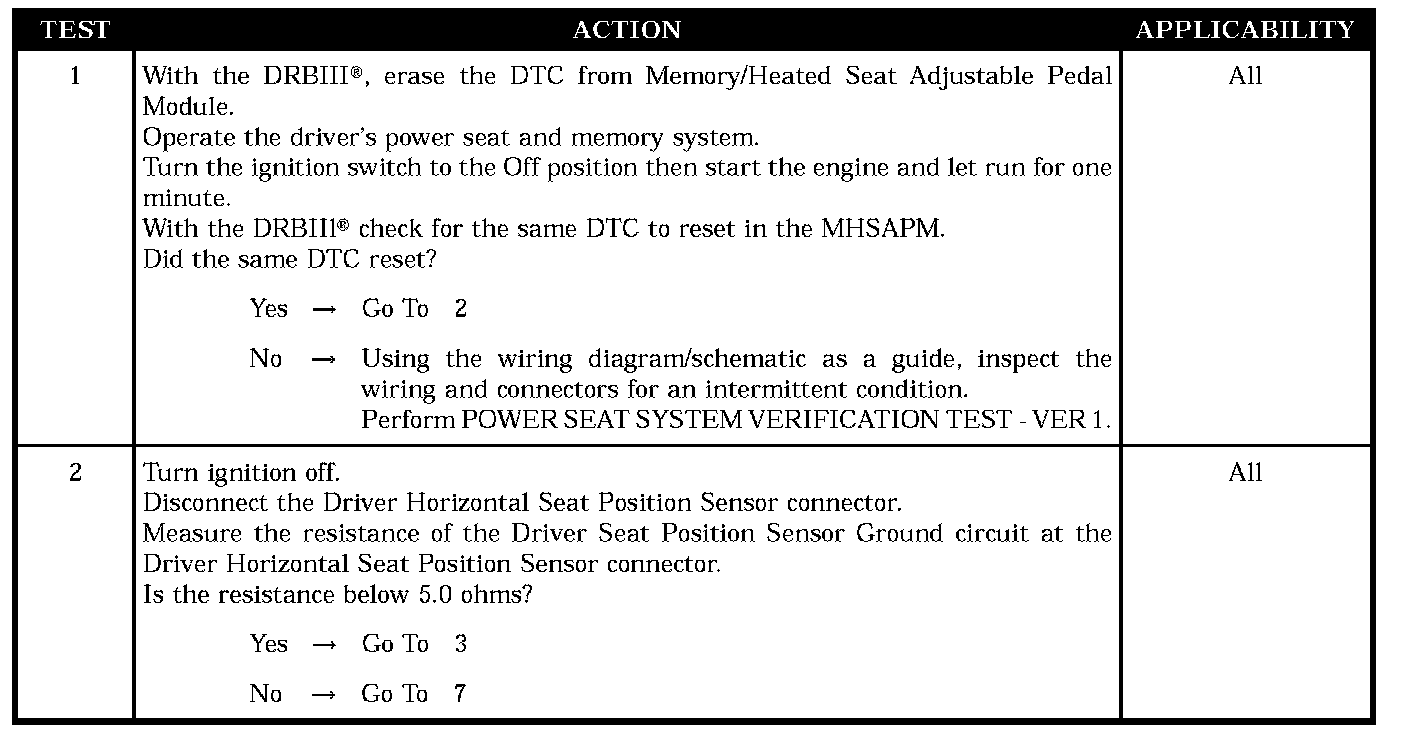

Test 1 - 2:

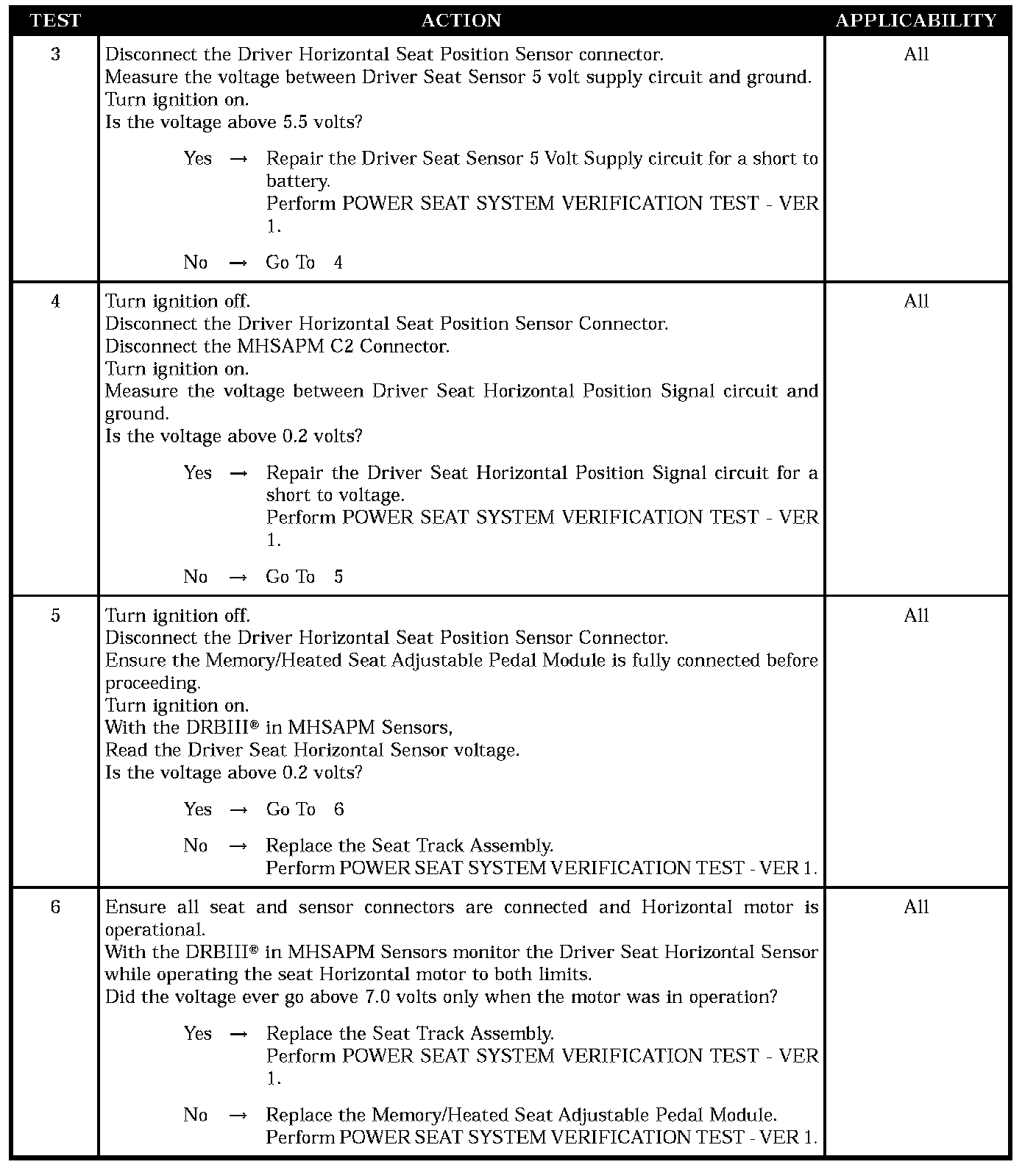

Test 3 - 6:

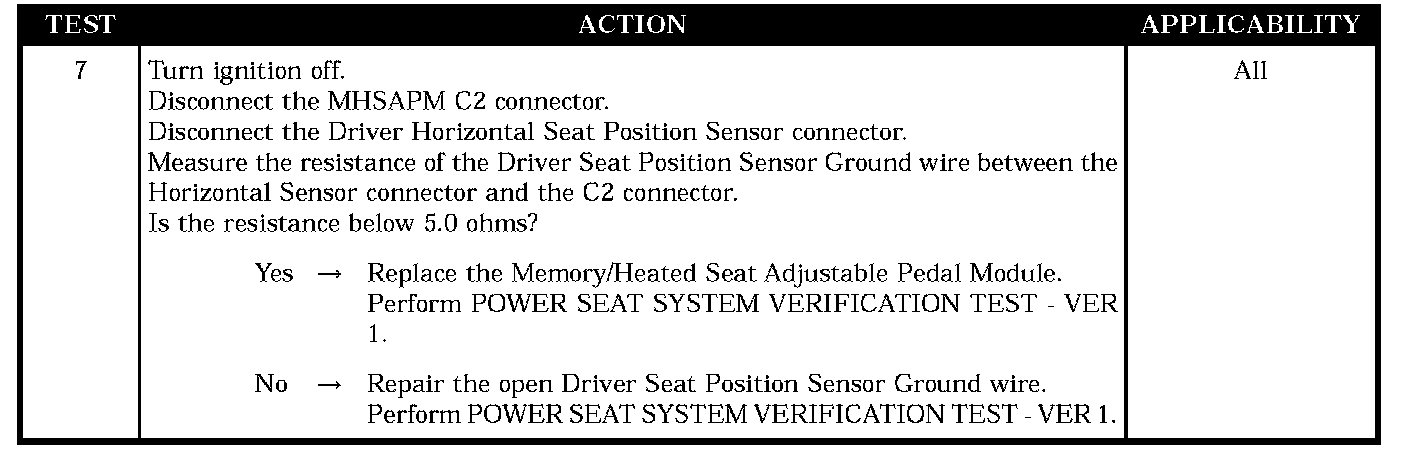

Test 7:

SYMPTOM
DRIVER HORIZONTAL SENSOR OUT OF RANGE HIGH - MHSAPM

WHEN MONITORED
Continuously.

SET CONDITION
This condition is immediately set when the seat motor potentiometer feeds a value higher than the Memory/Heated Seat Adjustable Pedal Module has stored in EEPROM. Code will remain for 50 ignition cycles.

POSSIBLE CAUSES
- Driver seat position sensor ground wire open
- Memory/heated seat adjustable pedal module sensor ground open
- Driver seat sensor 5 volt supply shorted high
- Driver seat horizontal position signal circuit short to voltage
- Driver horizontal seat position sensor high
- Check horizontal sensor short to motor
- Memory/heated seat adjustable pedal module horizontal sensor high
- Stored diagnostic trouble code
