Liftgate Door Ajar Circuit Short to Ground

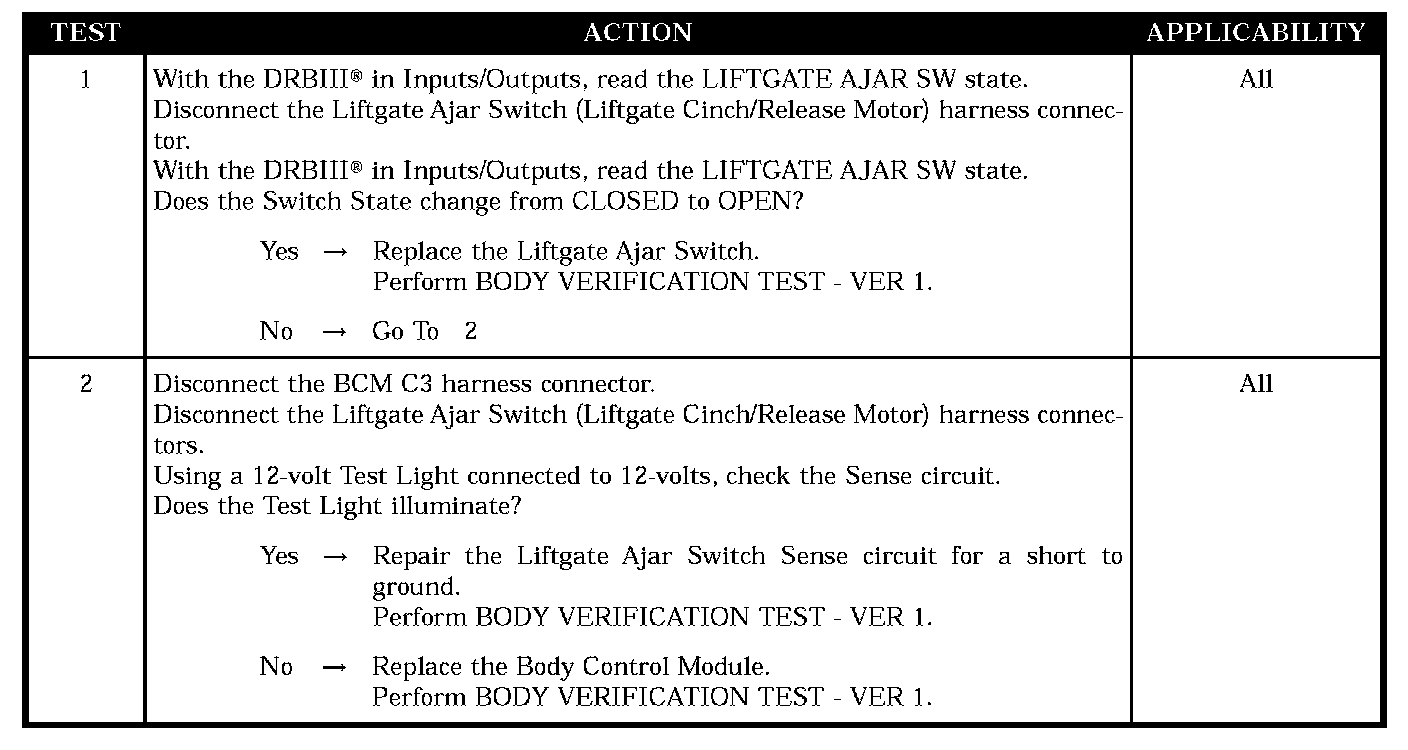

Test 1 - 2:






SYMPTOM
LIFTGATE DOOR AJAR CIRCUIT SHORT TO GROUND

POSSIBLE CAUSES
- Liftgate ajar switch short to ground
- Liftgate ajar switch sense circuit short to ground
- Body control module
