Home >> Chrysler >> 2005 >> Pacifica V6-3.8L VIN L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Tail Lamp

Tail Lamp

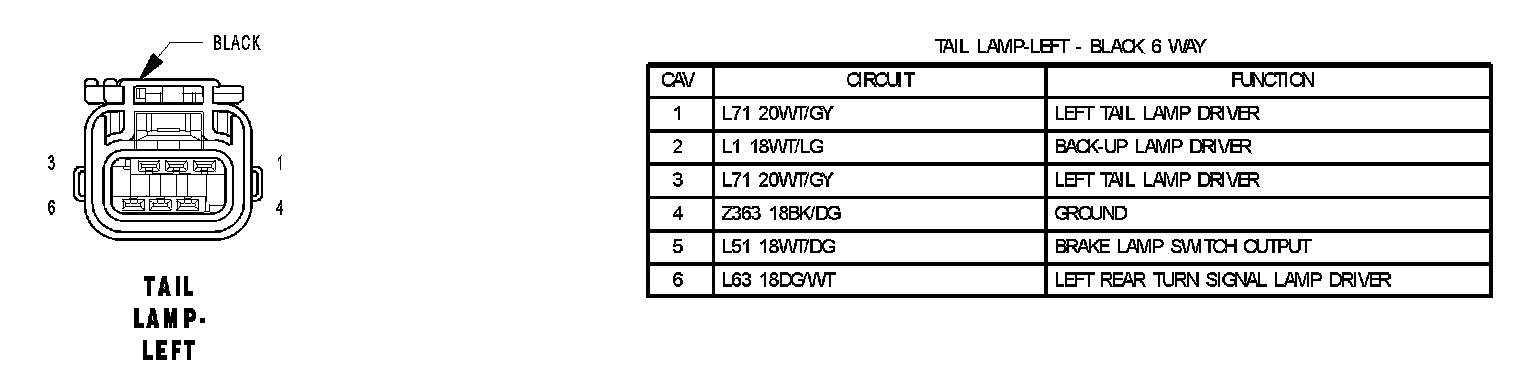

Tail Lamp - Left:

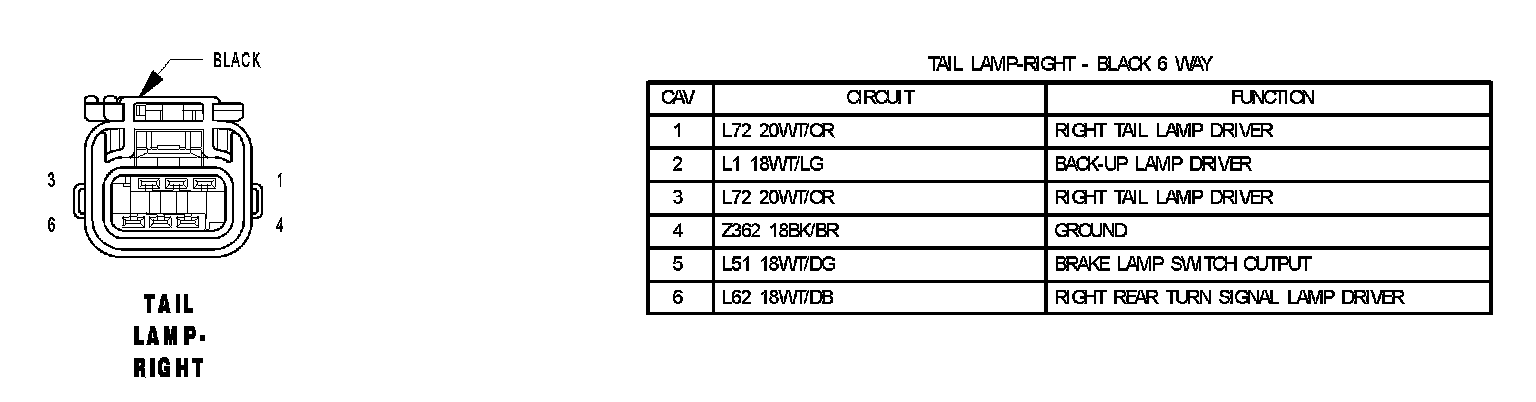

Tail Lamp - Right:
