Heating and Air Conditioning

PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.

8w-42-2 (MTC):

8w-42-3 (MTC):

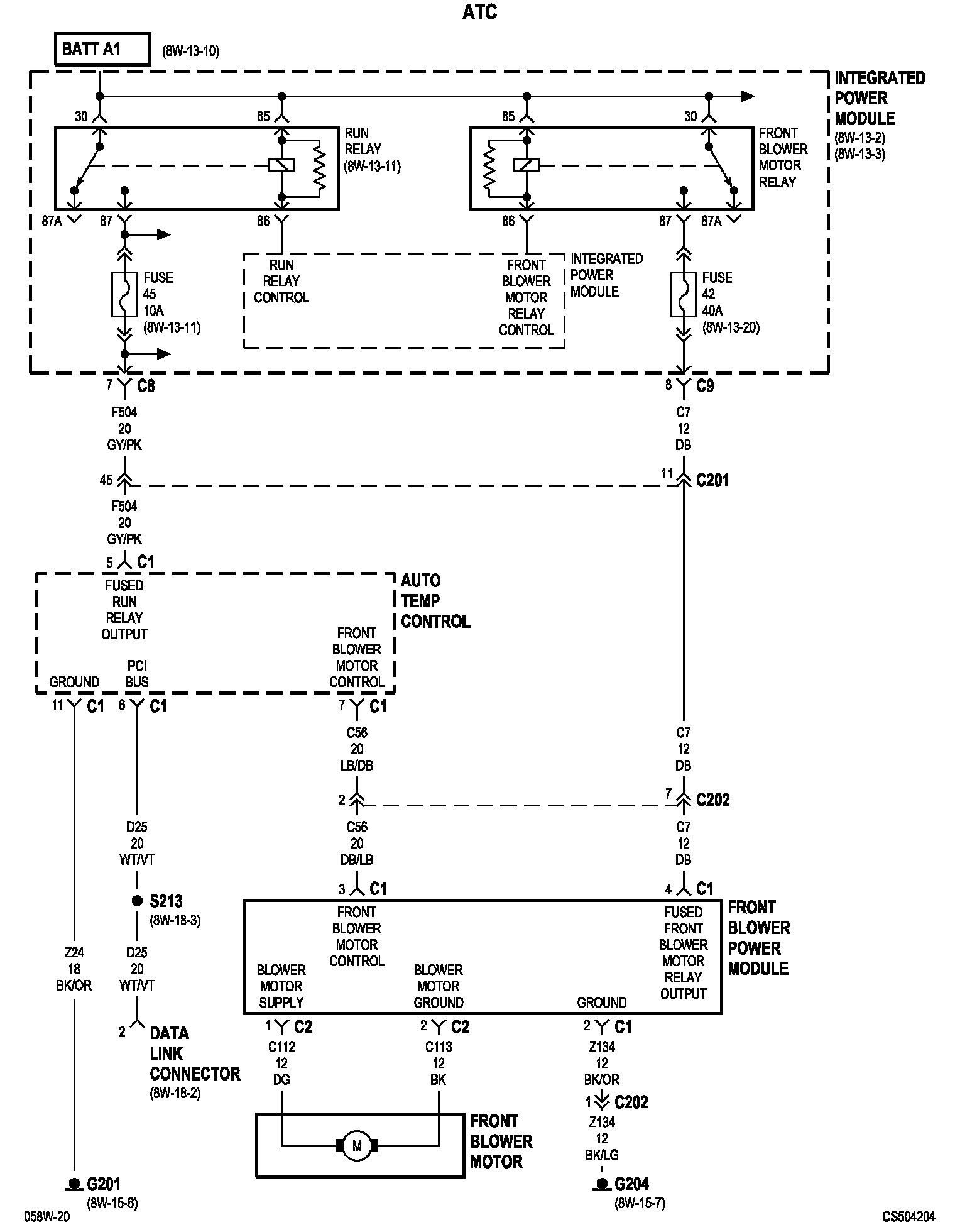

8w-42-4 (ATC):

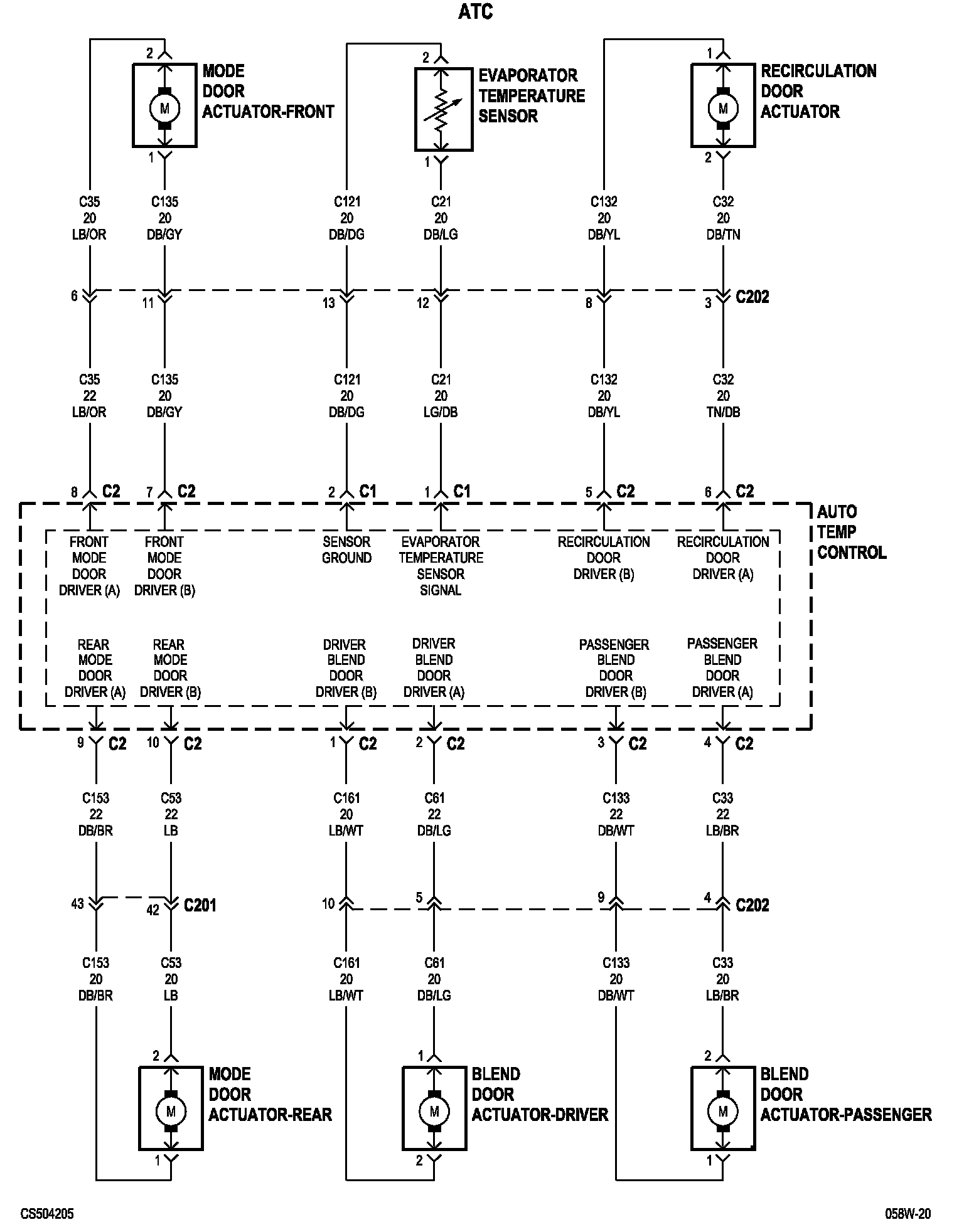

8w-42-5 (ATC):

8w-42-6 (ATC):

8w-42-7 (ATC):

8w-42-8:

8w-42-9 (ATC):

Other Diagrams: Other diagrams referred to by number (i.e. 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams By Number. Diagrams By Number
