Intake Manifold Stripped Thread Repair

STANDARD PROCEDURE - MANIFOLD STRIPPED THREAD REPAIR





The composite upper intake manifold thread bosses, if stripped out, can be repaired by utilizing a repair screw available through Mopar parts. Repair screws are available for the following manifold attached components:
- MAP sensor
- Power steering reservoir
- EGR tube
- Throttle cable bracket

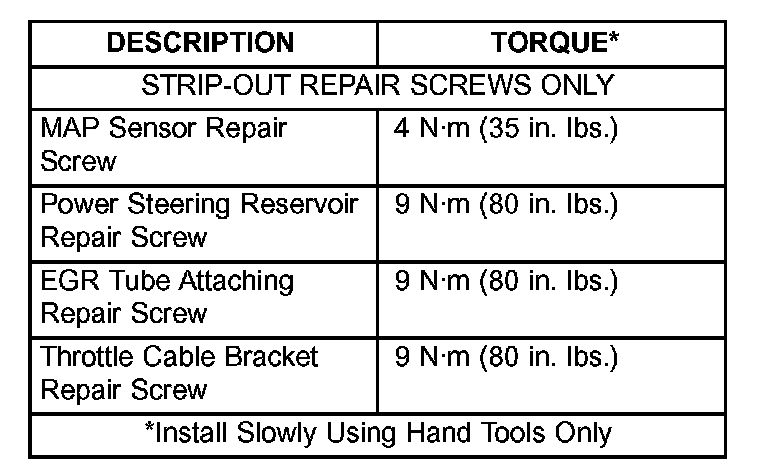

The repair screws require a unique tightening torque specification from the original screw. Refer to the chart for specification.
