Variable Induction Control Solenoid: Service and Repair
SHORT RUNNER VALVE SOLENOIDREMOVAL
1. Disconnect the negative battery cable.

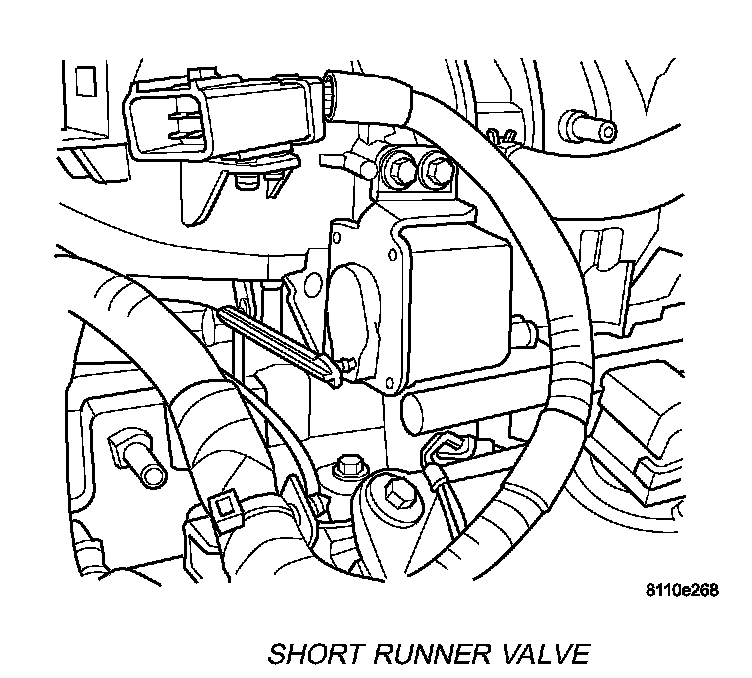

Short Runner Valve:
2. Disconnect the electrical connector from the short runner valve.

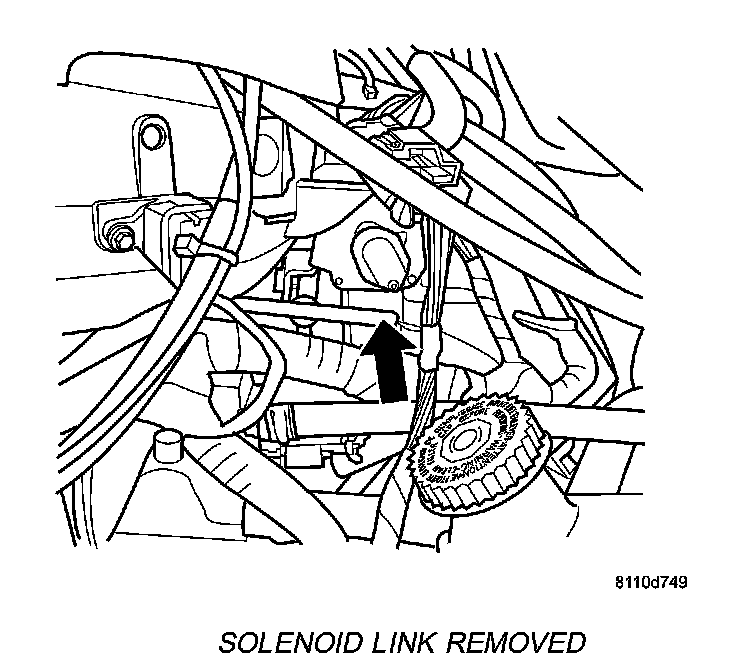

Solenoid Link Removed:
3. Remove the link from short runner valve lever.
4. Remove the 4 bolts.
Short Runner Valve Solenoid Removed:
5. Remove short runner valve.
INSTALLATION
Short Runner Valve Solenoid Removed:
1. Install short runner valve.
2. Install the 4 bolts and tighten.
Solenoid Link Removed:
3. Install the link to short runner valve lever.
Short Runner Valve:
4. Connect the electrical connector to the short runner valve.
5. Connect the negative battery cable.
