Speed Sensor Input

REMOVAL
1. Disconnect battery negative cable.





2. Disconnect input speed sensor connector (Fig. 385).

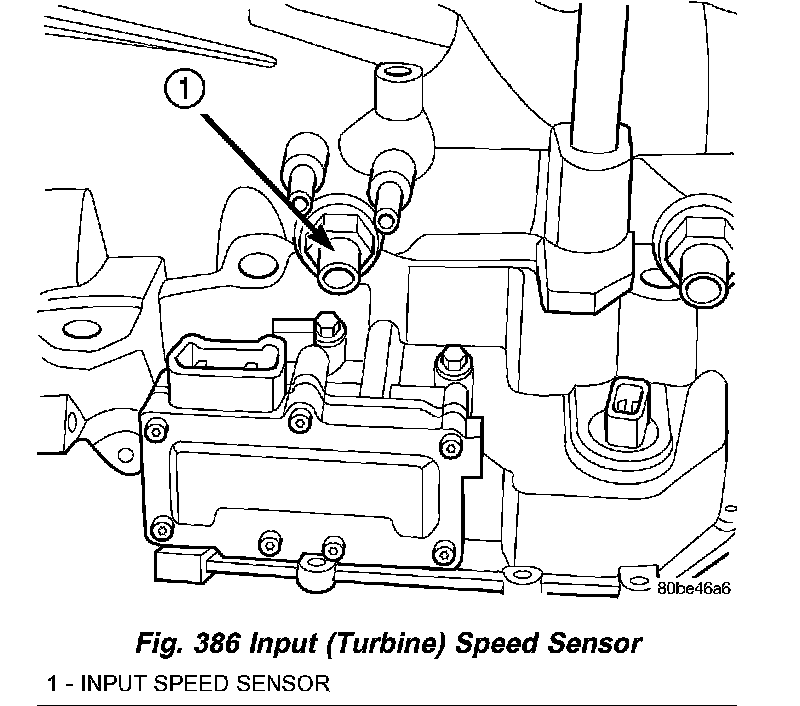

3. Unscrew and remove input speed sensor (Fig. 386).

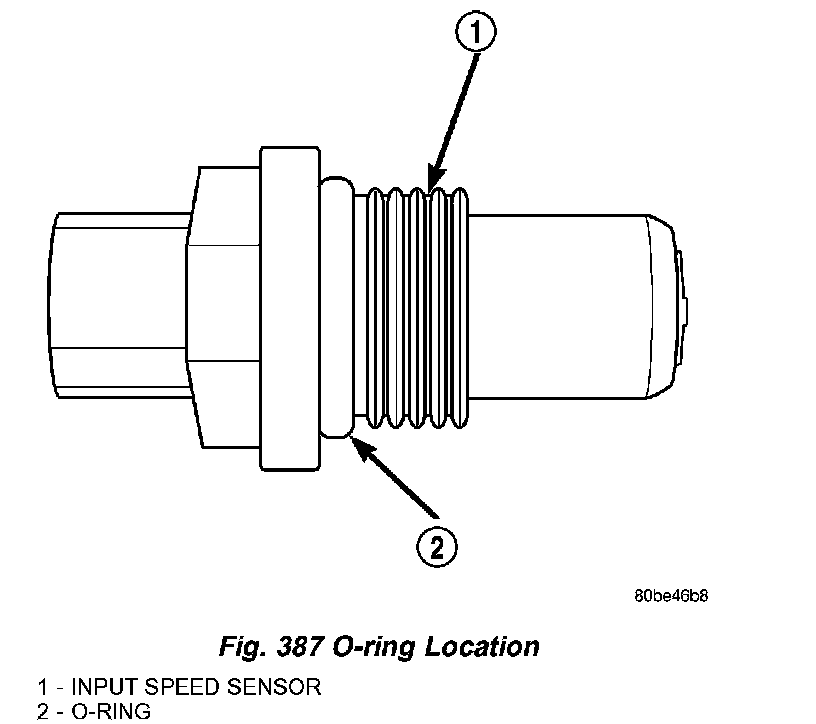

4. Inspect speed sensor O-ring (Fig. 387) and replace if necessary.

INSTALLATION
1. Verify O-ring is installed into position (Fig. 387).
2. Install and tighten input speed sensor to 27 Nm (20 ft. lbs.) (Fig. 386).
3. Connect speed sensor connector (Fig. 385).
4. Connect battery negative cable.
