Radio/Stereo: Service and Repair

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected.

REMOVAL




1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel center bezel.
3. Remove mounting fasteners.

CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.

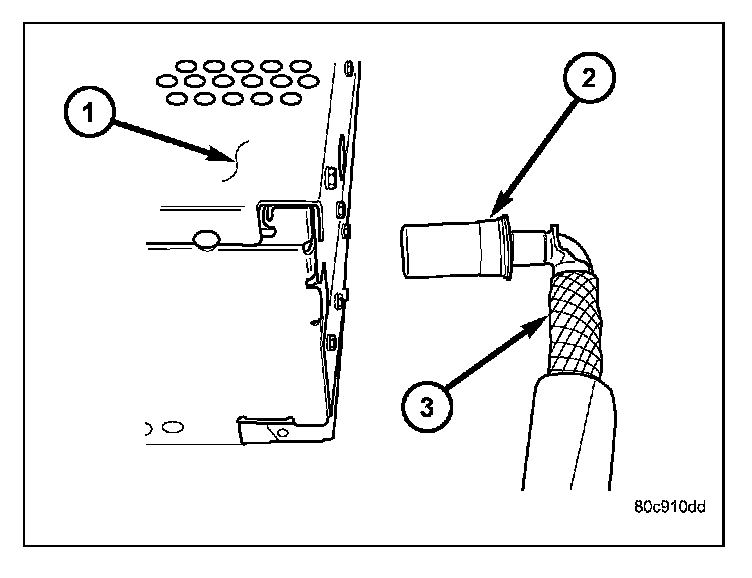

4. Disconnect the antenna cable (3) by pulling the locking antenna connector (2) away from the radio (1).
5. Disconnect the electrical harness connector and remove radio.

INSTALLATION




1. Connect the electrical harness and antenna cable (3) to radio (1).




2. Position radio and install mounting fasteners.
3. Install instrument panel center bezel.
4. Connect battery negative cable.
