Steering - Steering Column Power Tilt Inoperable: Overview

NUMBER: 19-004-05

GROUP: Steering

DATE: June 3, 2005

THIS BULLETIN IS BEING PROVIDED IN ADVANCE. DO NOT ORDER PARTS RELATED TO THIS BULLETIN UNTIL JUNE 27, 2005. THE StarSCAN(R) FLASH FILES FOR THIS BULLETIN ARE AVAILABLE VIA THE INTERNET.

THE FLASH FILE WILL BE AVAILABLE ON THE NEXT StarSCAN(R) UPDATE CD RECEIVED AFTER CD 5.04.

SUBJECT:
Steering Column Power Tilt Inoperable

OVERVIEW:
This bulletin involves flashing the Memory Seat Module (MSMD), replacing the steering column power tilt coupling and two steering column support brackets.

MODELS:

2005 - 2006 (LX) 300C

NOTE:
This bulletin applies to vehicle equipped with a power tilt and telescoping steering column (sales code SUB).

NOTE:
The flash portion of this bulletin should be performed on all applicable vehicles built prior to June 15, 2005 (MDH 0615XX).

SYMPTOM/CONDITION:

Steering column will not tilt up or down.

DIAGNOSIS:

Attempt to tilt the steering column by moving the tilt/telescope stalk switch on the left side of the steering column up and/or down, if the column does not move perform the Repair Procedure.

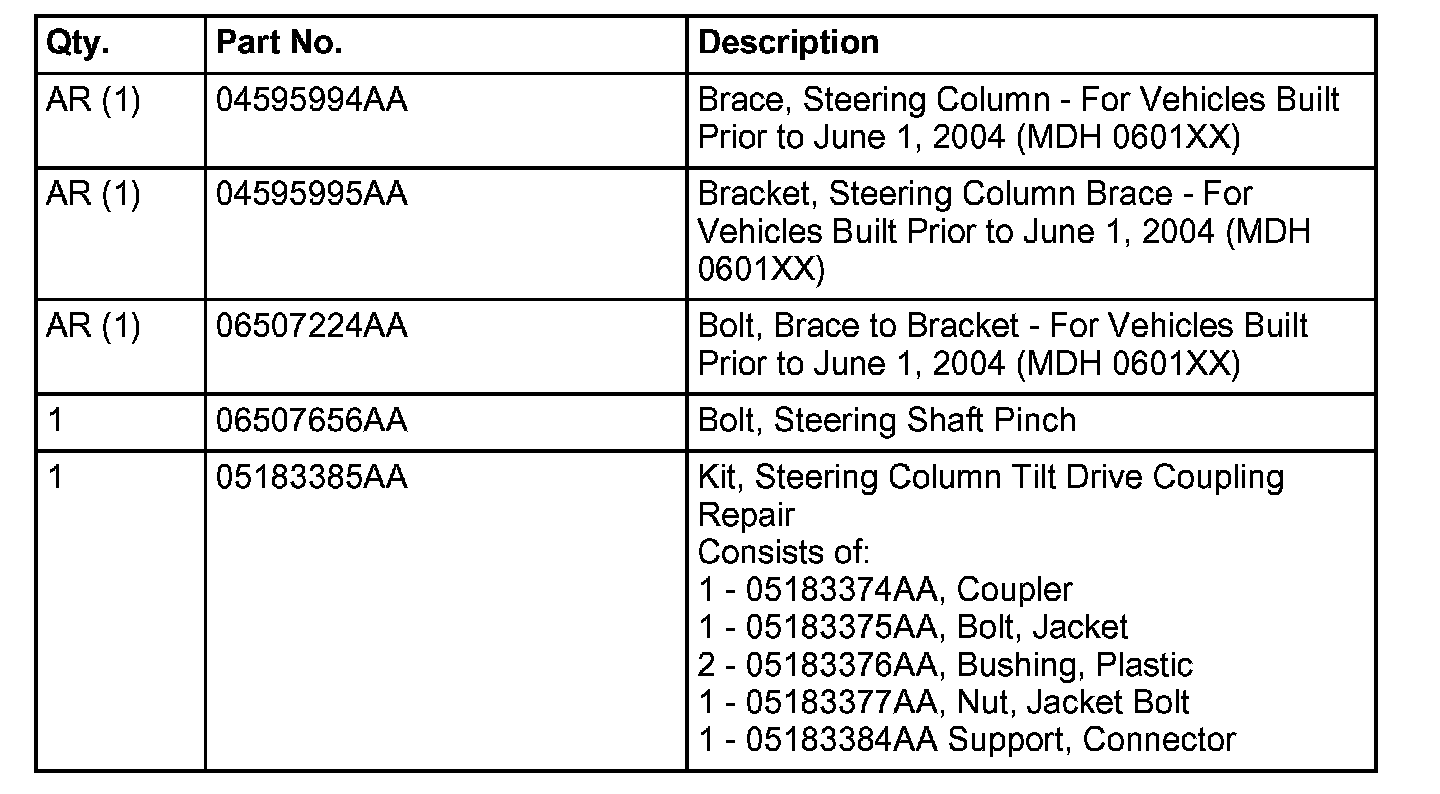

PARTS REQUIRED:





SPECIAL TOOLS/EQUIPMENT REQUIRED:

POLICY:
Reimbursable within the provisions of the warranty.

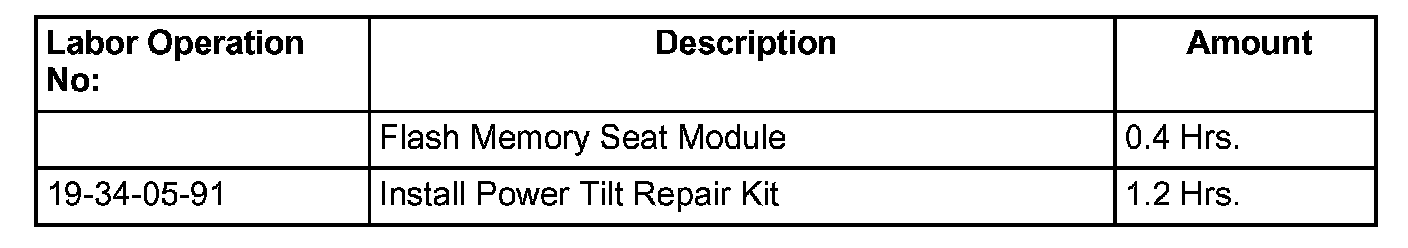

TIME ALLOWANCE:





FAILURE CODE:

Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
