Antenna
>>
Antenna, Radio
>>
System Diagram
System Diagram

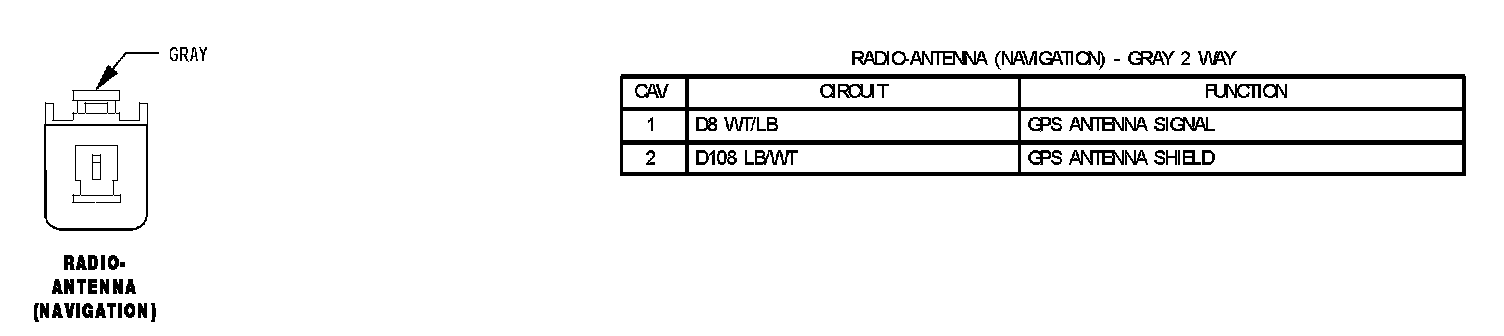

Radio Antenna (Navigation):

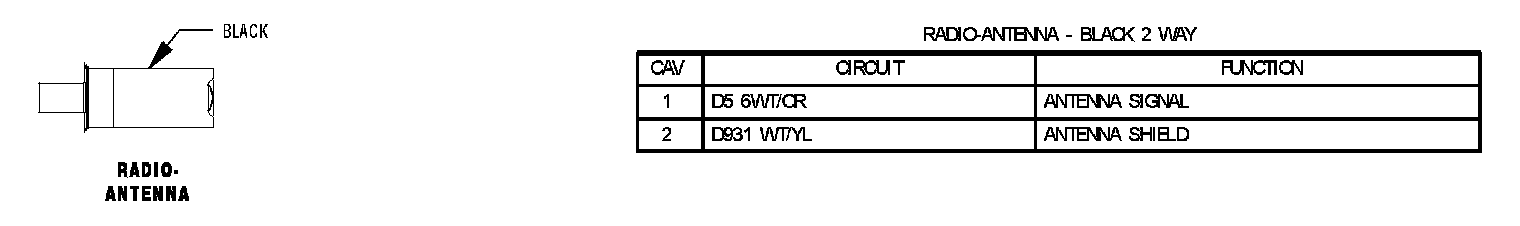

Radio Antenna:
