Home
>>
Chrysler
>>
2006
>>
300 V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Driver/Vehicle Information Display
Driver/Vehicle Information Display

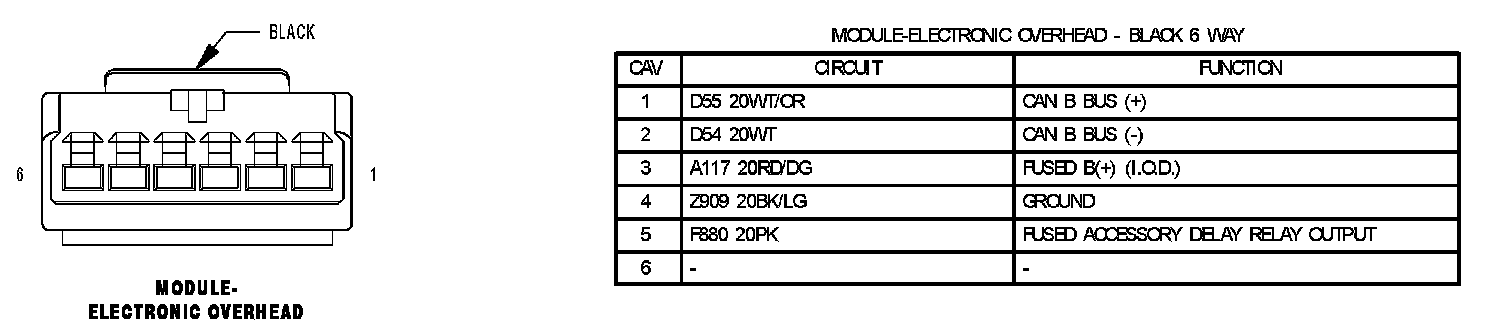

Module-Electronic Overhead:
