Impact Sensor
Impact Sensor
Sensor Front Impact Left:

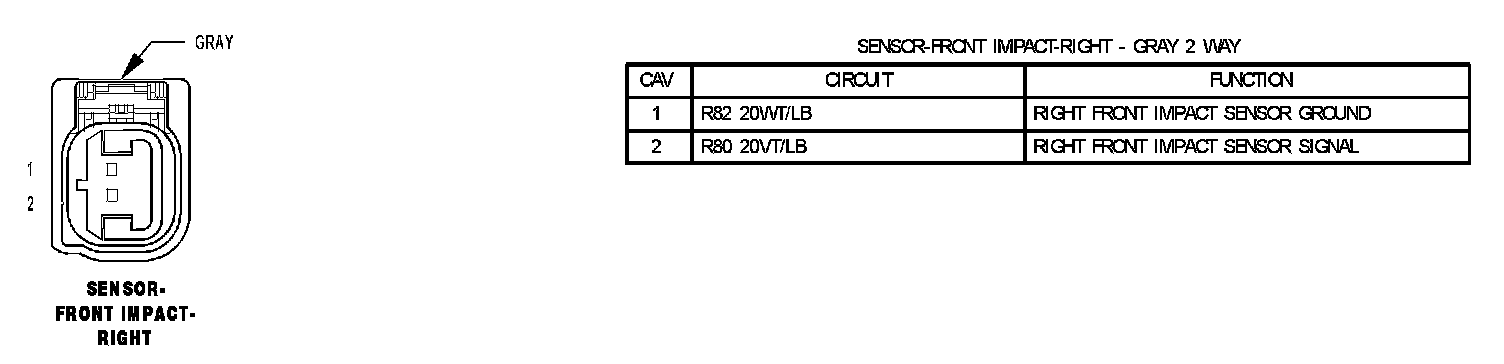

Sensor Front Impact Right:
Sensor Side Impact - Left 1:

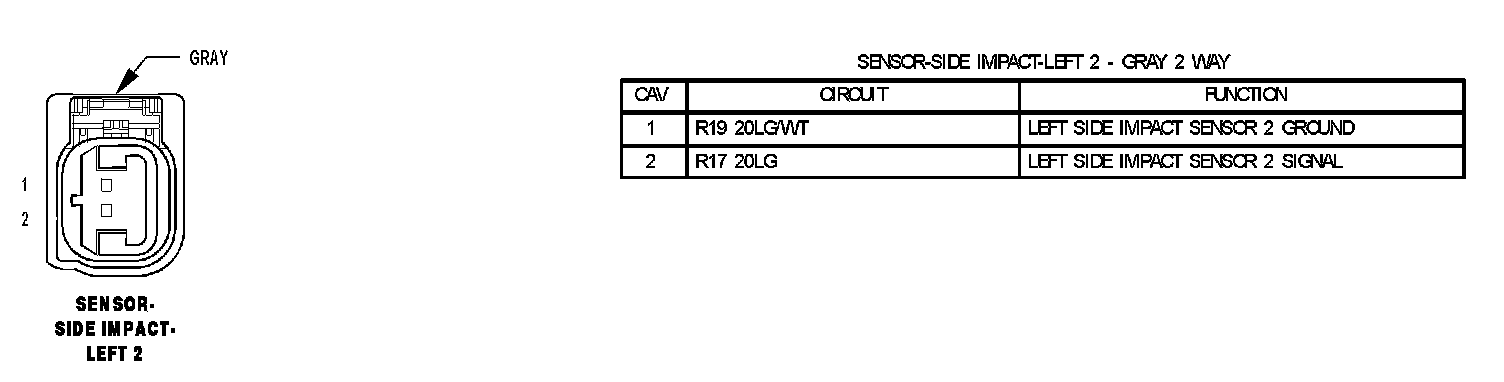

Sensor Side Impact - Left 2:

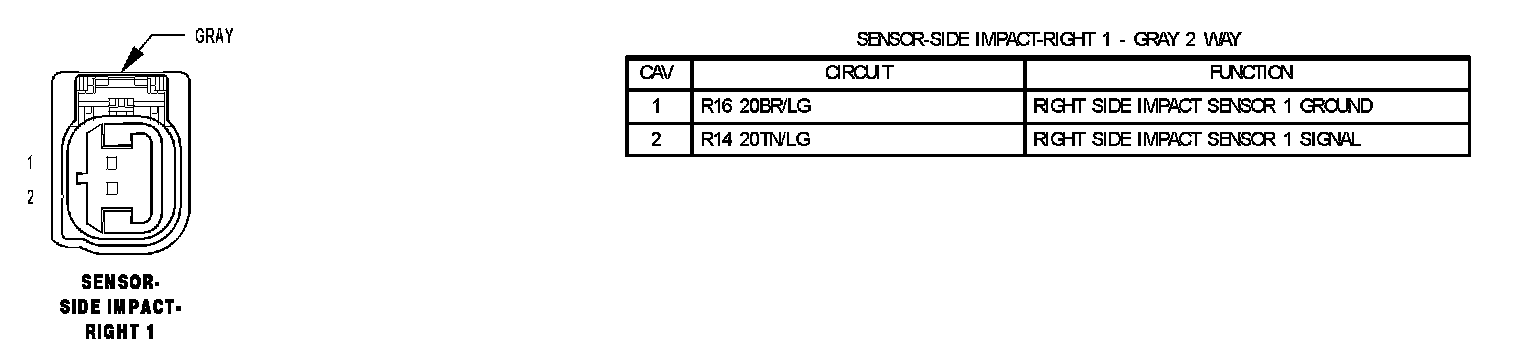

Sensor Side Impact - Right 1:

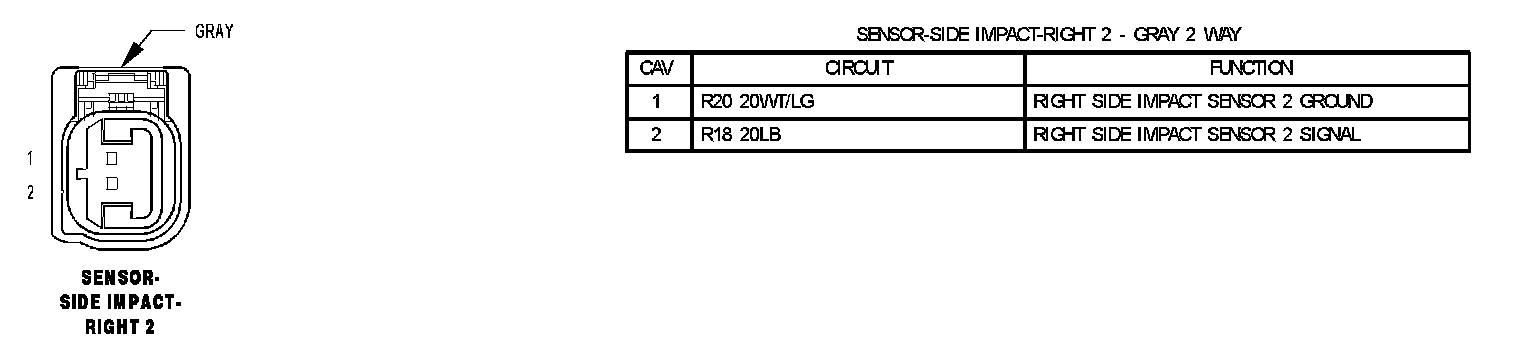

Sensor Side Impact - Right 2:
