Cluster Lens

REMOVAL




1. Disconnect and isolate the battery negative cable.
2.

WARNING: WAIT TWO MINUTES FOR THE AIRBAG SYSTEM RESERVE CAPACITOR TO DISCHARGE BEFORE BEGINNING ANY AIRBAG SYSTEM OR COMPONENT SERVICE. FAILURE TO DO SO MAY RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT, PERSONAL INJURY OR DEATH.

3. Remove the instrument cluster bezel.
4. Remove the cluster lens retaining screws.

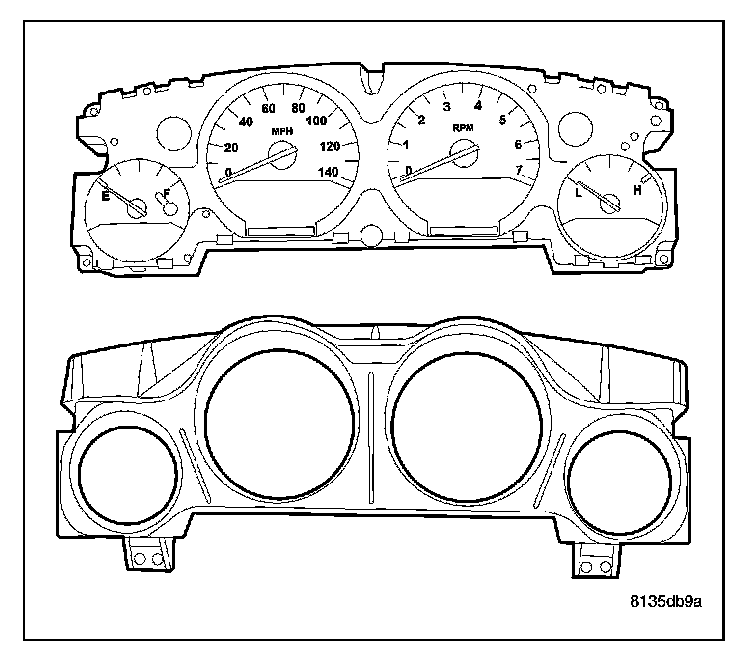

5. Separate the cluster lens from the cluster and remove from Instrument panel.

INSTALLATION

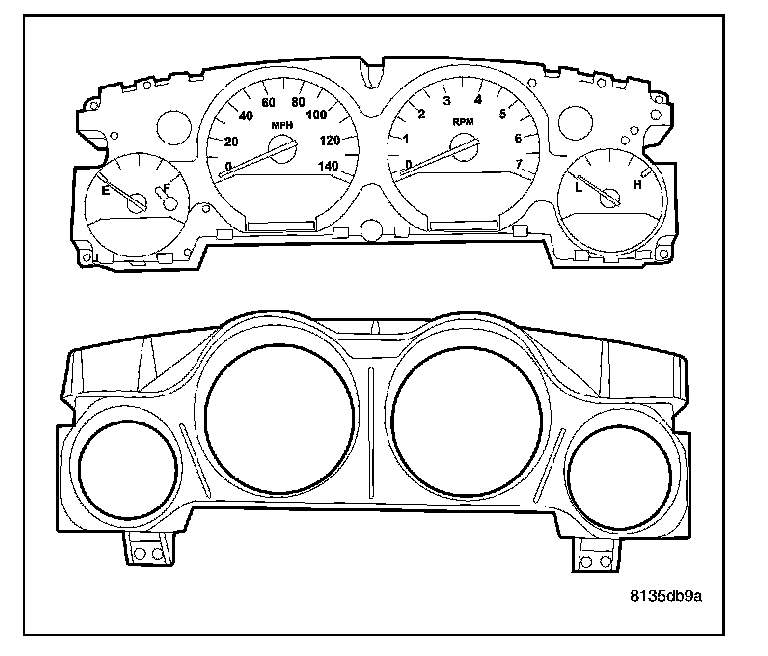

1. Place cluster lens into position on cluster.
2. Install the cluster lens screws.
3. Install the cluster bezel.
4. Connect the battery negative cable.
