Halogen Headlamp

HALOGEN HEADLAMP

REMOVAL

NOTE: If replacing the left low or high beam headlamp, the air box has to be removed first.




1. Disconnect and isolate the battery negative cable.
2. Disconnect the lamp electrical connector.

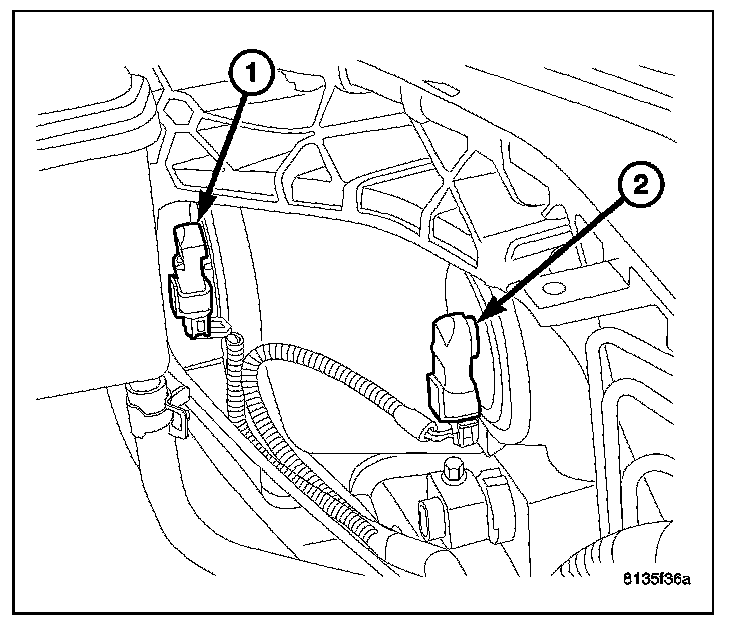

3. Twist lamp (1 and 2) out of headlamp housing.

INSTALLATION

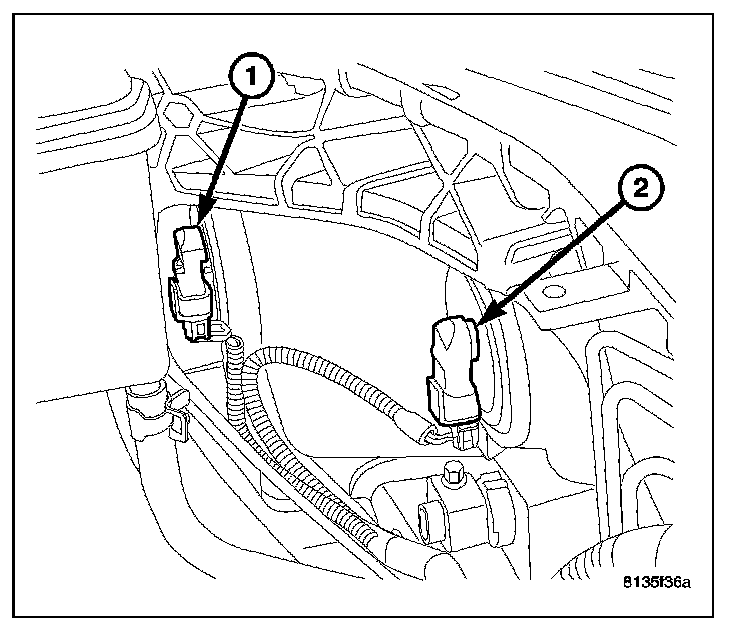

1. Twist lamp (1 or 2) into headlamp housing clockwise.
2. Connect the lamp electrical connector.
3. Connect the battery negative cable.

NOTE: If replacing the left low or high beam headlamp, the air box has to be reinstalled.
