Headlamp Unit

HEADLAMP UNIT

REMOVAL




1. Disconnect and isolate the battery negative cable.
2. Open hood and remove the two upper headlamp unit mounting screws.

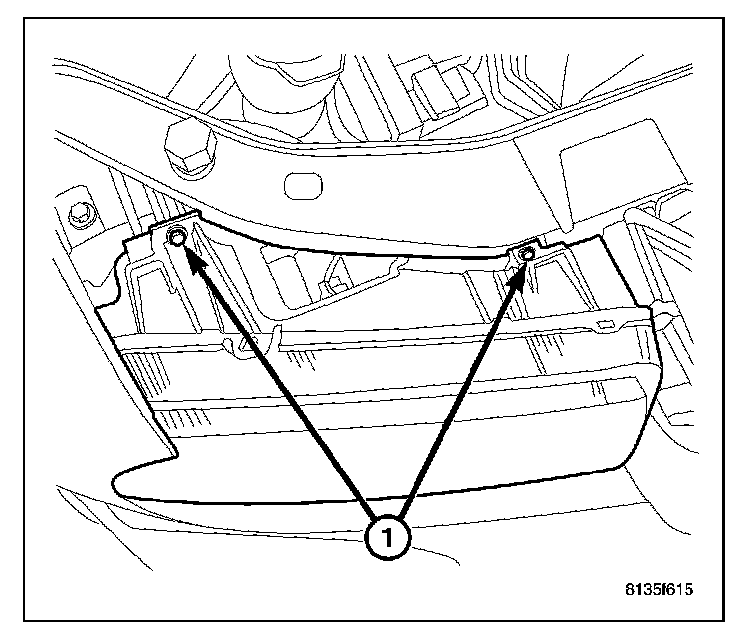

3. The two upper retaining screws (1) are located just in front of the upper radiator cross-member.

NOTE: It may be necessary to loosen the side of the fascia to access the lower headlamp unit retaining screw.




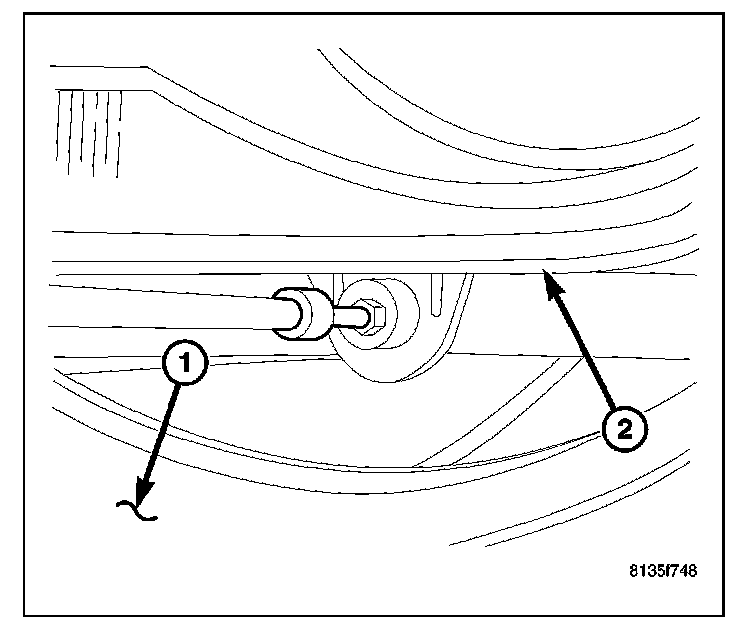

4. Remove the one lower headlamp unit retaining screw.




5. Disconnect the electrical connectors.

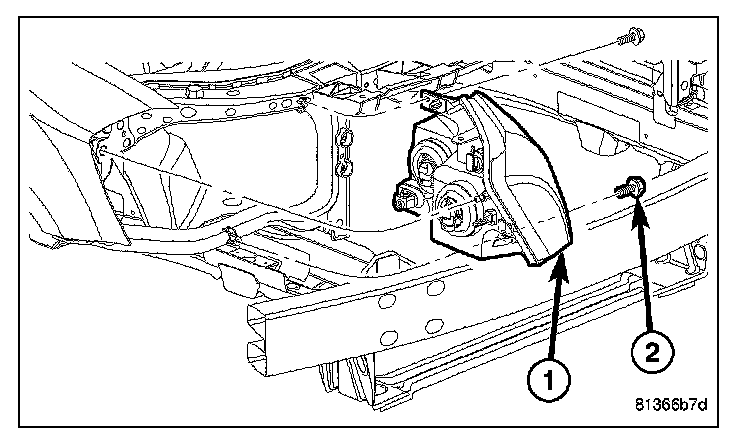

6. Separate headlamp unit from vehicle.

INSTALLATION

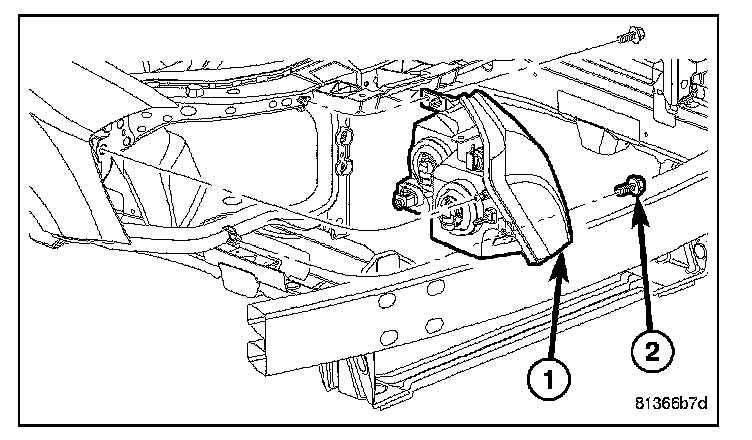

1. Position the headlamp unit in the opening in the headlamp mounting cross-member.
2. Connect the electrical connector.




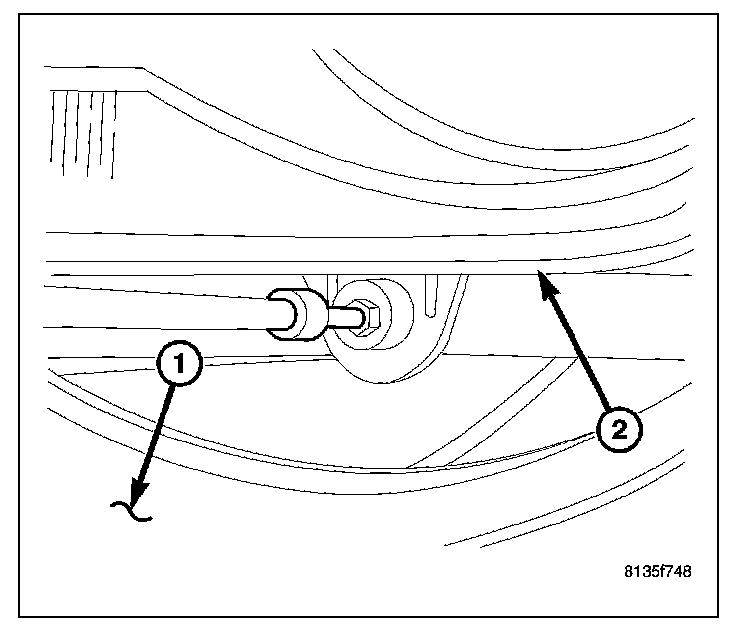

3. Install the one lower headlamp unit retaining screw.

NOTE: If the fascia was loosened, reattach it.

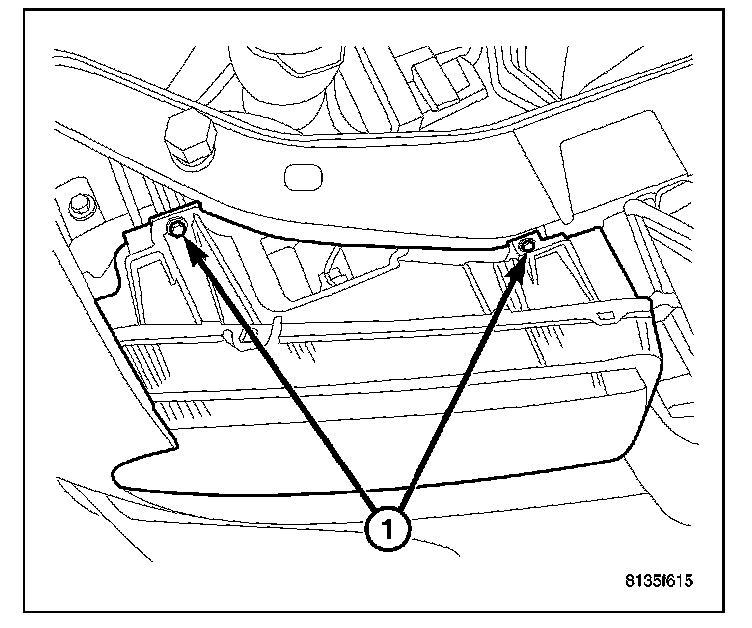

4. Install the two upper retaining screws (1).
5. Connect the battery negative cable.
