Camshaft Position Sensor: Service and Repair

SENSOR-CAMSHAFT POSITION

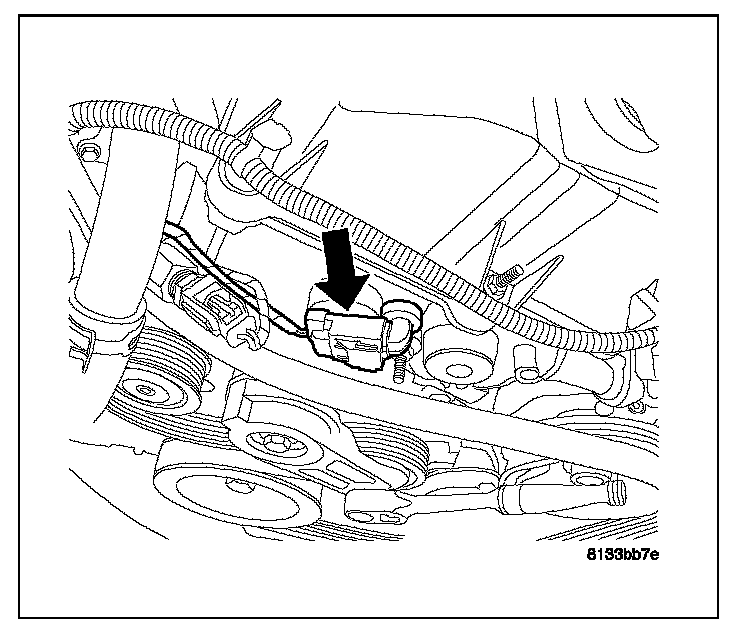

REMOVAL




1. Disconnect negative battery cable.
2. Unlock and disconnect electrical connector.




3. Remove mounting bolt.
4. Remove sensor.

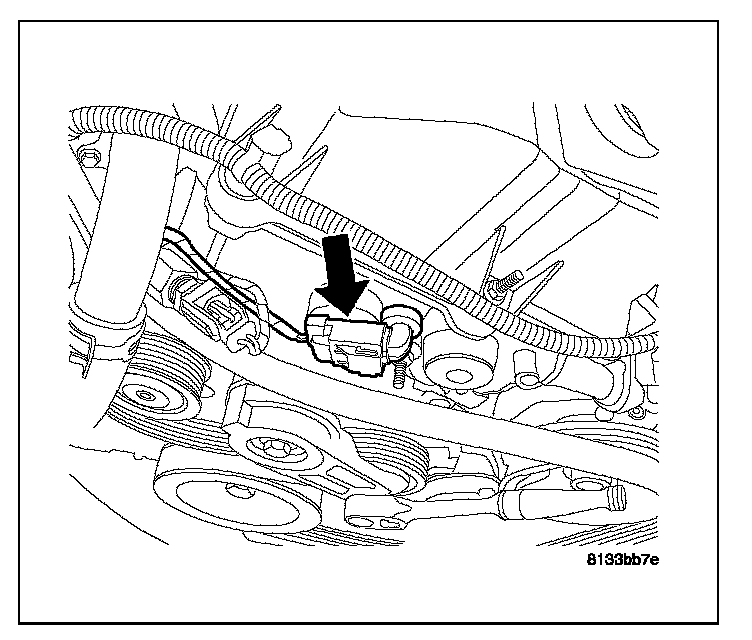

INSTALLATION




1. Install sensor.
2. Install mounting bolt.
3. Tighten bolt to 12 N.m (105 in. lbs.).




4. Connect electrical connector and lock.
5. Connect negative battery cable.
