Connector Views

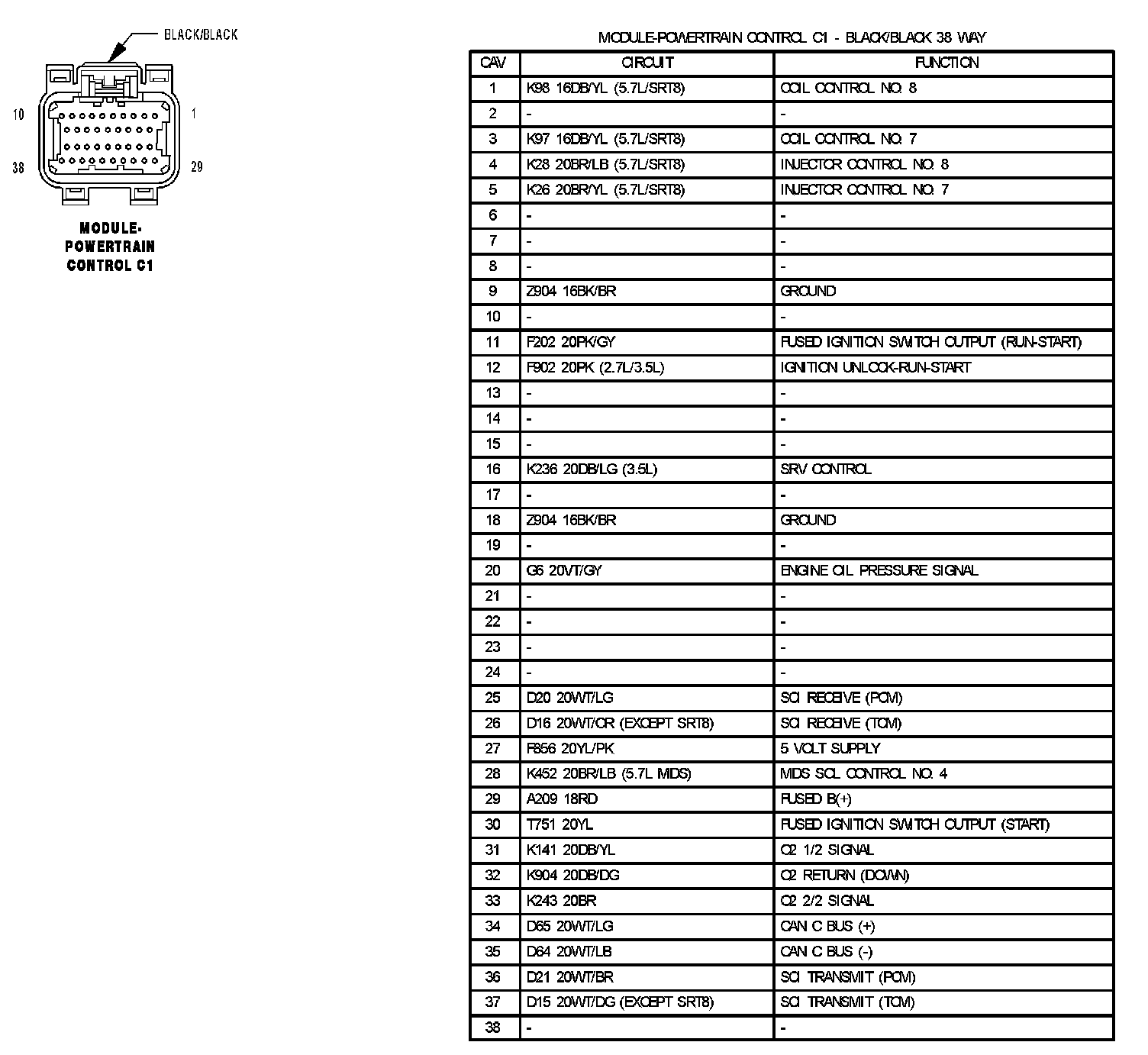

Module Powertrain Control C1:



Module Powertrain Control C1:



Module Powertrain Control C2:

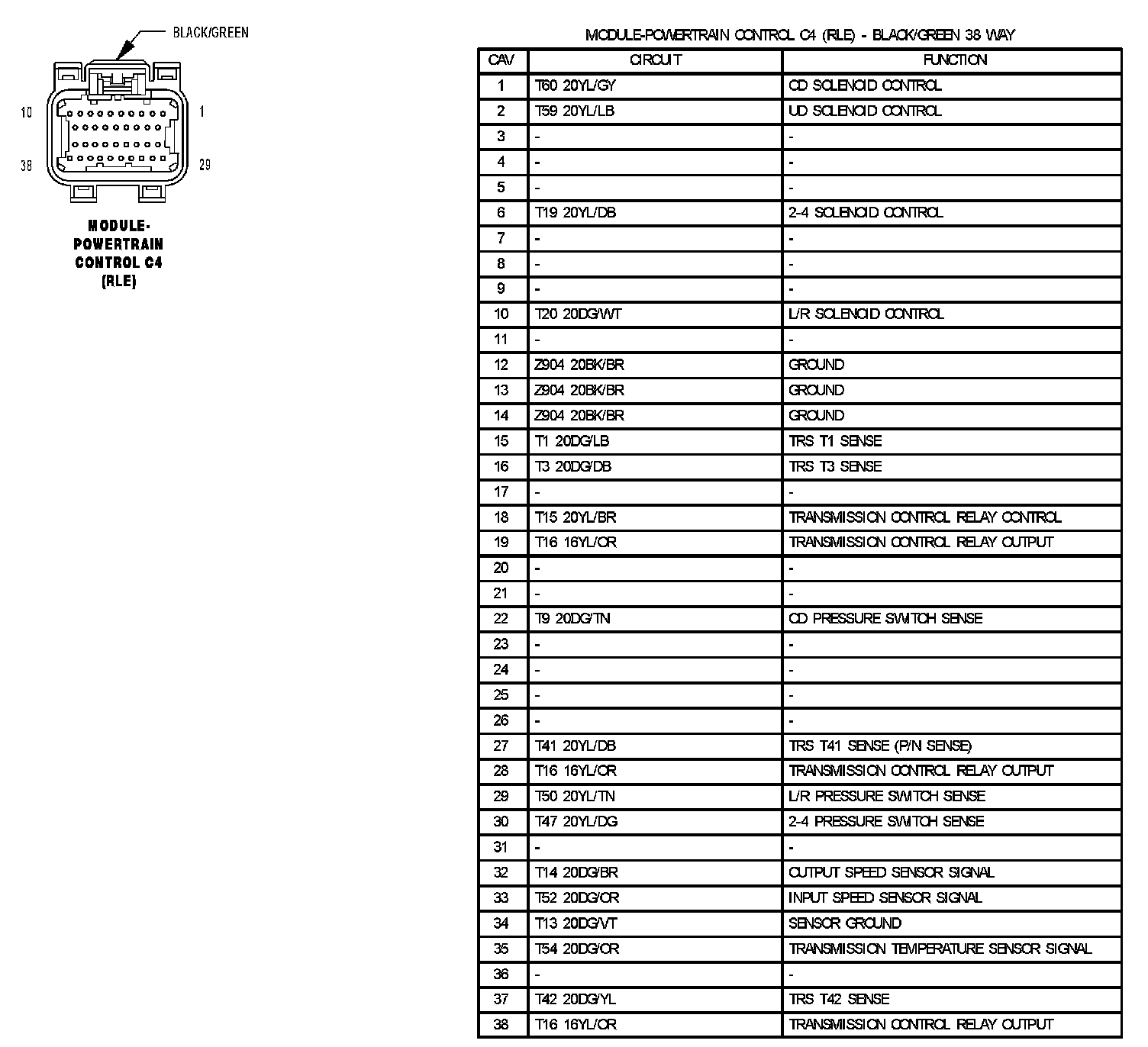

Module Powertrain Control C4 (RLE):
