Home >> Chrysler >> 2006 >> 300 V6-2.7L VIN R >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Door Lock Switch >> Locations

Power Door Lock Switch: Locations

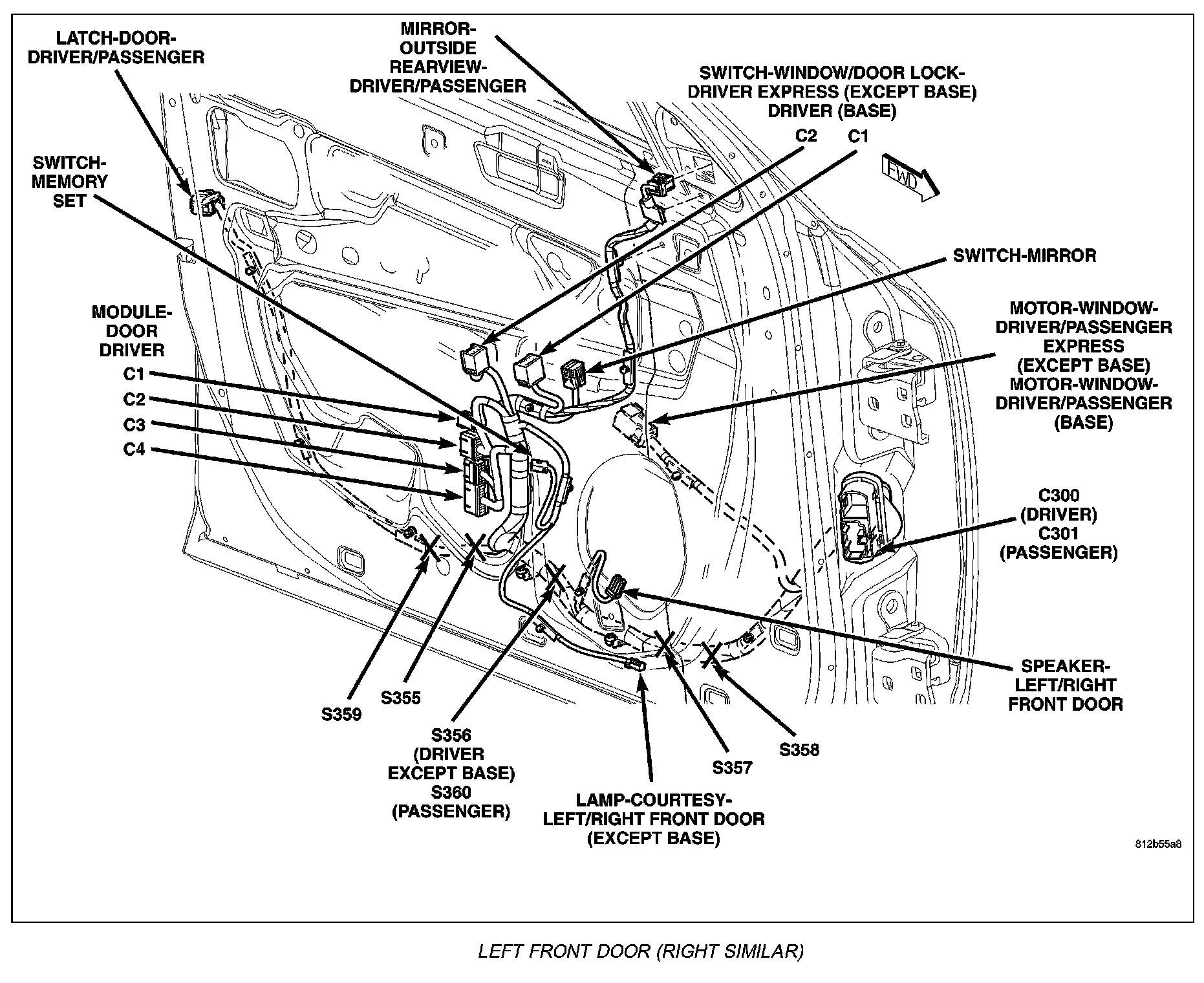

Left Front Door (Right Similar):

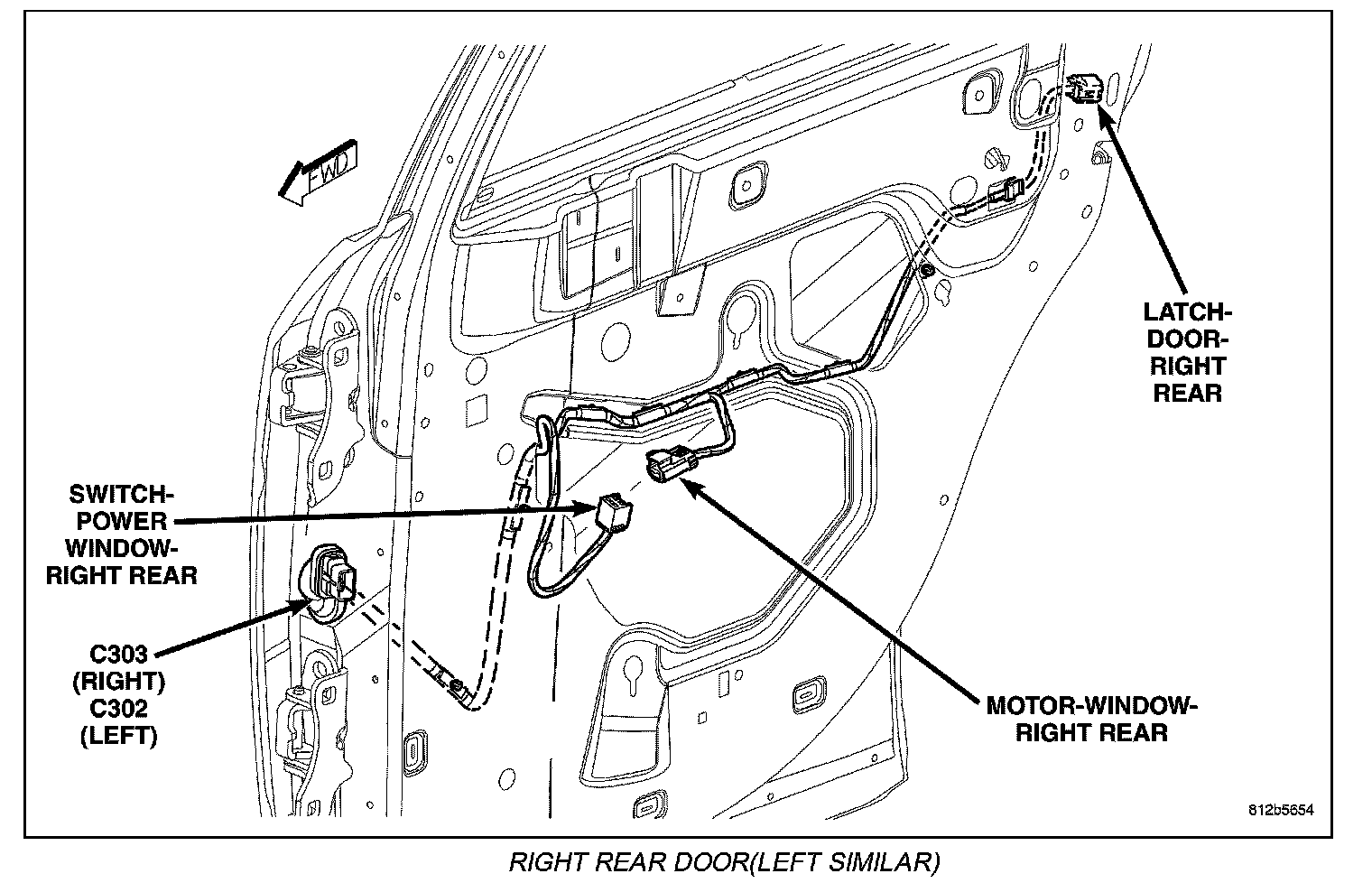

Right Rear Door (Left Similar):
