Power Door Lock Switch: Service and Repair

SWITCH-WINDOW/DOOR LOCK

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected.

REMOVAL




1. Disconnect and isolate the battery negative cable.
2. Remove the door trim panel.

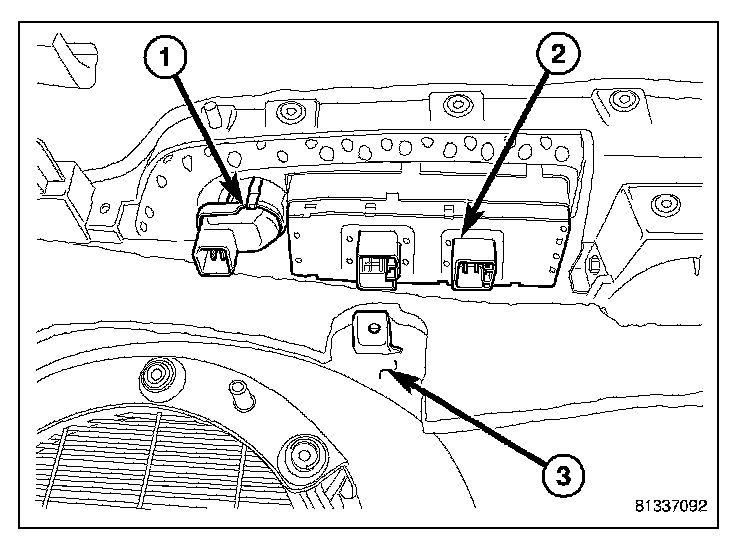

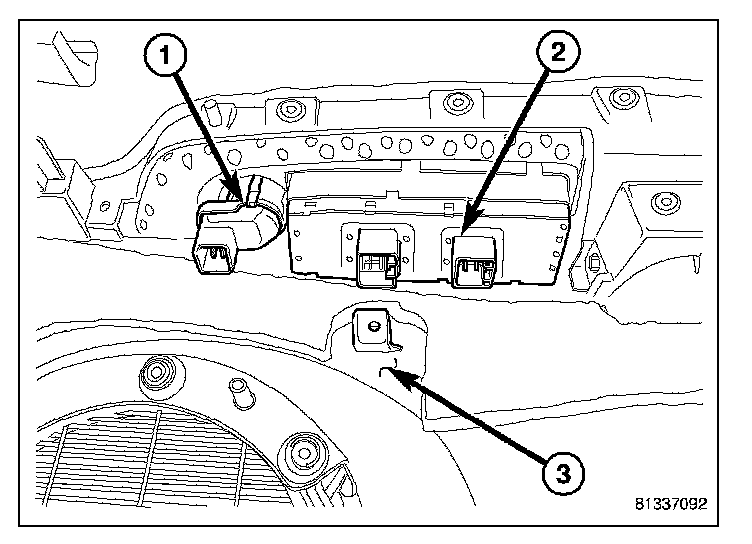

3. Using a flat bladed tool, remove the window/lock switch (2) from the door trim panel.

INSTALLATION




1. Install window/lock switch (2) to door trim panel and snap into place.
2. Install door trim panel.
3. Connect battery negative cable.
