Overhaul (Bearing-Differential Case)

BEARING-DIFFERENTIAL CASE
REMOVAL





1. Remove differential assembly from axle.

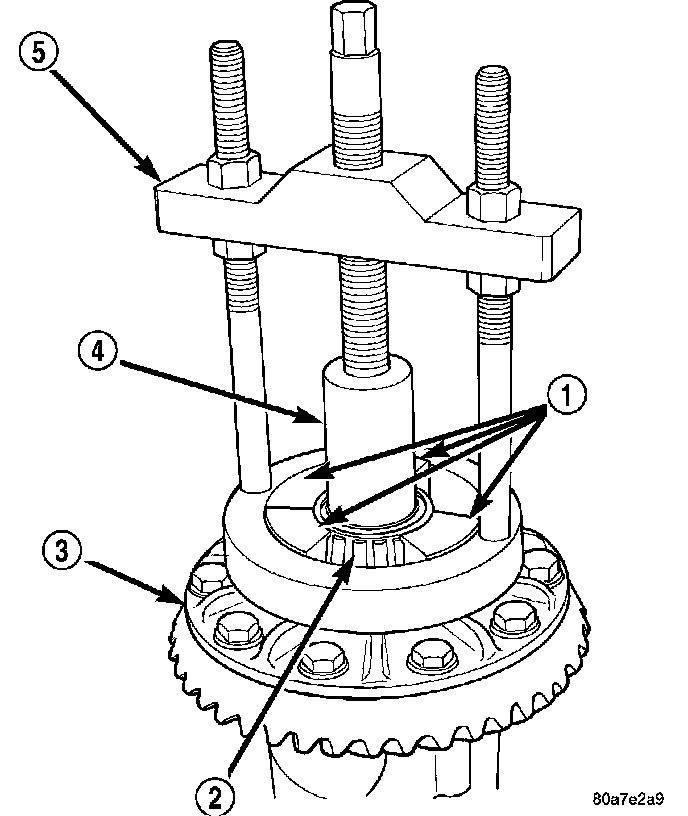

2. Remove bearings (2) from the differential case (3) with Puller/Press C-293-PA (5), Adapters C-293-37 (1) and Plug SP-3289 (4).

INSTALLATION

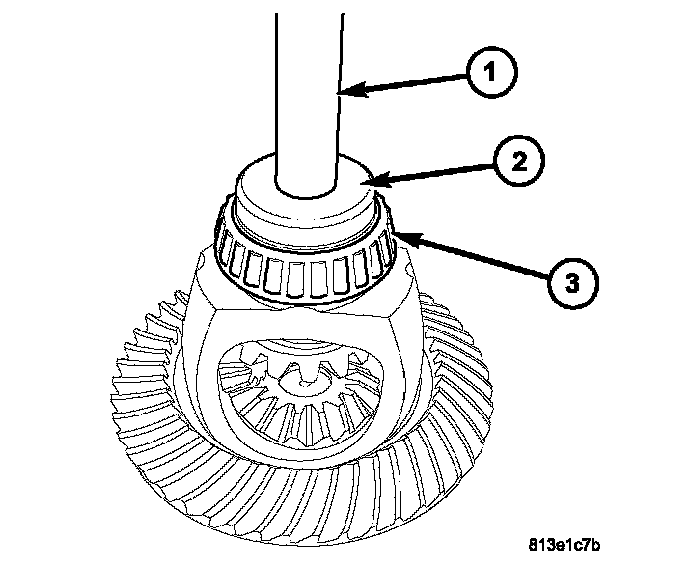

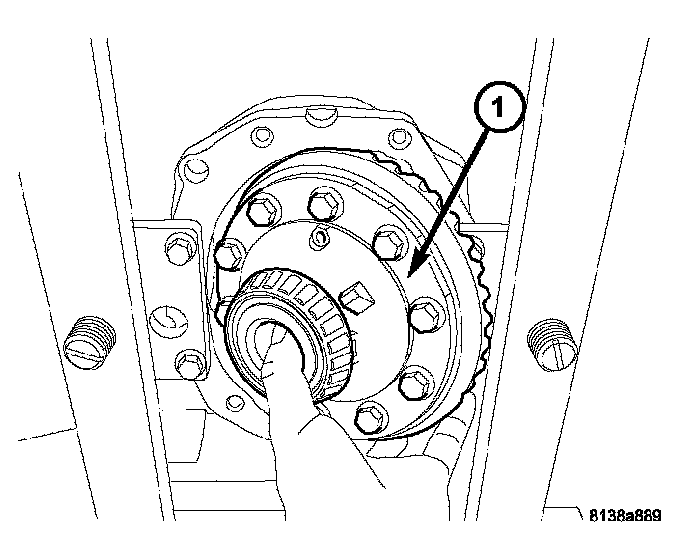

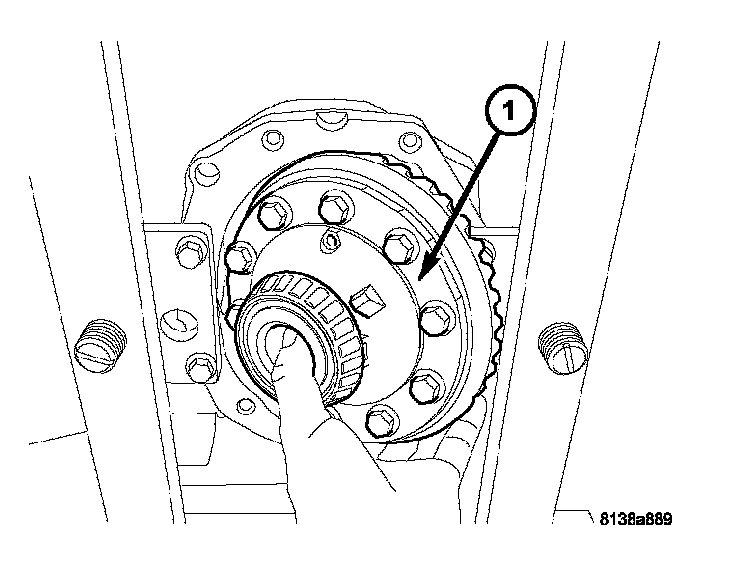

1. Using Tool 9523 and Handle C-4171, press differential side bearings onto differential case.





2. Install differential and reassemble axle assembly
